‘Drop-T’ 3-Way Latch System

The 3-way ‘Drop-T’ provides a complete latching system for the largest doors. Handle. lock, latch and flush recess pan form a self contained unit needing only a simple cut-out. Rods attached on site and adjustable for either LH or RH movement. Suits drop-down hatches, truck toolboxes and other large enclosures.
9/01561
9/01561
9/01561
9/01561
9/01561/01
9/01561/01
9/01561/01
9/01561/01
9/01562
9/01562
9/01562
9/01562
9/01562/01
9/01562/01
9/01562/01
9/01562/01
9/01567
9/01567
9/01567
9/01567
9/01567/01
9/01567/01
9/01567/01
9/01567/01
9/01568
9/01568
9/01568
9/01568

Ordering Code

9/01561 3-way Drop-T set, stainless,mixed differ, c/w rods
9/01561/01 As 9/01561, FS880
9/01562 3-way Drop-T set, mild steel,mixed differ, c/w rods
9/01562/01 As 9/01562, FS880

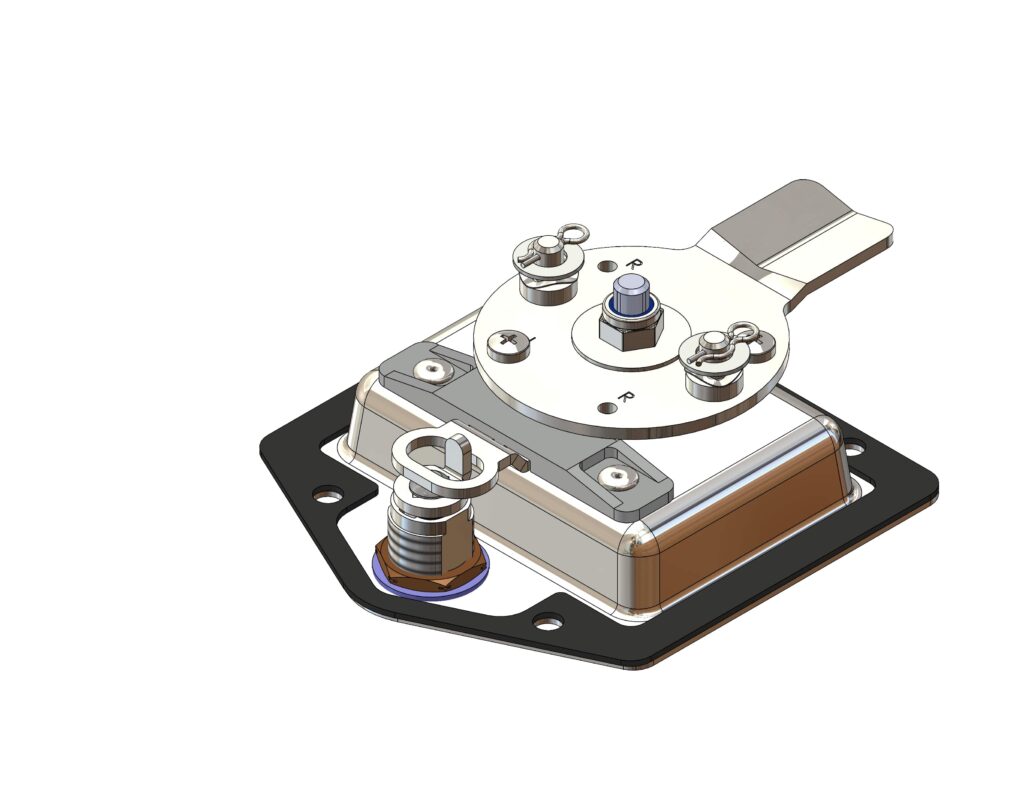

9/01567 Centre only, 3-way Drop-T,stainless
9/01567/01 As 9/01567, FS880

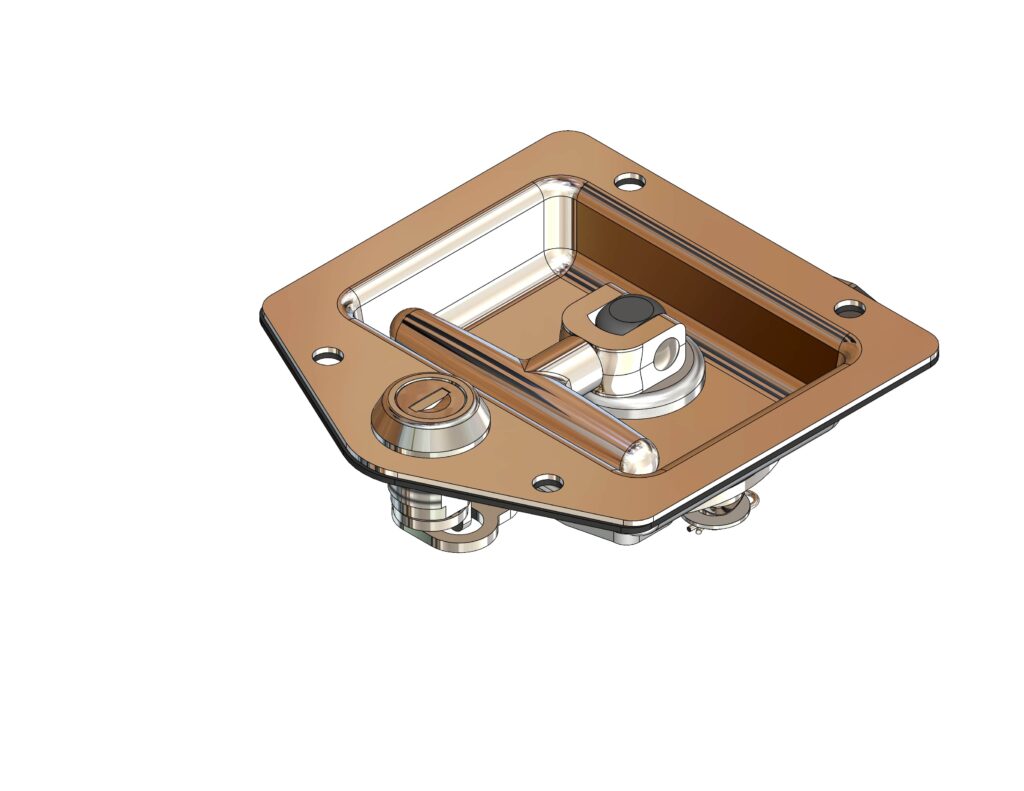

9/01568 Centre only, 3-way Drop-T,mild steel
9/01568/01 As 9/01568, FS880
C27-Diagram 01
C27-Diagram 02
C27-Diagram 05
C27-Diagram 04
Set at factory for 90° LH but ‘stops’ are reversible on site
C27-Diagram 03

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A. Width of pan 120 mm
B. Length of pan 125 mm
C. Hole centres 69 mm
D. Hole centres 95 mm
E. Max depth 45 mm
F. Rod fixing centre 52 mm
G. Length of latchCam depth 70 mm3 mm
H. Hole sizes (dia) 7.5 mm
I. Engagement 27 mm
J. Visible length 30 mm
K. Rod length 1145 x 9.5 mm
L. Hole dimension (dia) 7.5 mm
M. height to central line 14 mm
N. Hole sizes (dia) 5mm c/s 10 mm
Rods withdraw by 25mm in line of travel, as latch disc rotates through 90°.Rod Ref (3/18702) Guides Ref (3/18716)
  • Polished diecast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion-resistance and weatherproofing.
  • Lift handle to turn, releasing latch tongue and withdrawing rods. Reverse to close. Tongue has 3mm cam-form for easy engagement.
  • Latch travels 90° from centre against ‘stops’, which can be adjusted to allow either LH or RH operation.
  • Four holes in flanges at 7.5mm diameter. Rods are secured by split pins through pillar rivets.
  • ‘FS’ keys as standard, with shuttered keyway. Optionally ‘FT’, ‘92’ or ‘DLP’ keys.
  • Polished stainless steel with chrome handle and hub, or mild steel, zinc-plated. Optionally, black powder-coated.
  • ‘T’ pan in 2mm stainless steel, Grade 304, bright polished, or mild steel to CR4, zinc-plated. ‘T’ handle and hub are zinc diecast, polished and chromium-plated or zinc-plated.
  • Special rod lengths. Plain flanges or ‘blind-mounting’ with M6 welded studs. Non-locking and 2-way models, cranked tongues, etc. Weathershield options.
