- Steel striker is mounted onto door exterior, holdback is fitted into panel so that striker slams into hardened steel jaws.
- Gentle pressure on inside handle (in either direction) releases jaws, and a spring ejects striker with some force.

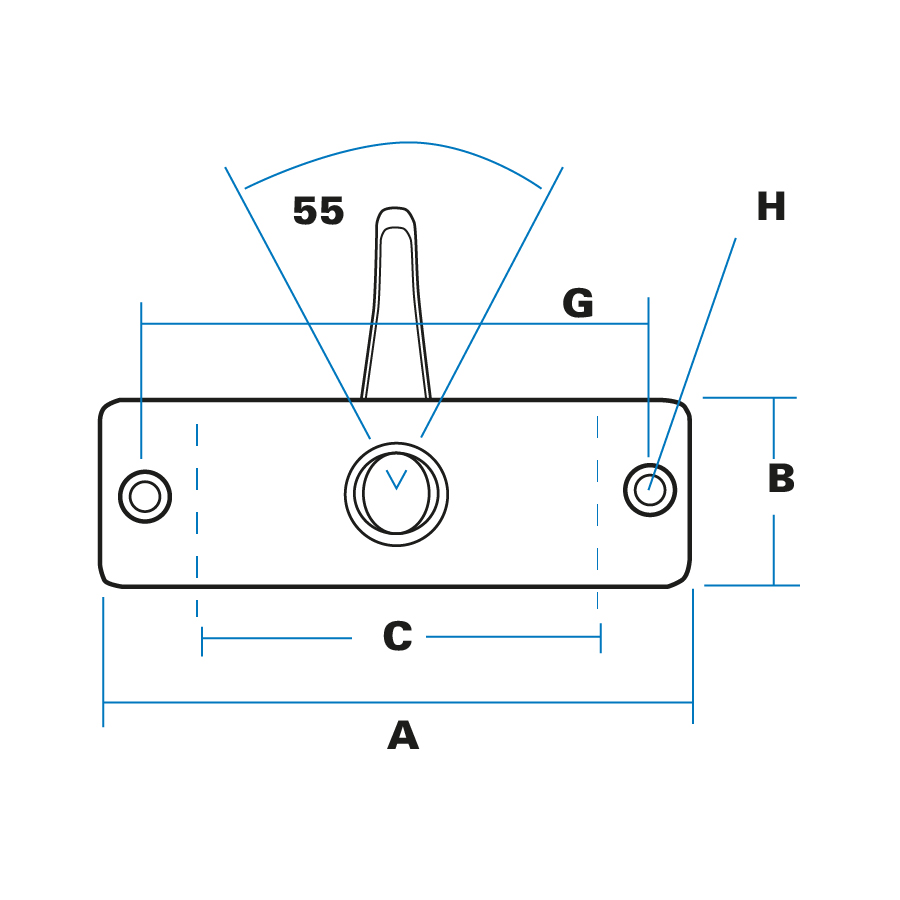

- Holdback is inserted through panel cut-out and fixed through two hollow rivets in steel faceplate. (Handle can be attached separately). Striker pin threaded and provided with nut and washers.

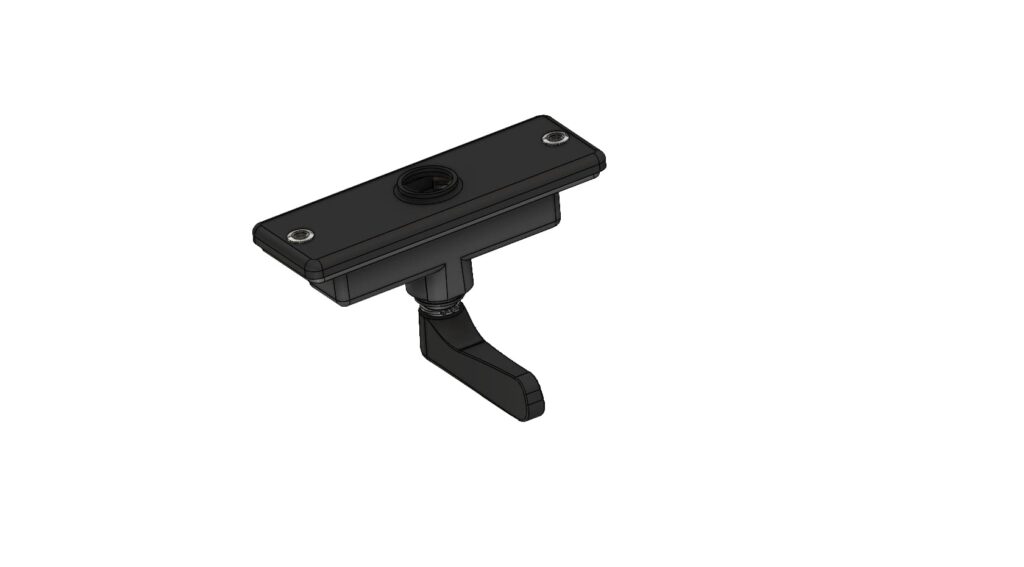

- Black powder-coated faceplate on black moulded case. Handle shown is red. Striker pin & washers are zinc-plated.
-

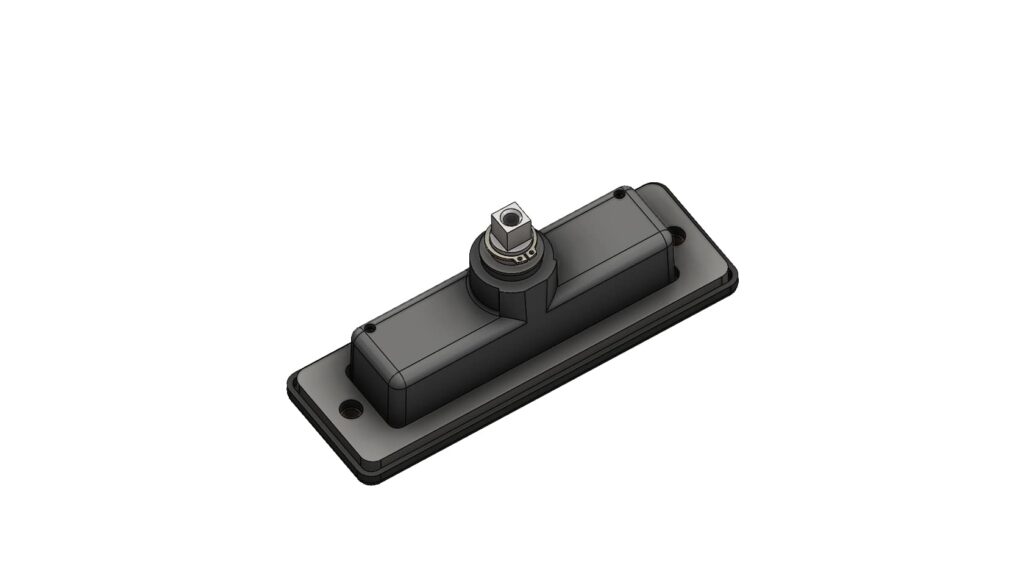

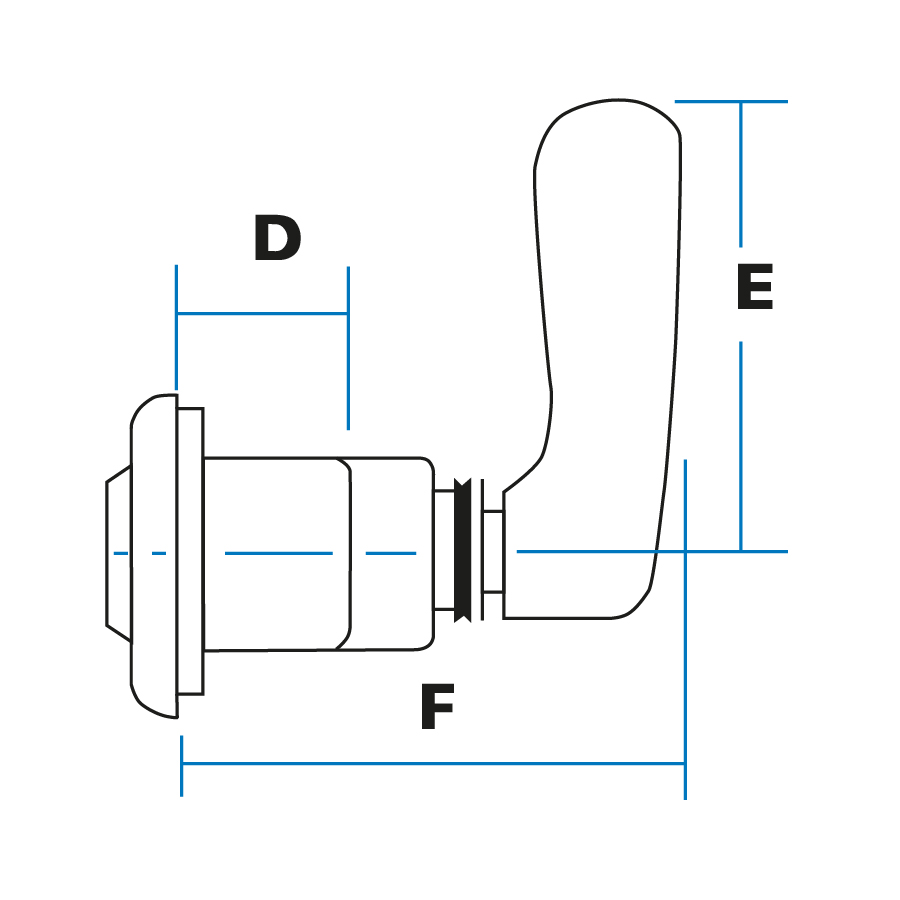

Handle can be fitted at any 90˚ position. Alternative handles available (retained by screw on 8mm square drive spindle). Remote-operated models

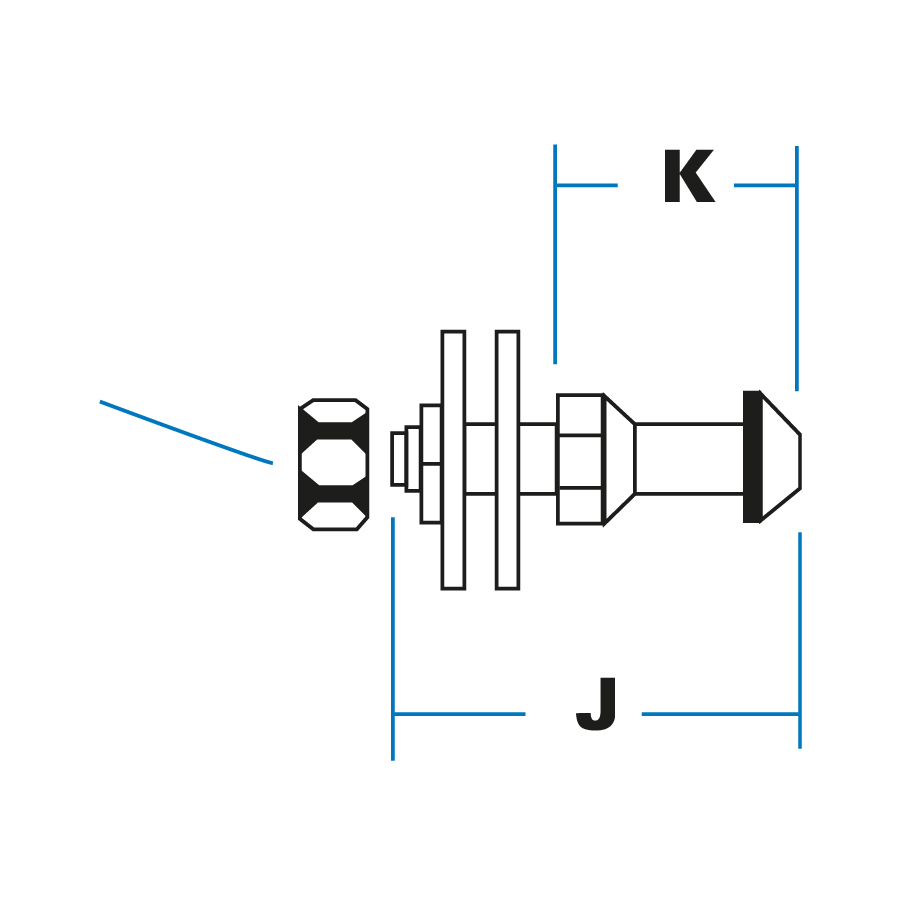

Striker pin length can be varied. Striker can be attached to steel plate for surface-mount applications. -
Cycle Testing
The door holdback and striker were mounted on a representative door and were slammed and released for over 50,000 cycles without noticeable wear or damage.
