Diecast Window/Hatch – ‘Flat’ Hinge

A low-profile design with concealed fixing on the leaf into two tapped bosses. These, with securing plate and rubber gaskets, allow a panel to be held securely without damage or fracture. Ideal for top-hinged windows and hatches.

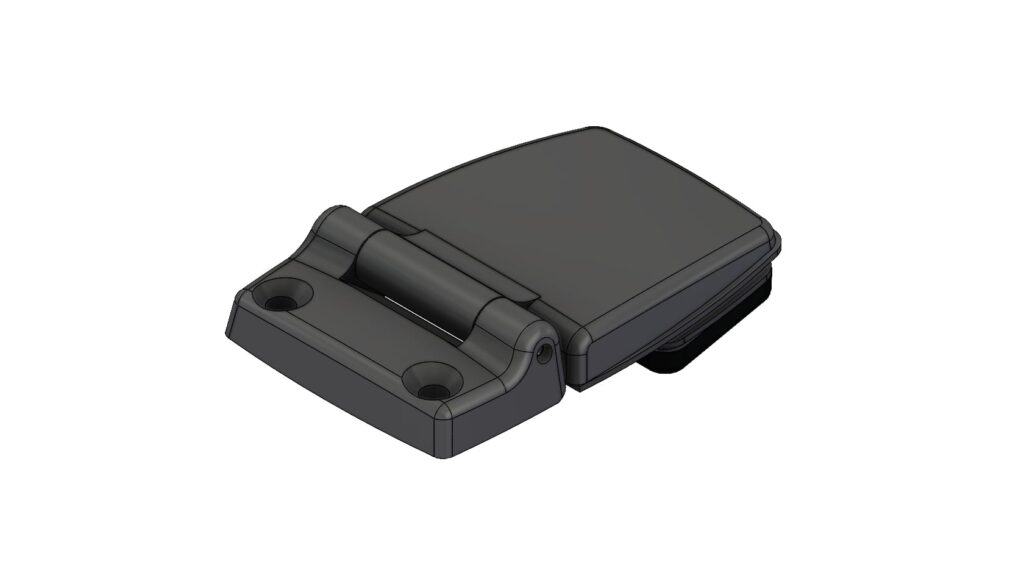

9/00699

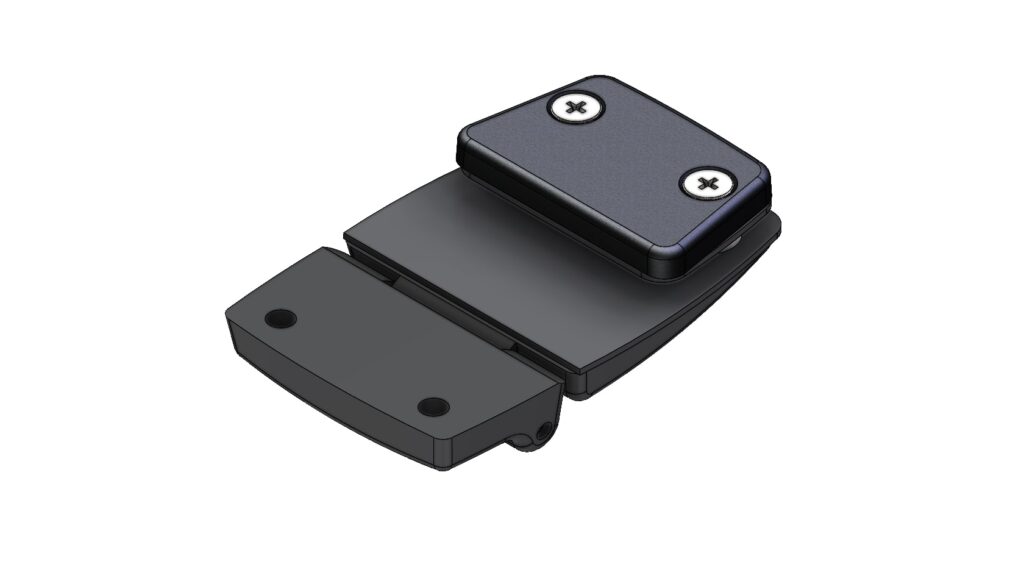

9/00699
9/00699
9/00699

Ordering Code

9/00699 ‘Flat’ hinge, black

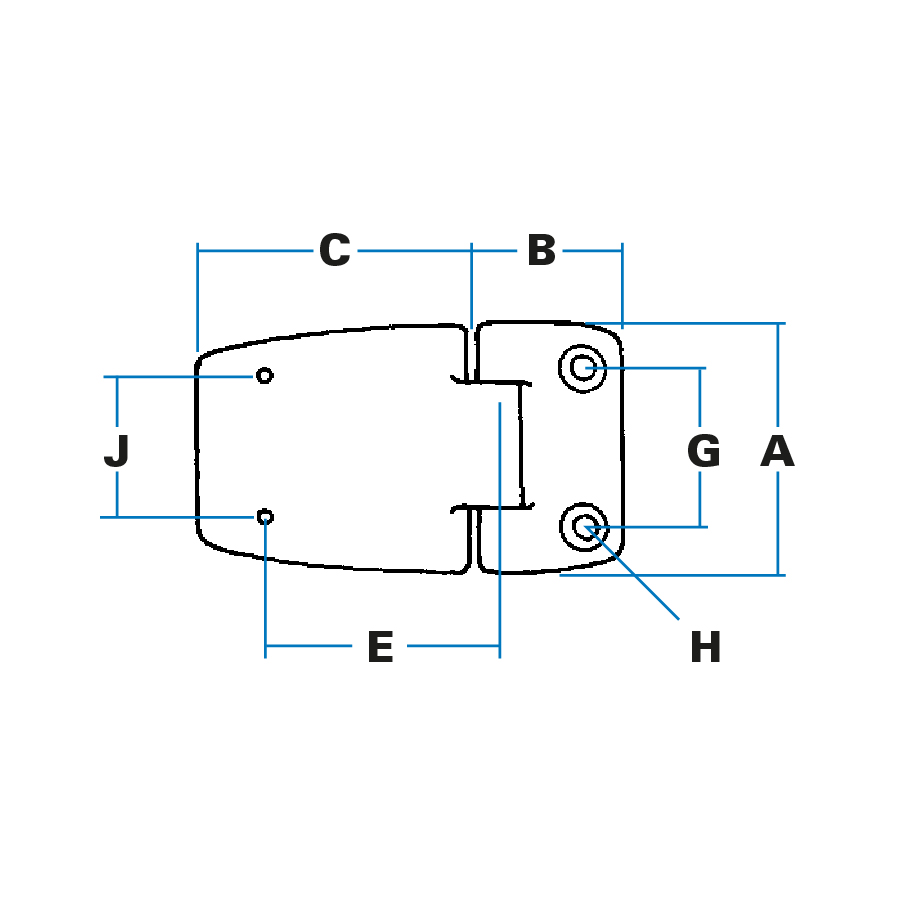

F7-Diagram 01

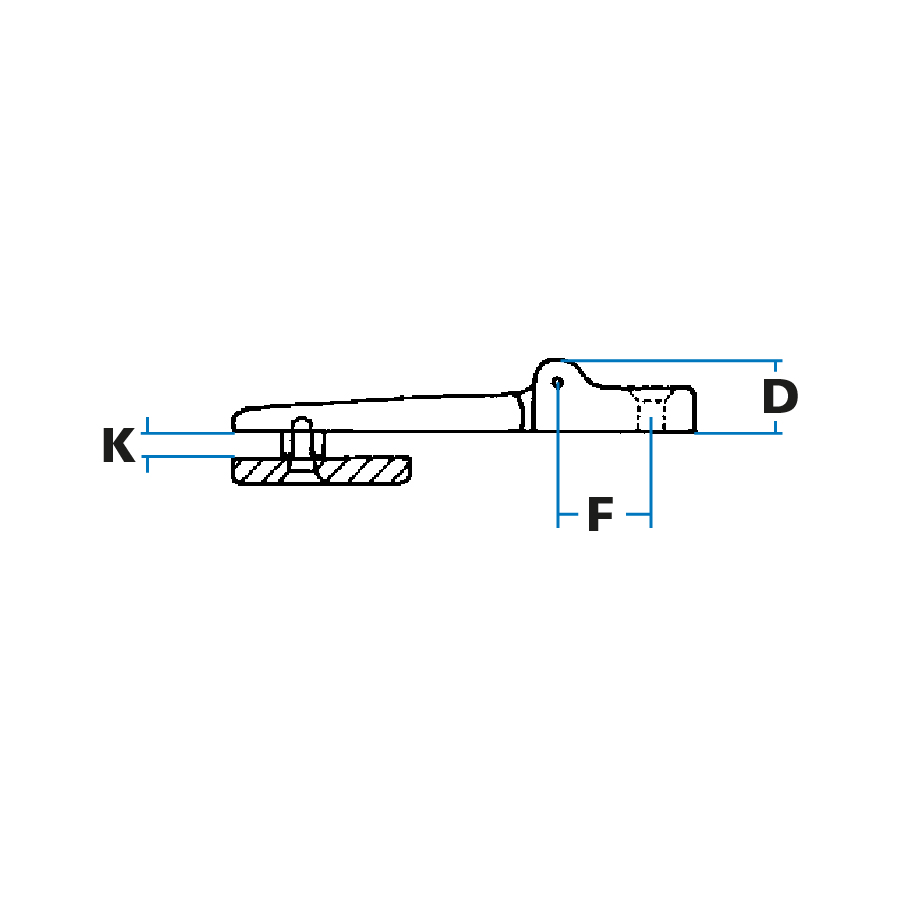

F7-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Width (max) 62 mm
B Length (butt) 36 mm
C Length (leaf) 70 mm
D Height (max) 18 mm
E Location to pivot 60 mm
F Location to pivot 23 mm
G Hole centres 43 mm
H Hole sizes (diameter) 6 mm c/s 12 mm
J Hole centres 38 mm
K Aperture for panel 6 mm (optimum)
Angle of opening 160° forwards
  • Window glass or hatch panel is clamped between hinge leaf and securing plate.
  • Hinge ‘butt’ is plant-on fitting through two countersunk holes.
  • Black powder coated.
  • Zinc diecast, with stainless steel pin and rubber gaskets and nylon spacers on leaf/securing plate.
  • Axial Loading
    Maximum advised: 2.86KN
    Ultimate: 4.30KN.

    Radial Loading
    Maximum advised: 2.80KN
    Ultimate: 4.20KN.
