Diecast Hinge with Grease Nipple RH

Lift-off hinges providing improved appearance and greater security by use of concealed fixing studs, secured from inside. These are robust hinges intended for large enclosure doors, interior or exterior use.

Interchangeable with our moulded & diecast lift-off models. Hinge is the same as the standard part but fitted with a grease nipple for easy maintenance.

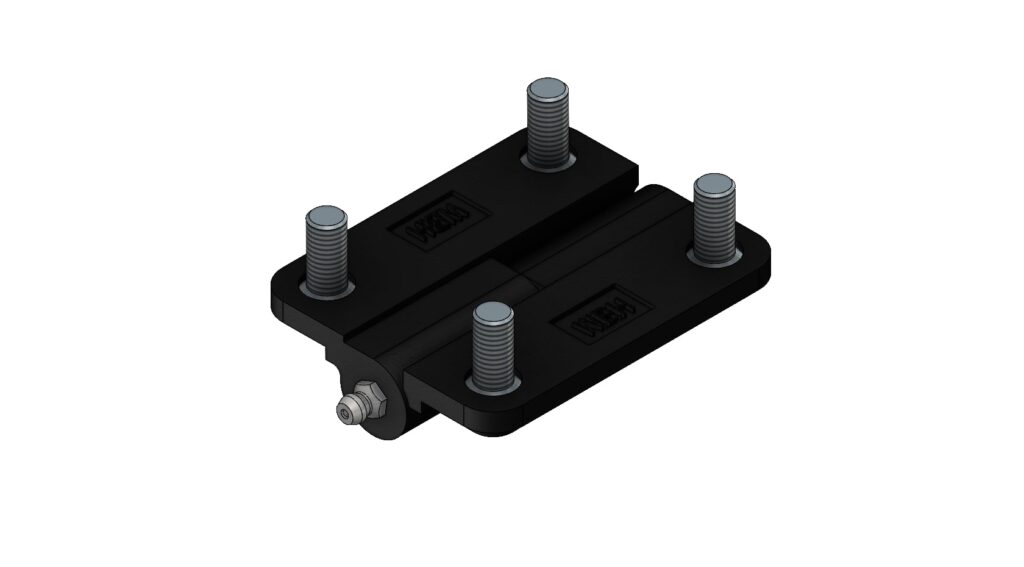

9/01824/GN

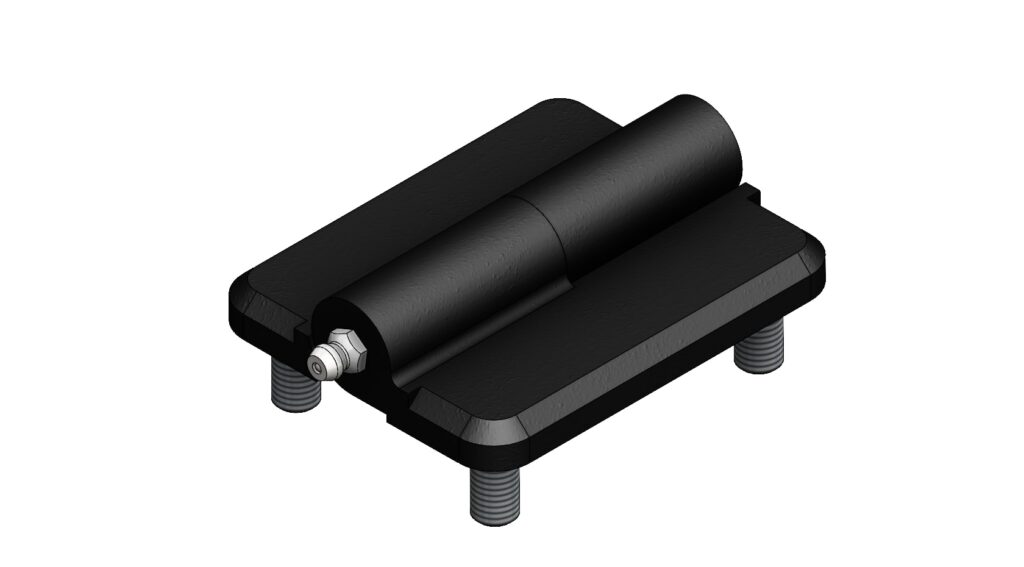

9/01824/GN
9/01824/GN
9/01824/GN

Ordering Code

9/01824/GN Diecast Hinge with Grease Nipple RH

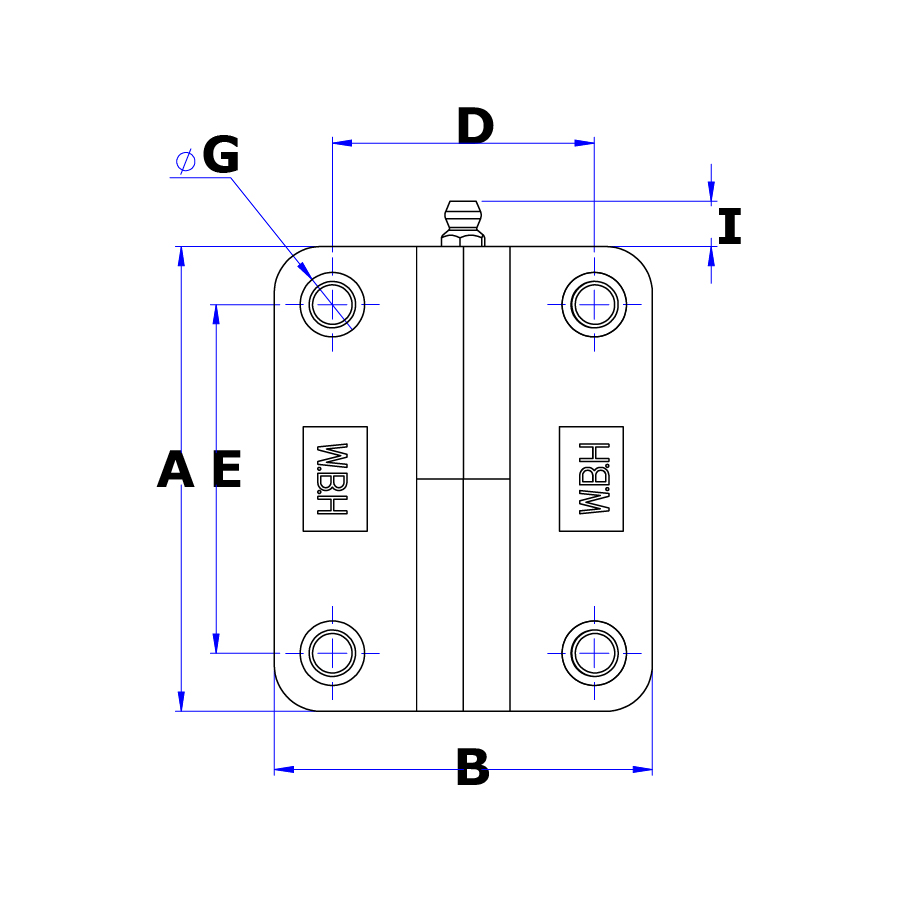

F-01825-GN-Diagram-01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A 80mm
B 65mm
C 20mm
D 45mm
E 60mm
F 16mm
G M8 Stud Thread
I Nipple Height - 8mm
  • Doors lift-off fixed pin in bottom half of hinge. Use LH and RH together (opposed) when door is required to be permanently fixed.
  • Fixing by two threaded studs M8 x 12 mm, cast-in each leaf.
  • Black powder-coated finish.
  • Zinc alloy diecast, with 8 mm stainless steel pin.
  • Stainless models
    Axial loading
    Maximum advised: 15.36kN
    Ultimate: 23.04kN.

    Radial loading
    Maximum advised: 6.94kN
    Ultimate: 10.41kN.
