Diecast Block Hinges for Offset Doors

‘Block’ hinges are a neat, convenient method for hanging externally-fixed doors on metal cabinets, electrical enclosures, etc. Non-handed, the upper part simply sits onto a fixed steel pin (oppose hinges for when door is permanently fitted).

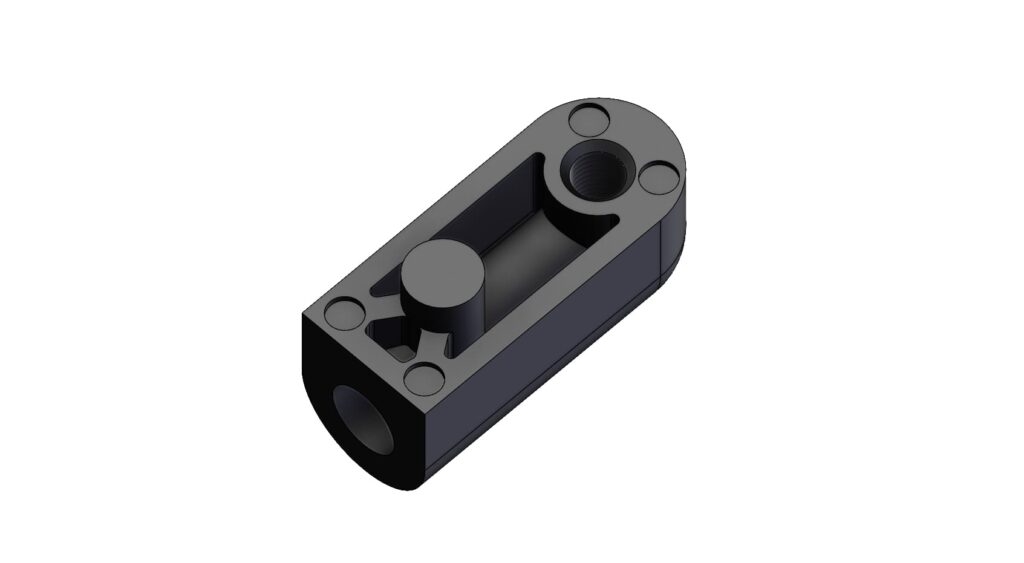

1/26379
1/26379
1/26379
1/26379
1/26379R
1/26379R
1/26379R
1/26379R
1/26380
1/26380
1/26380
1/26380
1/26389B
1/26389B
1/26389B
1/26389B
1/26389R
1/26389R
1/26389R
1/26389R
1/26390
1/26390
1/26390
1/26390

Ordering Code

‘Small’ (60 mm) hinges (hole and peg)

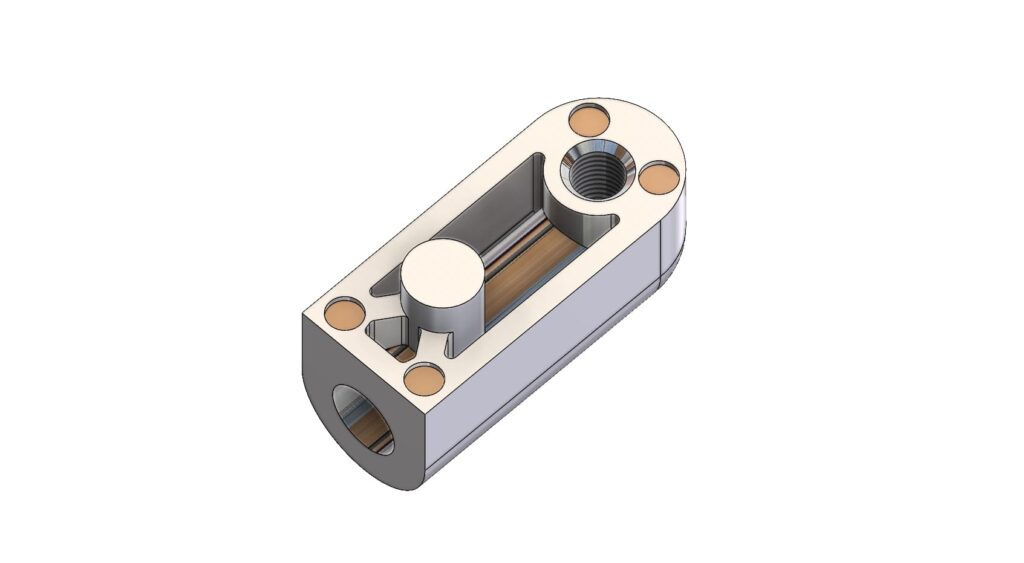

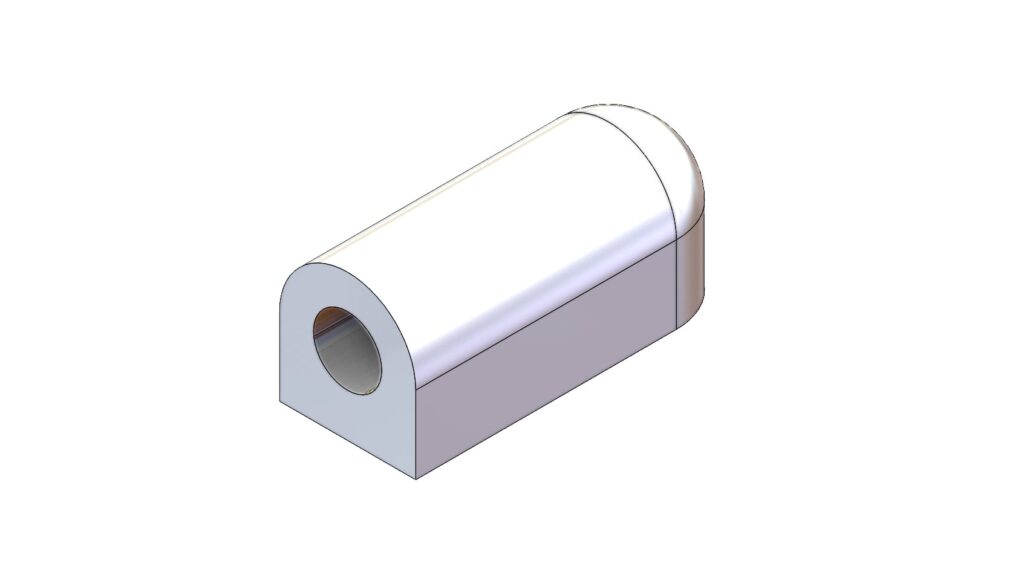

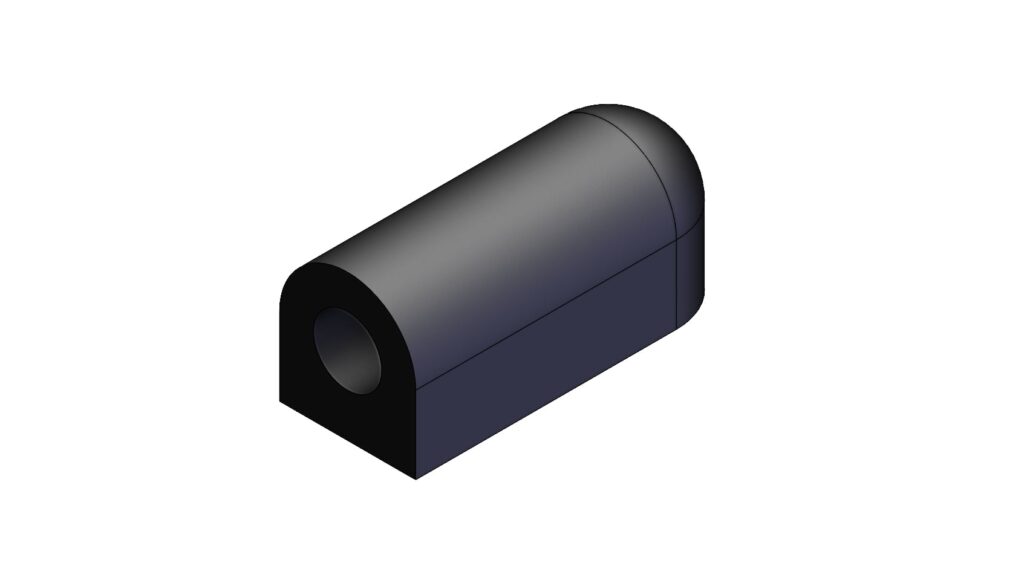

1/26379R raw finish
1/26379B black finish

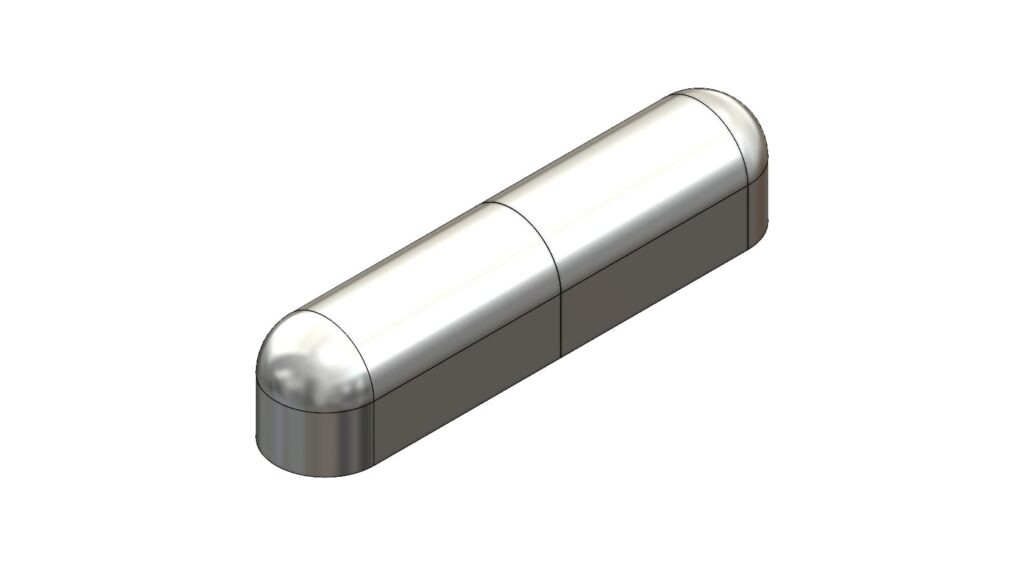

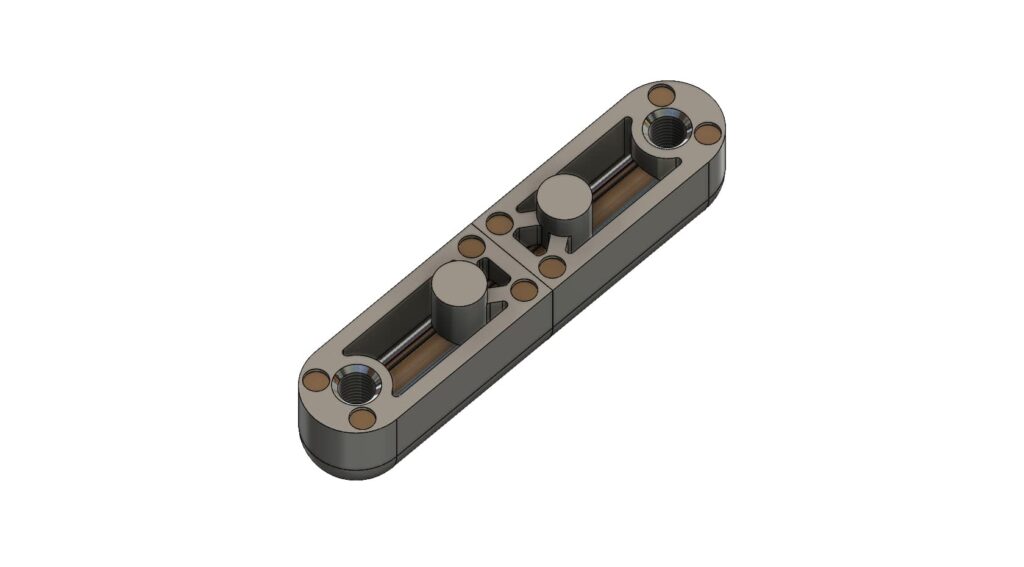

1/26380 chrome finish

Two-hole design (60mm only) With this option the ‘peg’ is replaced by a second tapped hole at the same location.
‘Small’ (60 mm) hinges (2 holes)

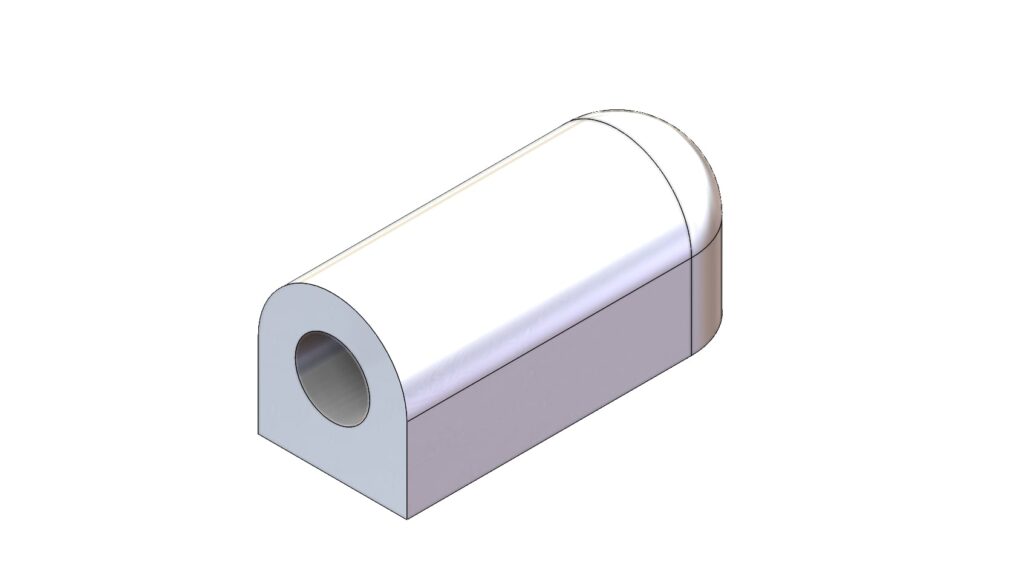

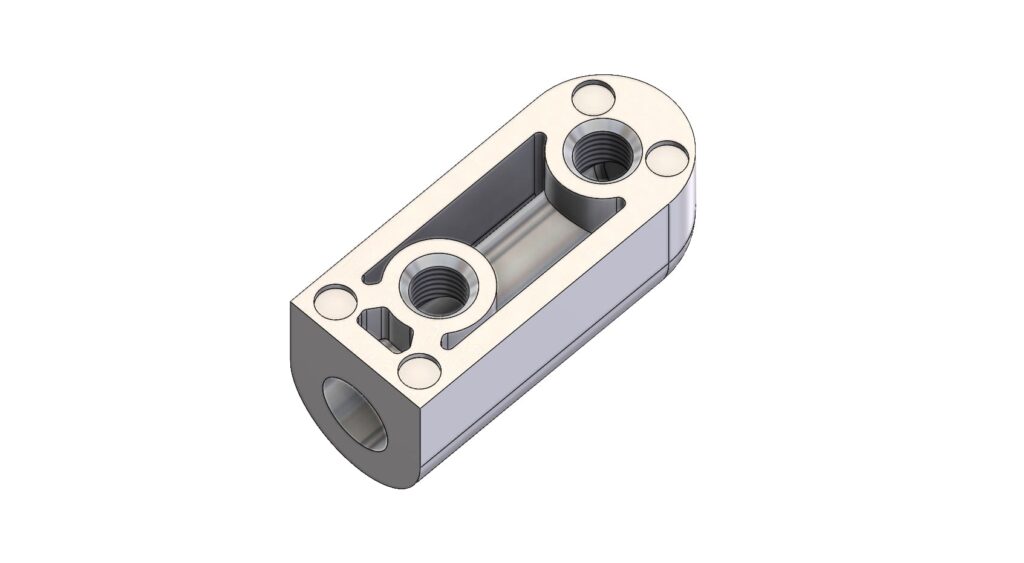

1/26389R raw finish

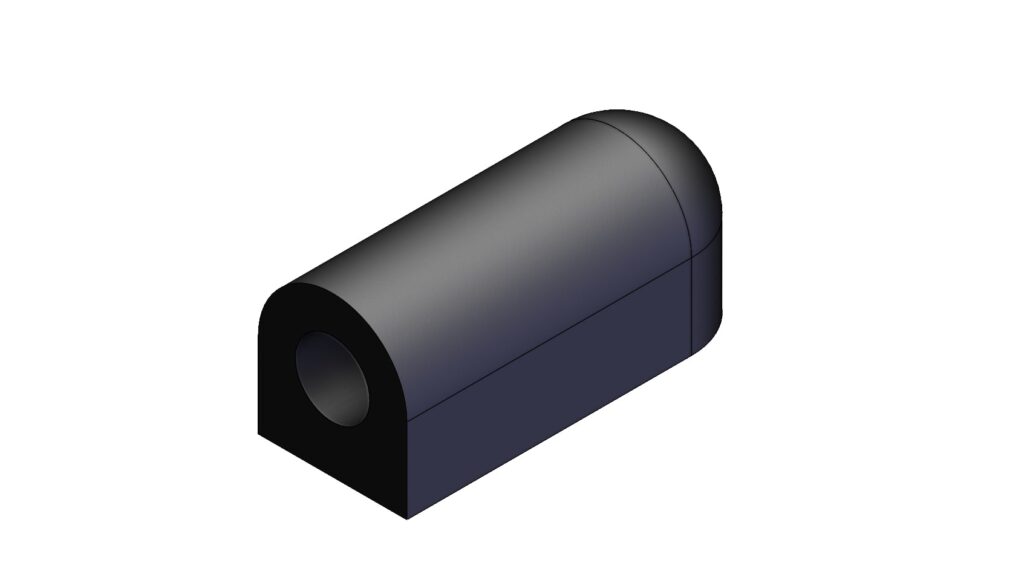

1/26389B black finish

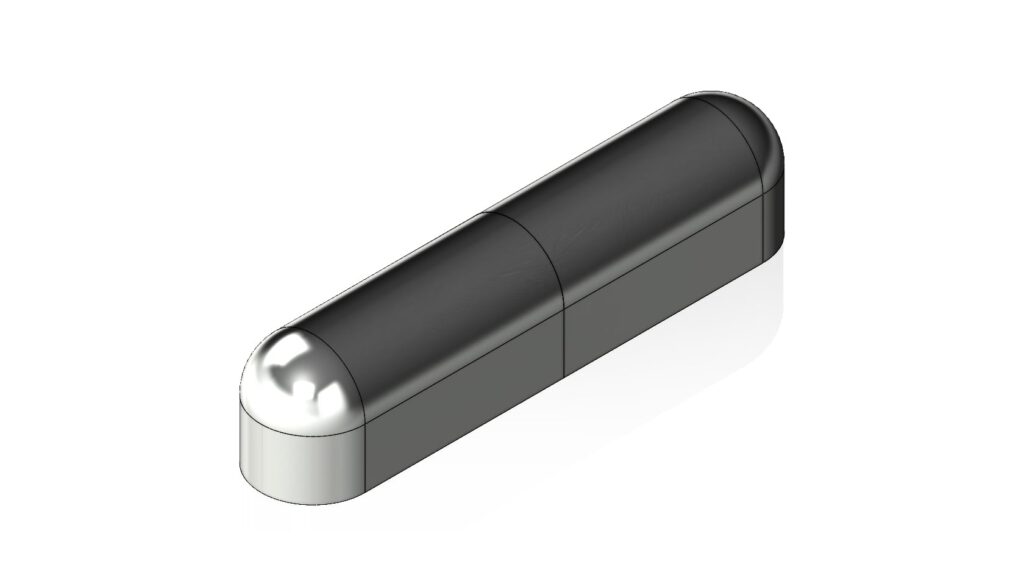

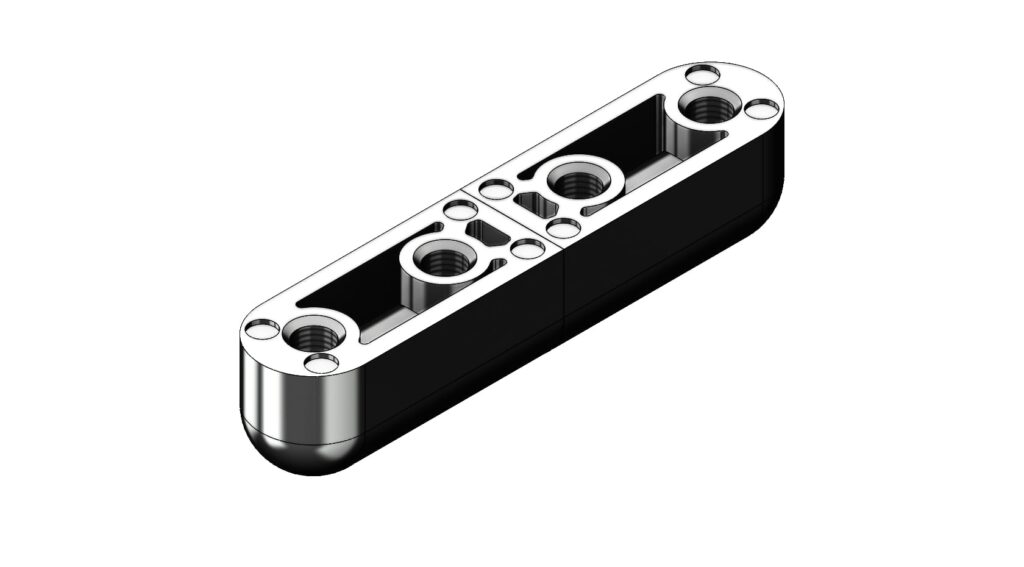

1/26390 chrome finish

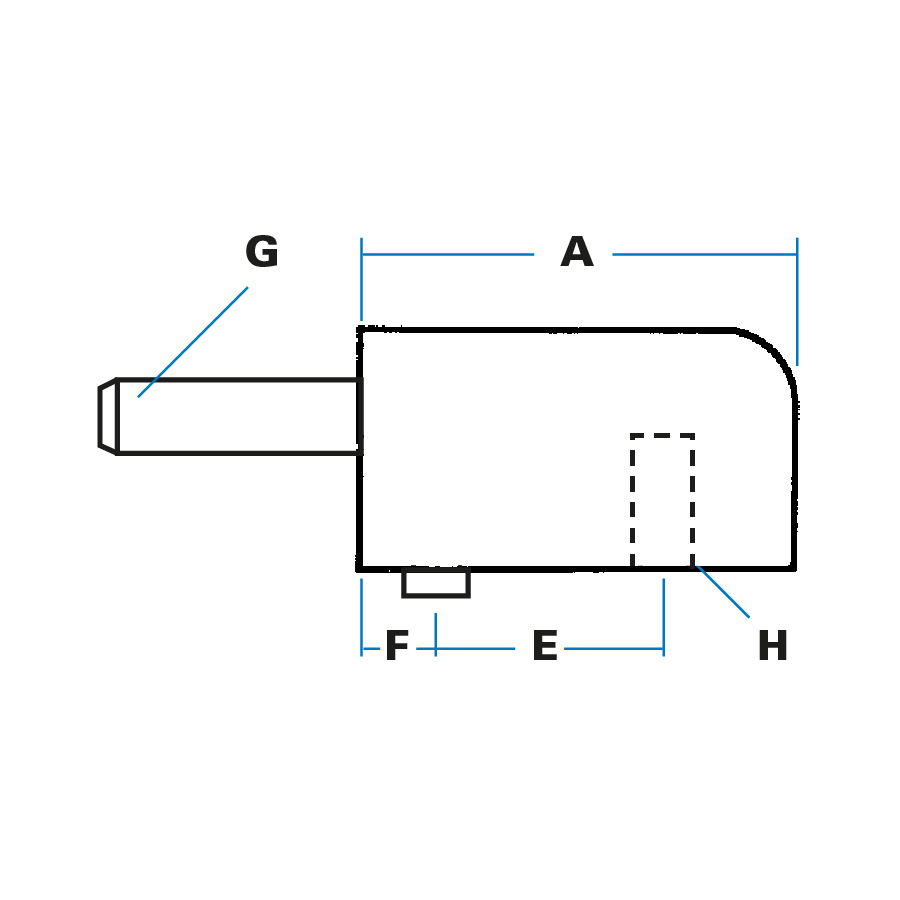

F12-Diagram 01

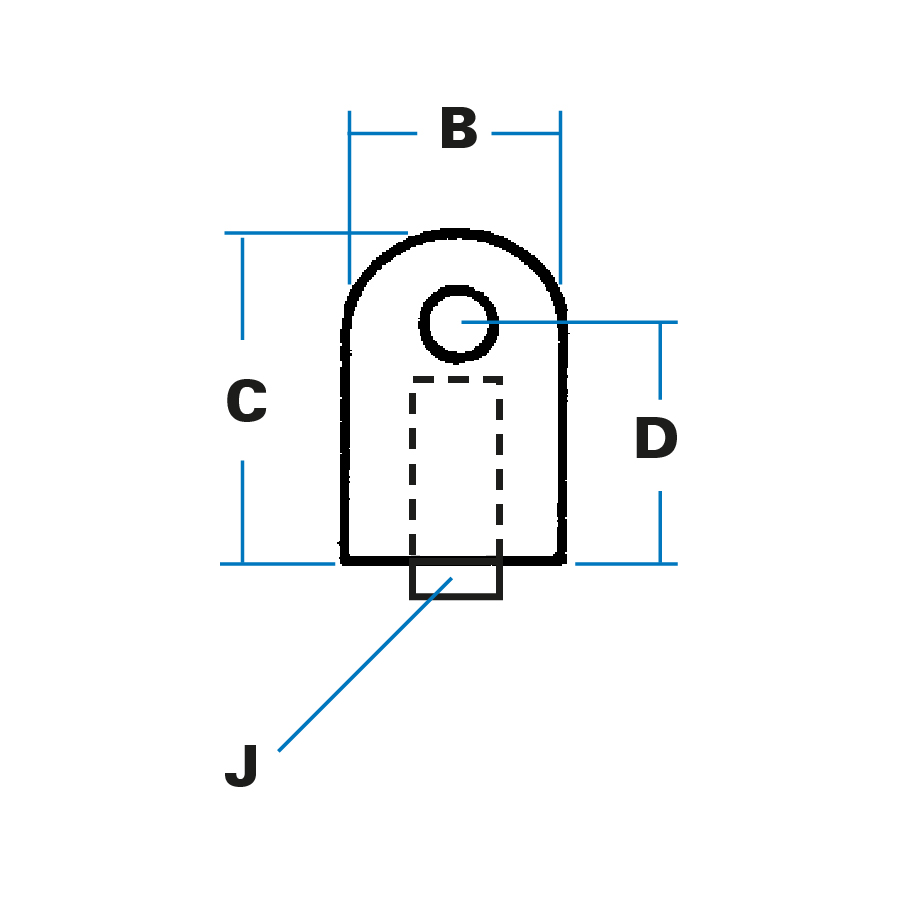

F12-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

60 mm hinge
A Length (half) 30 mm
B Width 13 mm
C Height 14 mm
D Height to pin 7.5 mm
E Location 16 mm
F Location 8 mm
G Pin diameter 6 mm
H Hole size 6 mm x M5
J Peg size 3 x 6 mm dia
  • Bottom half of hinge contains a fixed steel pin and is fitted to door frame. Top half is fitted to door edge and is lifted on (and off) pin. Movement is completely free.
  • Chromium-plated, black powder-coated or raw metal for painting after assembly.
  • Plant-on fitting. Tapped hole (M5 x 6mm) and location peg. (Two holes optional on 60mm size).
  • Zinc diecast, with mild steel pin, zinc-plated. Stainless pin is optional.
