Diecast Block Hinges for Offset Doors – Medium & Large Sizes

‘Block’ hinges are a neat, convenient method for hanging externally-fixed doors on metal cabinets, electrical enclosures, etc. Non-handed, the upper part simply sits onto a fixed steel pin. (Oppose hinges for when door is permanently fitted).

Ordering Code

‘Medium’ (76 mm) hinges (2 holes)

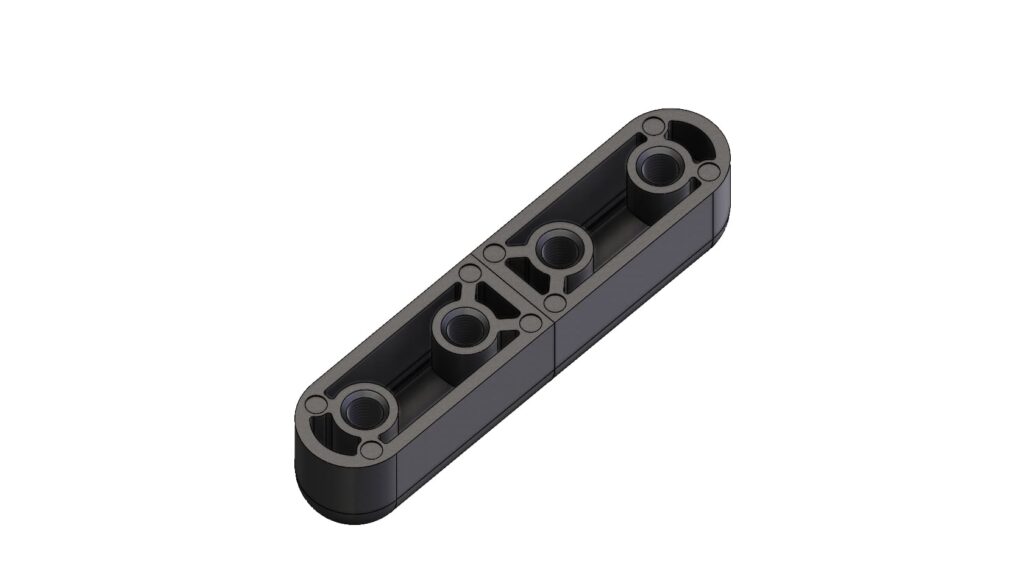

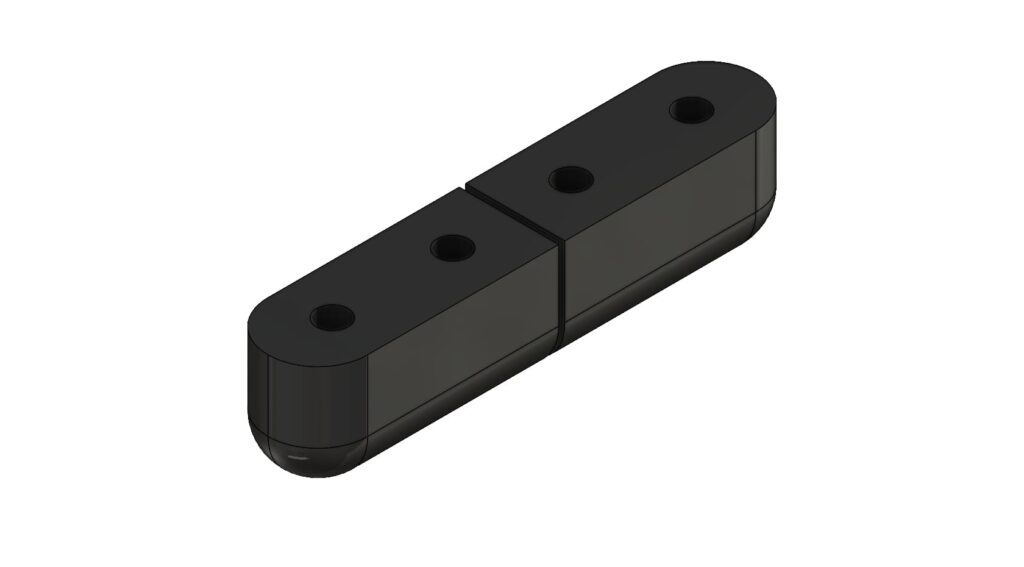

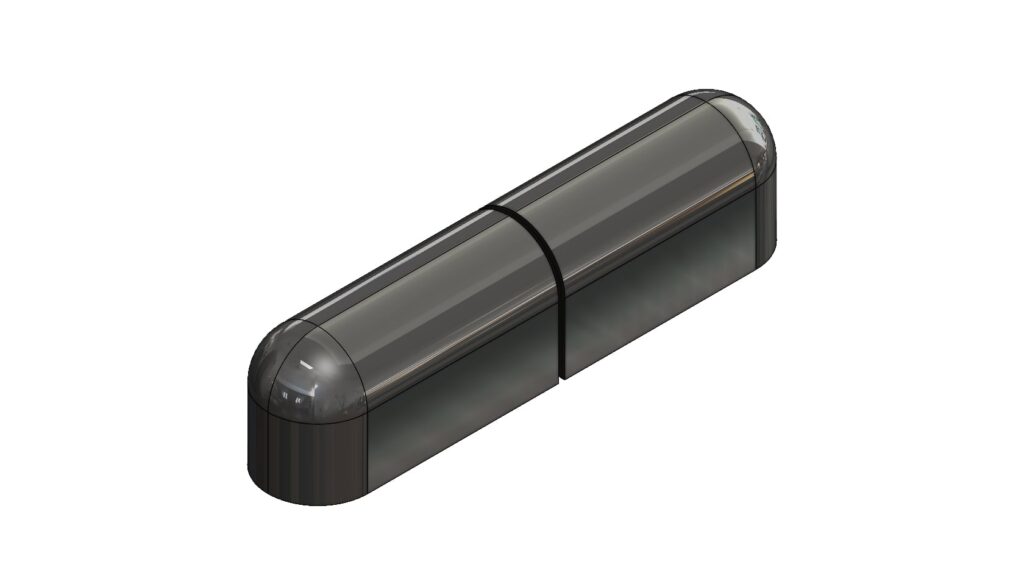

1/26750	raw finish

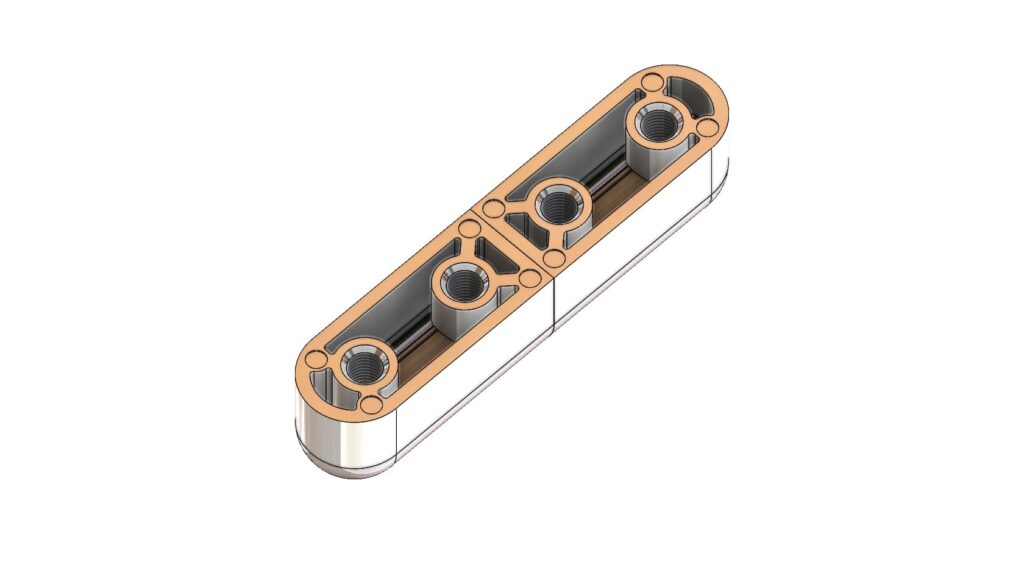

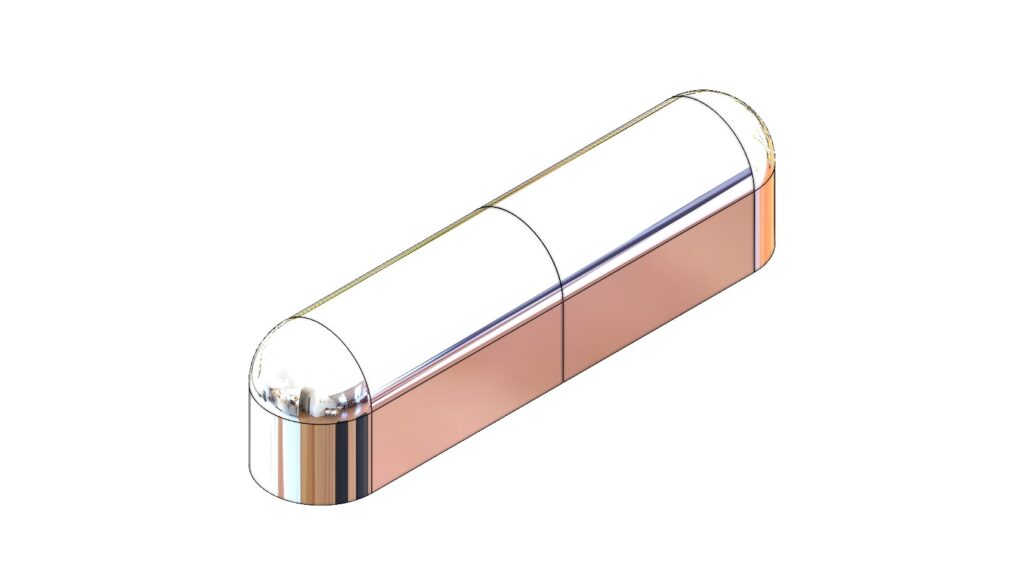

1/26915	chrome finish

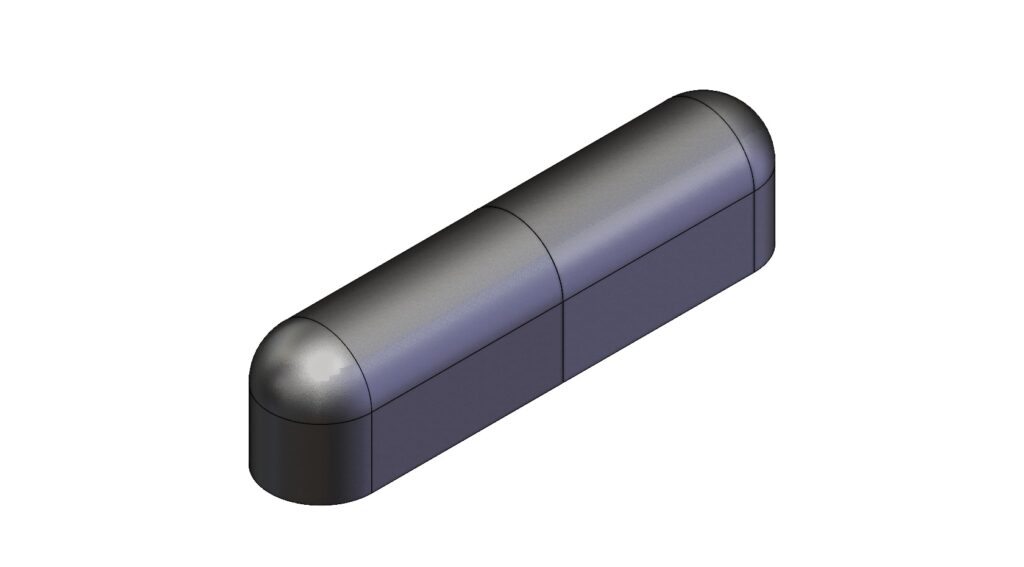

1/26915B	black finish

‘Large’ (100 mm) hinges (2 holes)
9/00838	raw finish
9/00839	chrome finish
9/00840	black finish

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

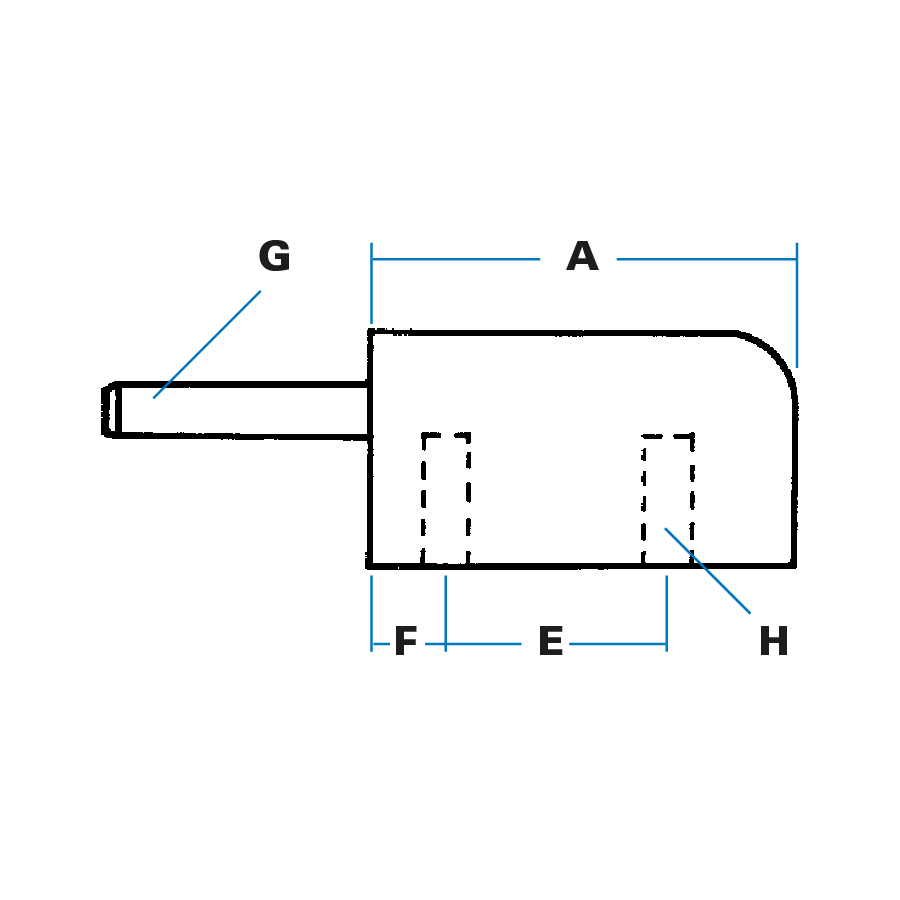

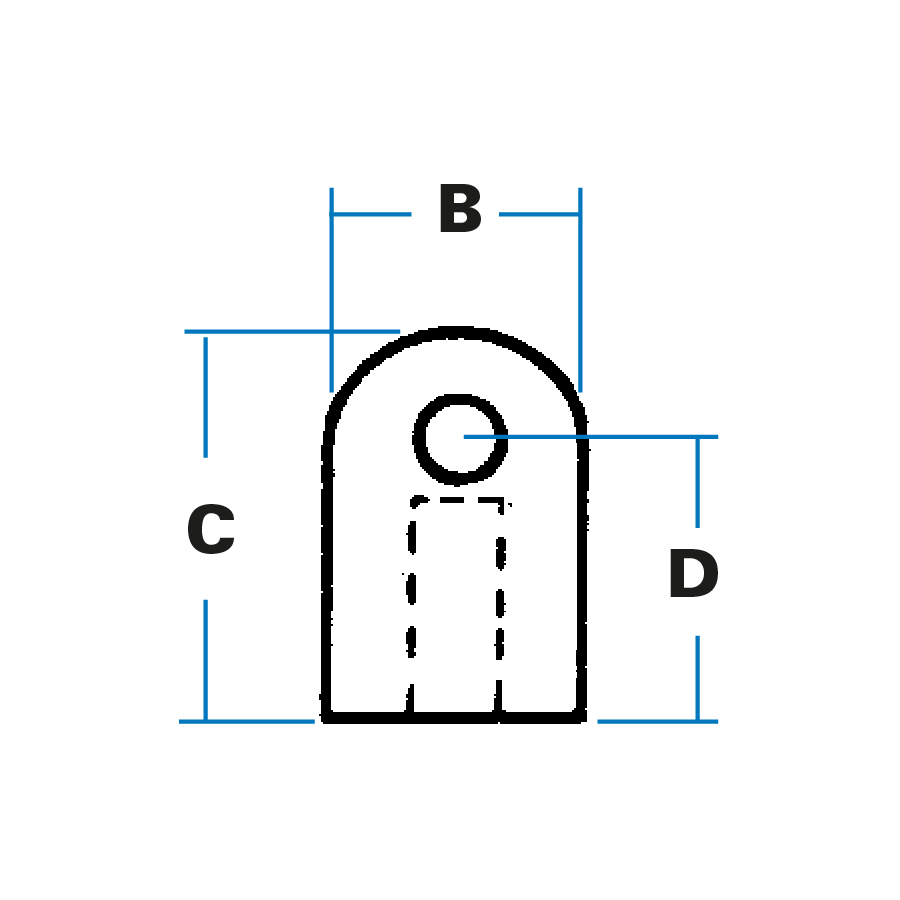

		‘Medium’ (76mm)	‘Large’ (100mm)
A	Length (half)	38 mm	50 mm
B	Width	17 mm	19 mm
C	Height	19 mm	28 mm
D	Height to pin	11 mm	19 mm
E	Location	19 mm	25 mm
F	Location	9 mm	13 mm
G	Pin diameter	6 mm	8 mm
H	Hole size	M6 x 7.5 mm	M8 x 13 mm

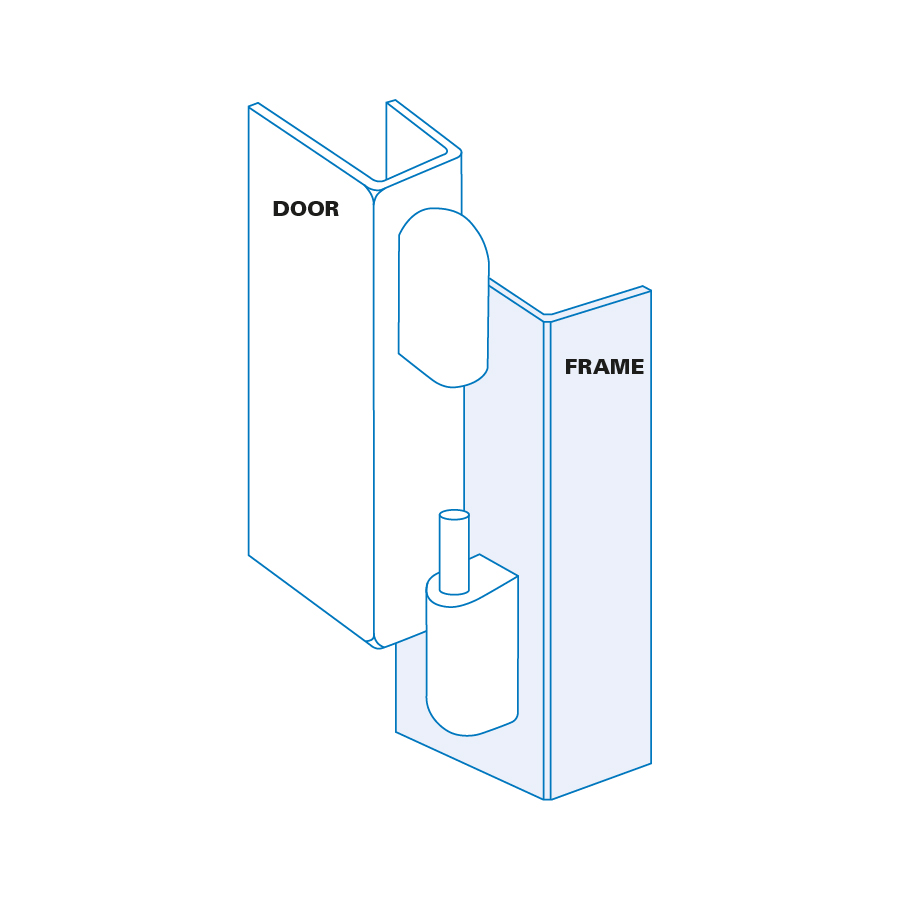

Bottom half of hinge contains a fixed steel pin and is fitted to door frame. Top half is fitted to door edge and is lifted on (and off) pin. Movement is completely free.
Chromium-plated, black powder-coated or raw metal for painting after assembly.
Plant-on fitting, with two tapped holes in each half.
Zinc diecast, with mild steel pin, zinc-plated on 76mm models. Stainless pin as standard on 100mm models.
