Diecast Block Hinges for Flush Doors

These ‘block’ hinges are a simple way to hang flush doors on metal cabinets, electrical enclosures, etc, allowing “lift-off” capability from a narrow door surround.

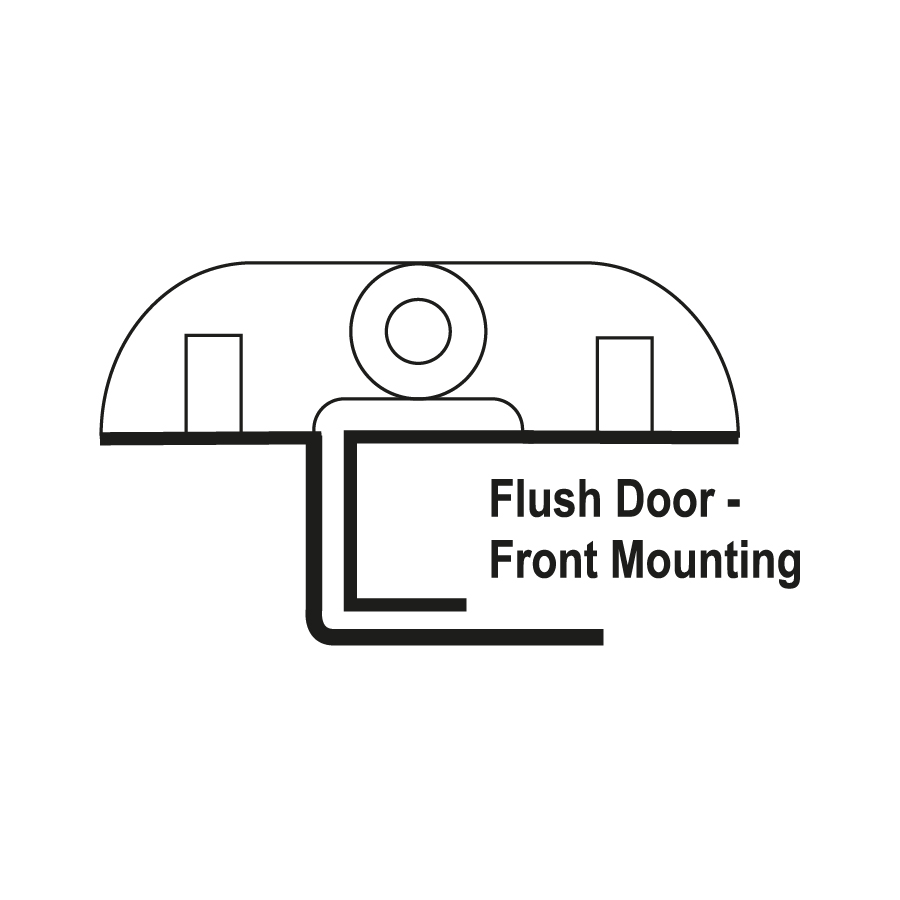

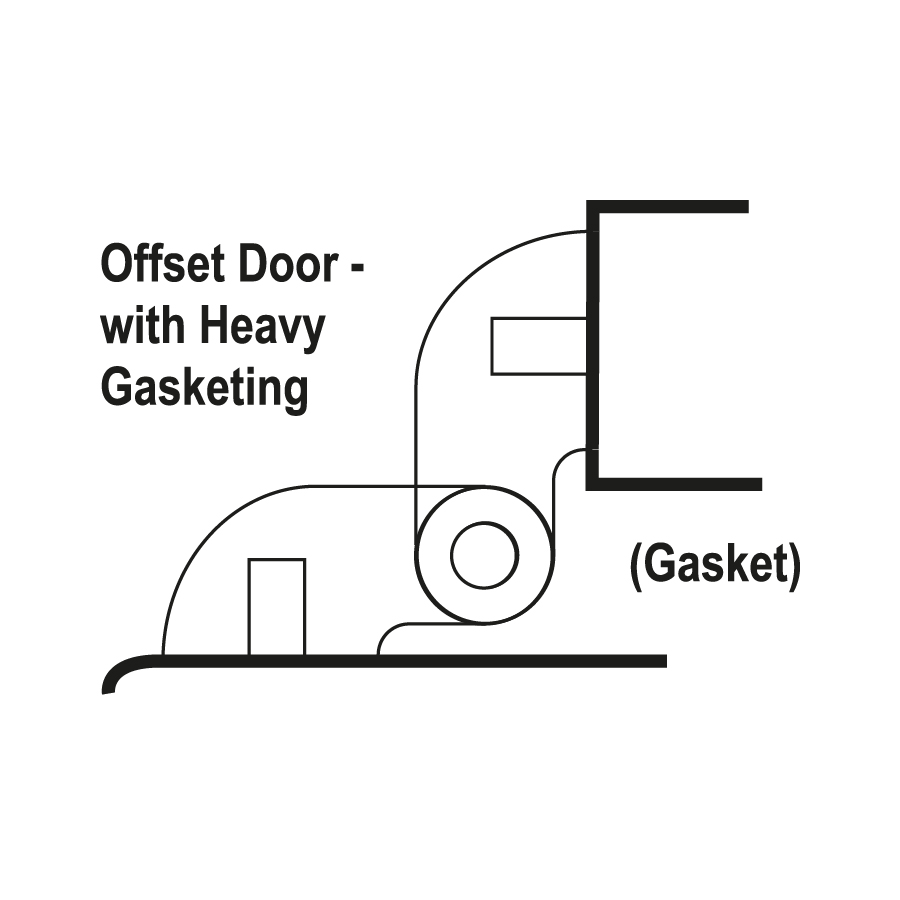

‘Handed’, left and right, these hinges provide great flexibility in a variety of configurations. See schemes below. Use one hinge of each hand to create a non-lift-off, permanently retained door.

Ordering Code

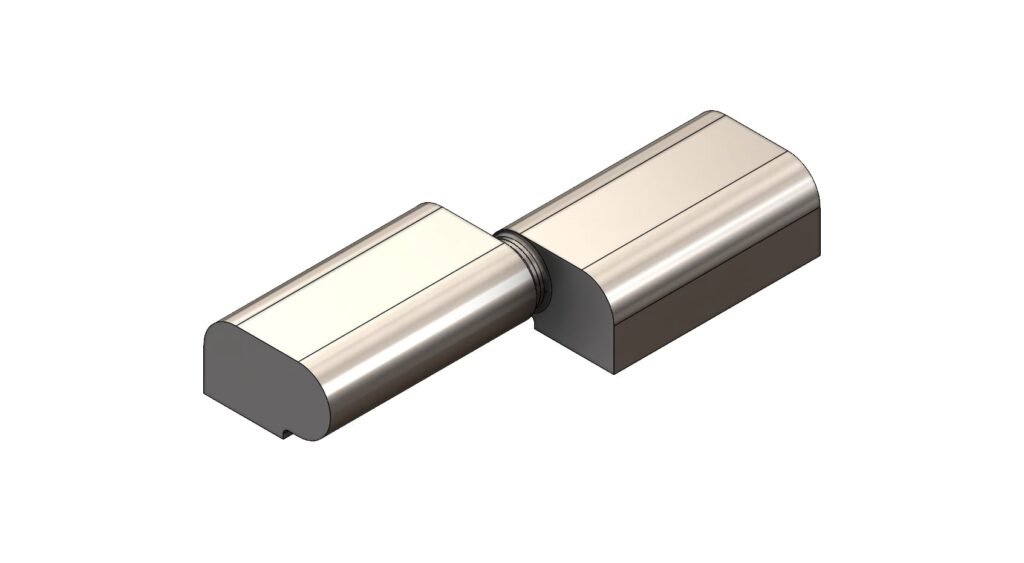

9/01967 Hinge, LH, chrome

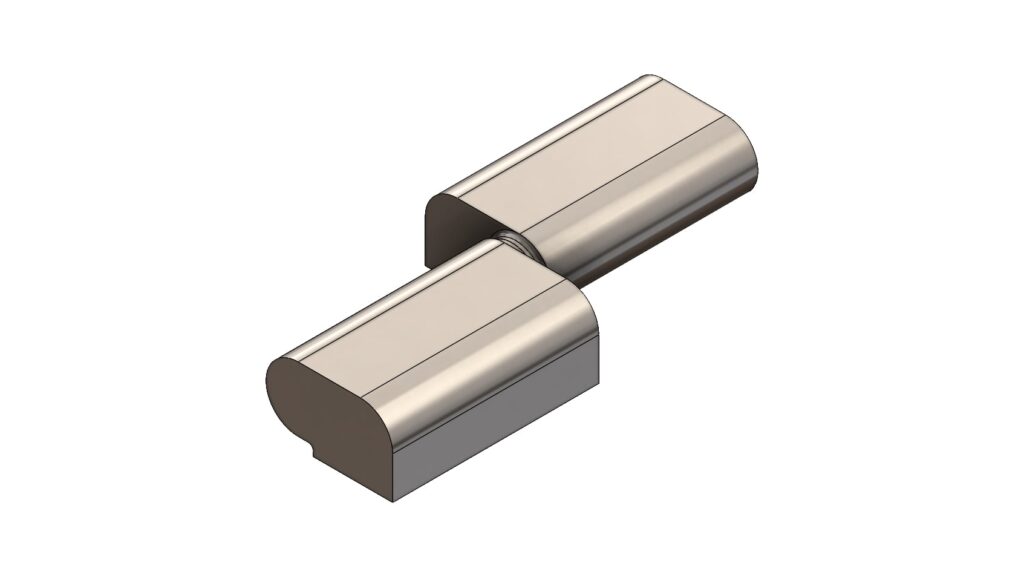

9/01966

Hinge, RH, chrome

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

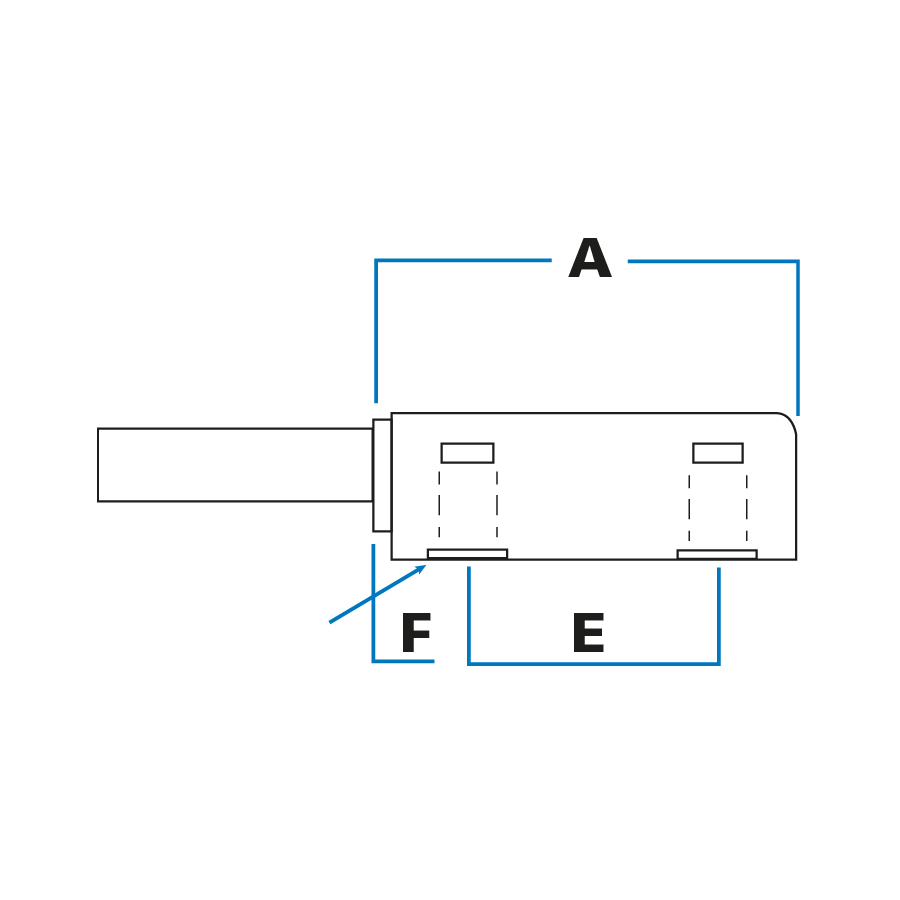

A	Length (half)	43 mm
B	Width	25.5 mm

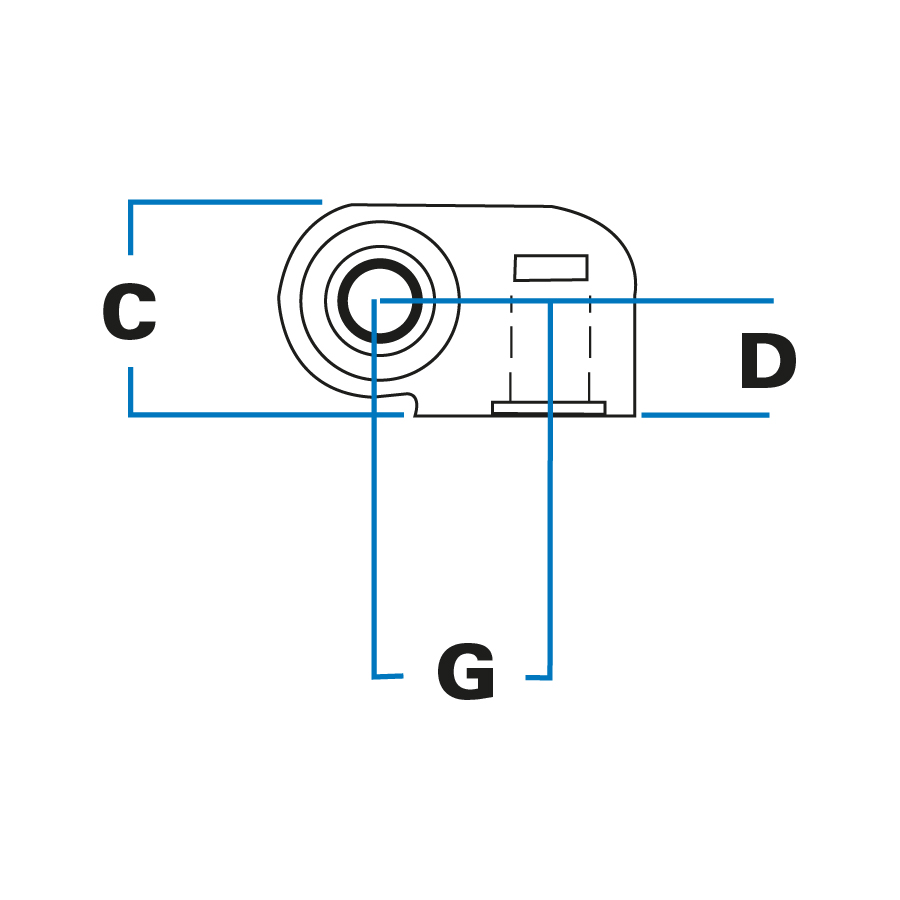

C	Height	15 mm
D	Height to pin	8.5 mm
E	Location	25.5 mm
F	Location	9.5 mm
G	Location	12.7 mm
H	Hole sizes	M6x9 mm

Note: Hinge pin diameter 6mm, projection 25mm

Bottom half of hinge contains a fixed, stainless steel pin, and is fitted to door frame. Top half is fitted to face of door and is lifted on (and off) pin. Movement is completely free.
Plant-on fitting, with two holes in base of each portion, tapped for M6 bolts.
Chromium-plated.
Zinc diecast, with stainless steel pin.
