‘Deep-Dish’ Paddles, Slam-Bolt Models

By providing a deeper, longer case and relocating the lock cylinder, these ‘paddles’ allow easy and unimpeded access by a gloved hand. They are highly suited to larger doors and heavy items of plant. Stainless models, non-handed.

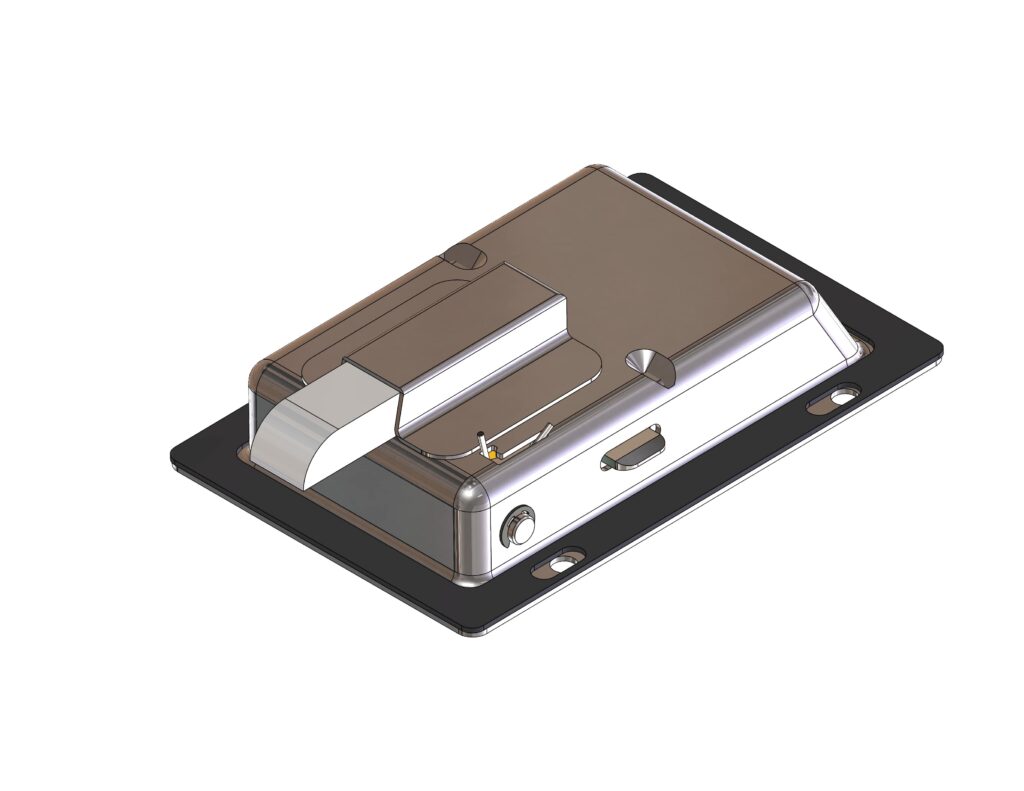

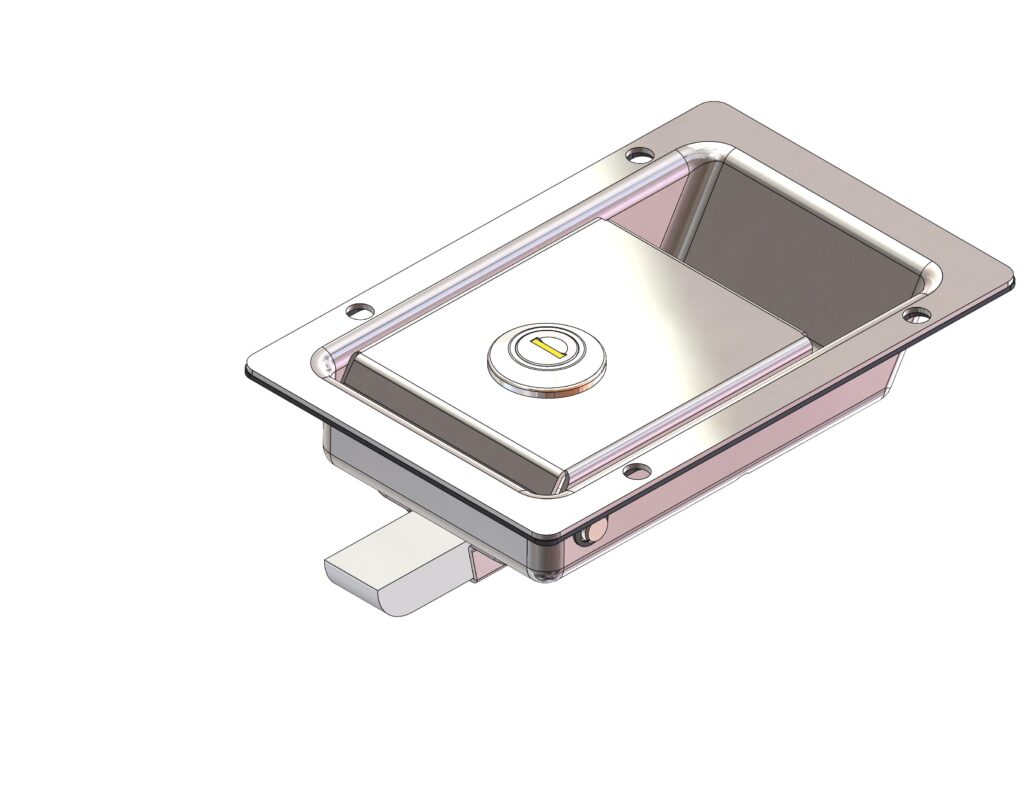

9/02028
9/02028
9/02028
9/02028

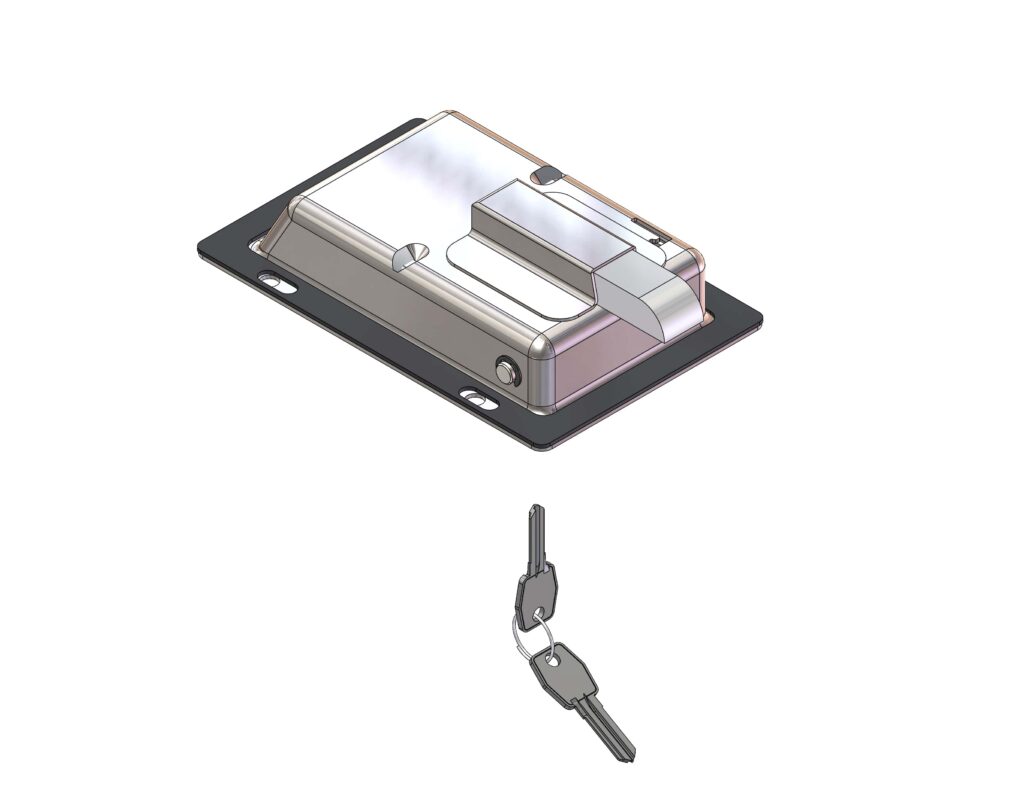

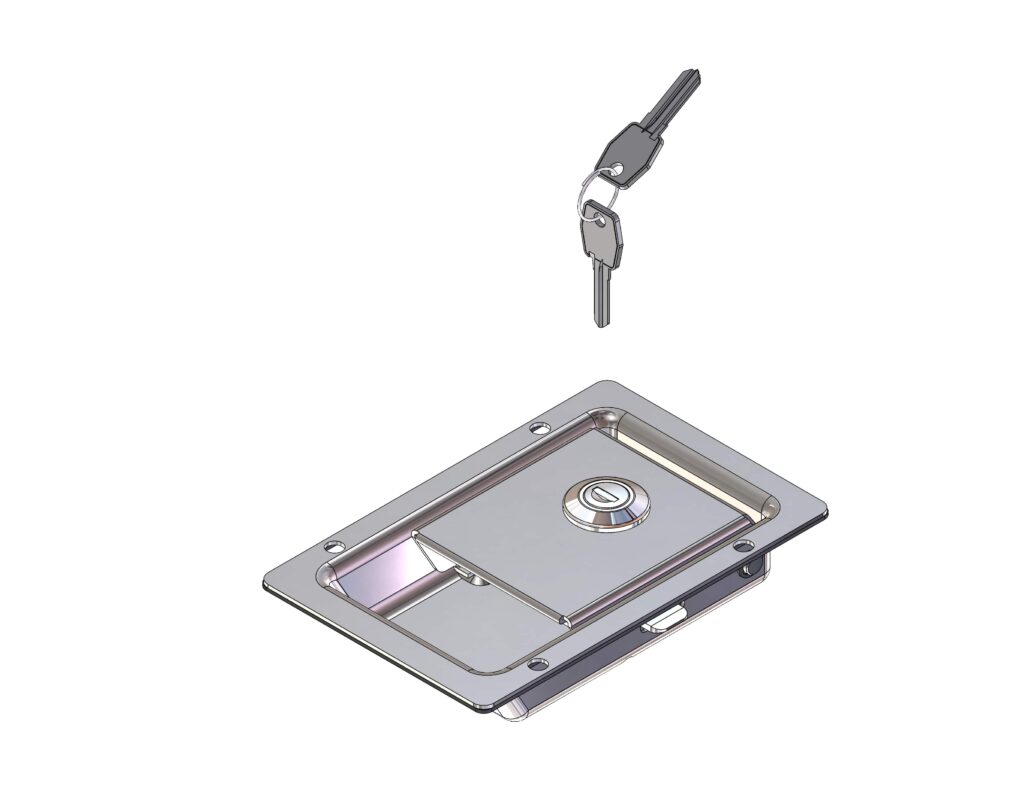

9/02028/01
9/02028/01
9/02028/01
9/02028/01

Ordering Code

Stainless steel models with plain rim
9/02028 Deep-dish paddle, locking
9/02028/01 As above, FT111
9/02029 Deep-dish paddle, non-locking

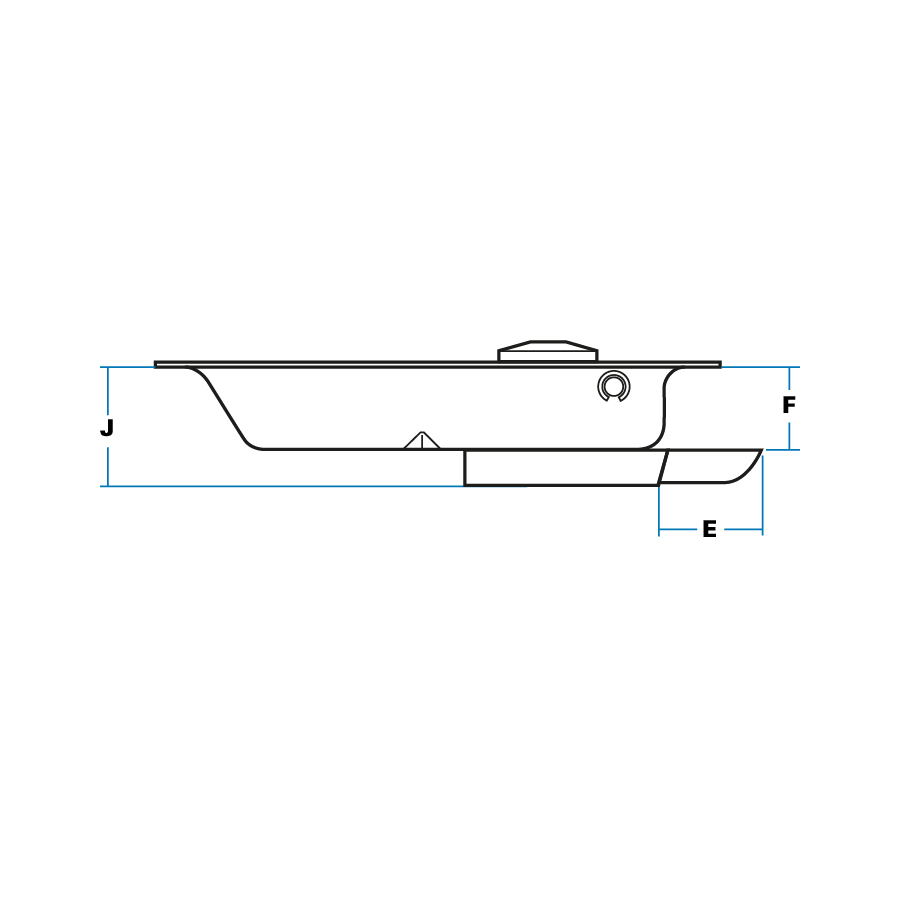

C13-Diagram 02

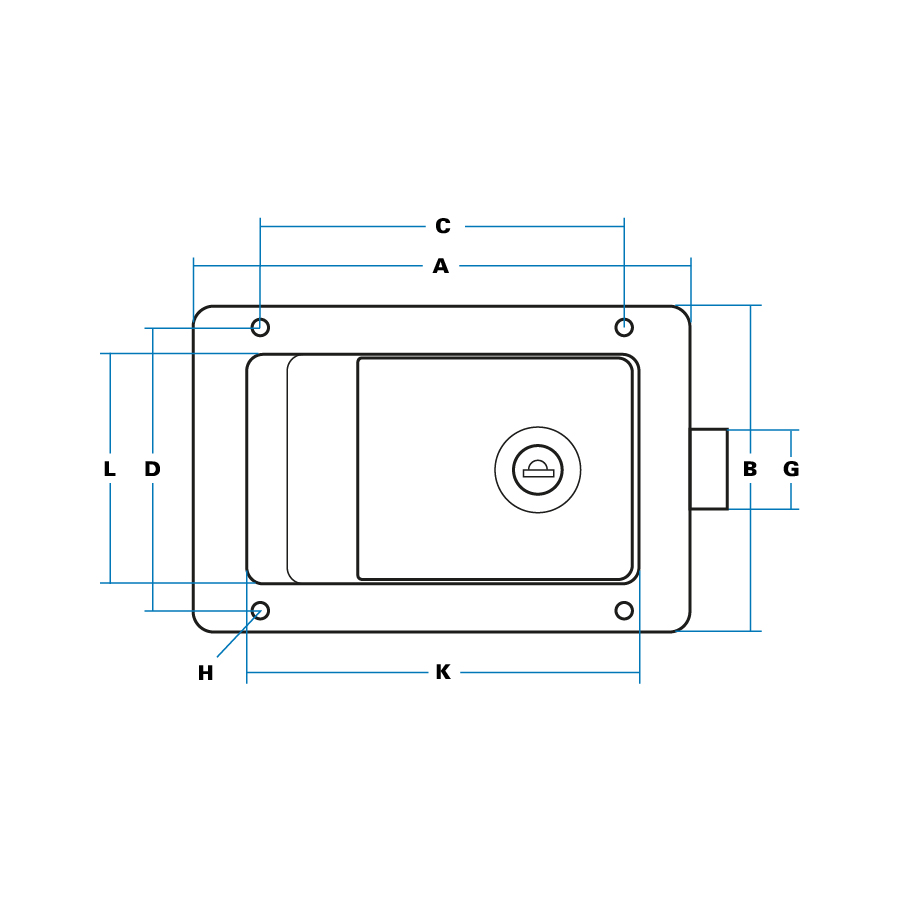

C13-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Case length 170 mm
B Case width 110 mm
C Hole centres 100 mm
D Hole centres 99 mm
E Bolt projection (max) 28 mm
F Bolt depth 30 mm
G Bolt width 19 mm
H Hole sizes (dia) 7 mm
J Maximum depth 44 mm
K Recess length 142 mm
L Recess width 82 mm
  • Deep dish (30 mm) with internal finger-shield and beaded edge on flap for easy operation. Stainless locking bolt slides on carrier, giving protection against flap being forced. Low-profile lock with double-sided key cylinder as standard.
  • Slam action against door frame or striker, released by lifting flap.
  • Locking with key blocks movement of flap, but slam bolt can still be slammed and opened from inside.
  • Pierced rim, internal welded studs, or plain rim with mild steel models (for weld-on fixing). Gasket supplied.
  • ‘FT’ keys as standard, with shuttered keyway. Optionally, ‘FS’, ‘92’, ‘DLP’ or ‘Ronis’ key types. Non-locking models.
  • Polished stainless steel, clear zinc-plated. Optionally, black powder-coated finish.
  • With stainless models, all components made in Grade 304. With mild steel models, case and flap in CR4 with mild steel slam bolt.
  • Alternative slam bolts (length, profile). Inside release knob.
  • Tested to destruction, paddle flap withstood a direct load of 42Nm (2.45KN). Equivalent to a ‘pull’ of 245Kg (540lbs). Endurance (cycle) testing: The latch was slammed/opened for over 50,000 cycles with no discernable wear.
