‘Deep-Dish’ Paddles, Hook-Latch Models

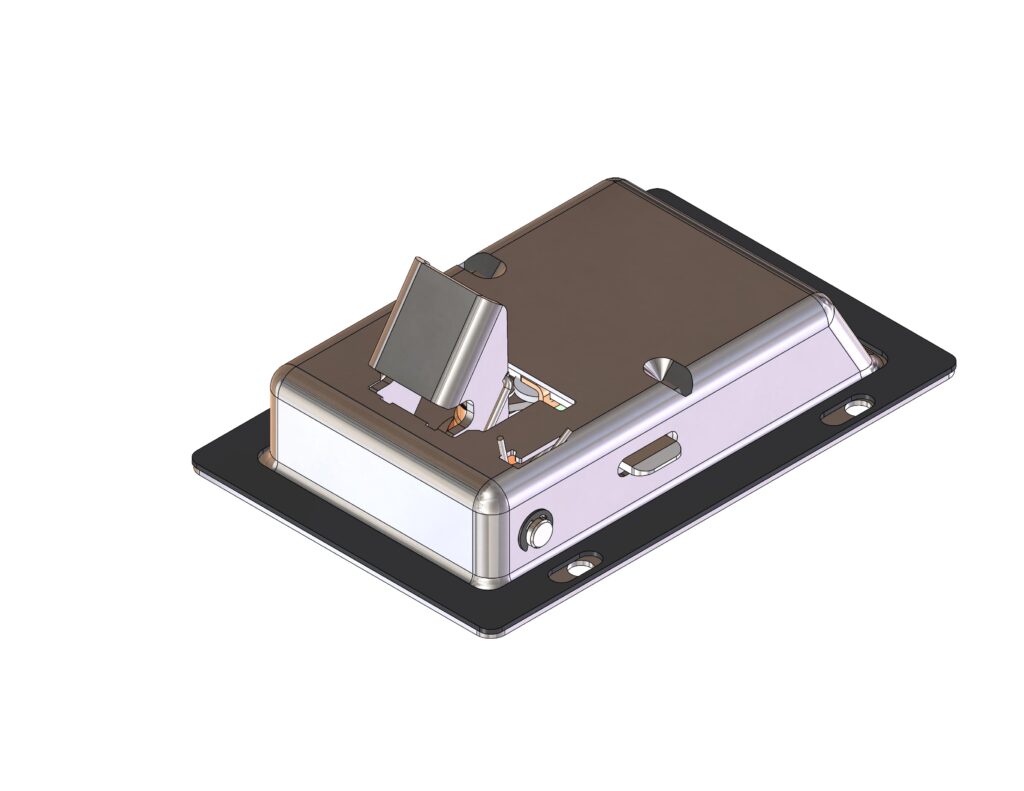

With this design a spring-loaded steel ‘hook’ projects vertically from the back of the paddle case, which engages with a rod or loop striker. This gives a smooth action and doors close easily without ‘bounce back’. These models are widely used on construction plant for toolboxes and engine covers.

Ordering Code

Stainless models with pierced rim
9/02022	Deep-dish paddle, locking

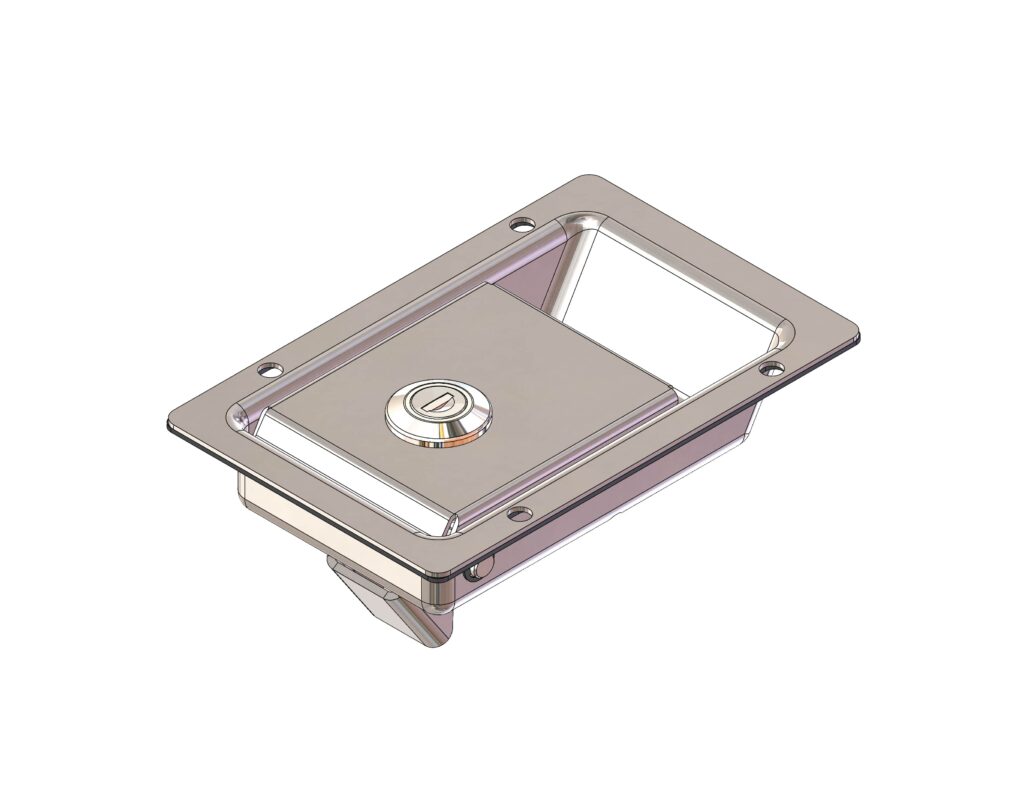

9/02022/01	As above, FT111

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

MTotal projection48 mm

A	Case length	170 mm
B	Case width	110 mm
C	Hole centres	100 mm
D	Hole centres	99 mm
E	Hook engagement	13 mm
F	Hook penetration	38.5 mm
G	Hook width (not shown)	30 mm
H	Hole sizes (dia)	7 mm
J	Maximum depth	67 mm
K	Recess length	142 mm
L	Recess width	82 mm
N	Hole centres	40 mm
O	Hole sizes	(dia) 7 mm
P	Total width	55 mm
R	Total depth	39 mm

Blind-mounting models have four studs (M6x10mm) welded on inside rim. Striker made in 6mm diameter stainless rod, welded to stainless backplate. Alternatively it can be supplied without bend (M=80mm) as 9/00406/02.

Deep dish (30 mm) with internal finger-shield and beaded edge on flap for easy operation. Stainless locking bolt slides on carrier, giving protection against flap being forced. Extra-wide ‘hook’ (30 mm) for good engagement and seating.
As door closes, the ramped face of the hook meets striker and is forced laterally through 30°. Once closed the spring action secures hook under striker.
Locking with key blocks movement of flap, but latch can still be slammed.
Pierced rim, internal welded studs, or plain rim (for weld-on fixing). Gasket supplied.
‘FT’ keys as standard, with shuttered keyway. Optionally, ‘FS’, ‘92’, ‘DLP’ or ‘Ronis’ key types. Non-locking models.
Polished stainless steel, clear zinc-plated. Optionally, black powder-coated finish.
With stainless models, all components made in Grade 304.
Tested to destruction, paddle flap withstood a direct load of 42Nm (2.45KN). Equivalent to a ‘pull’ of 245Kg (540lbs).
Endurance (cycle) testing: The latch was slammed/opened for over 50,000 cycles with no discernable wear.
