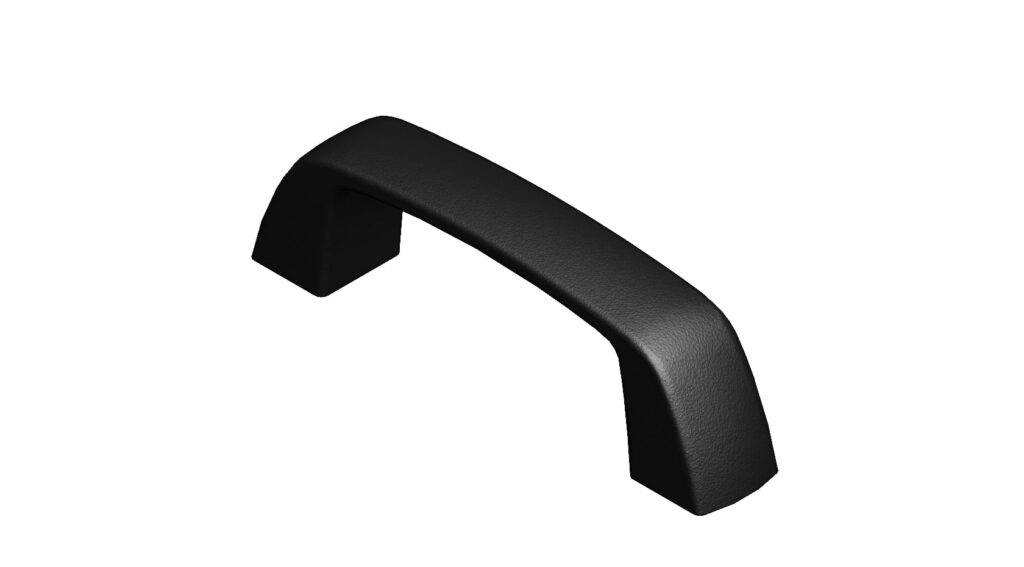

Concealed-Fix Moulded Grab Handle

Clean, sharp lines characterise this new addition to our range, intended for surface- mount applications where fixing from inside is desired. The handle contains threaded brass inserts, moulded-in during manufacture, and has a relatively high grip for a gloved hand.
9/01526
9/01526
9/01526
9/01526

Ordering Code

9/01526 Concealed-fix handle, black
G8-Diagram 01
G8-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Body Length 145 mm
B Body Width 26 mm
C Body Height (max) 43 mm
D Hole centres 117 mm
E Under grip 35 mm
H Hole sizes (depth) with M8 threaded inserts 16 mm
  • Black, fine textured finish.
  • Moulded in Nylon-6, glass-bead filled and UV stabilised.
  • LOAD TESTING:
    Tests carried out by an independent proof house gave following results:
    Parallel to fixing: Max load 5.50KN (616kg) before fracture.
    Vertical to fixing: Max load 4.50KN (504kg) before fracture.
    With ultimate strength over 500Kg we recommend a safe working load of 200Kg (440lbs) max.
