Compression Latch 0-30mm Grip

Adjustable grip compression lever latch. Lockable, screw mounted latch with diecast flap, moulded body. Low profile once latched. Push button actuation. Grip range 0-30mm or 31-57mm.
C-03620-Product 01
C-03620-Product 01

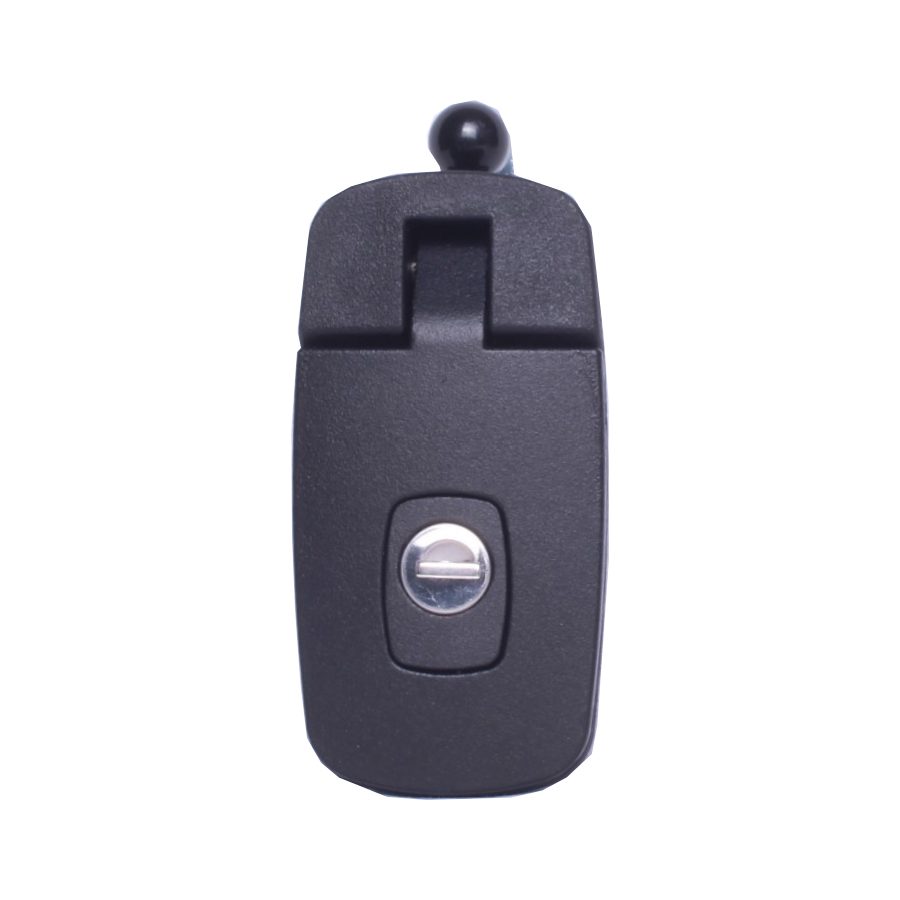

C-03620-Product 02
C-03620-Product 02

Ordering Code

9/03620 Compression Latch 0-30mm Grip
C-03620-Diagram 01
C-03620-Diagram 02
C-03620-Diagram 03

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Face Width 109mm
B Face Depth 55mm
C Total Length 127mm
D Face Height 10mm
E Face Height - Handle Raised 68mm
F Max Depth 50mm 79mm
G Compression Depth 0mm 29mm

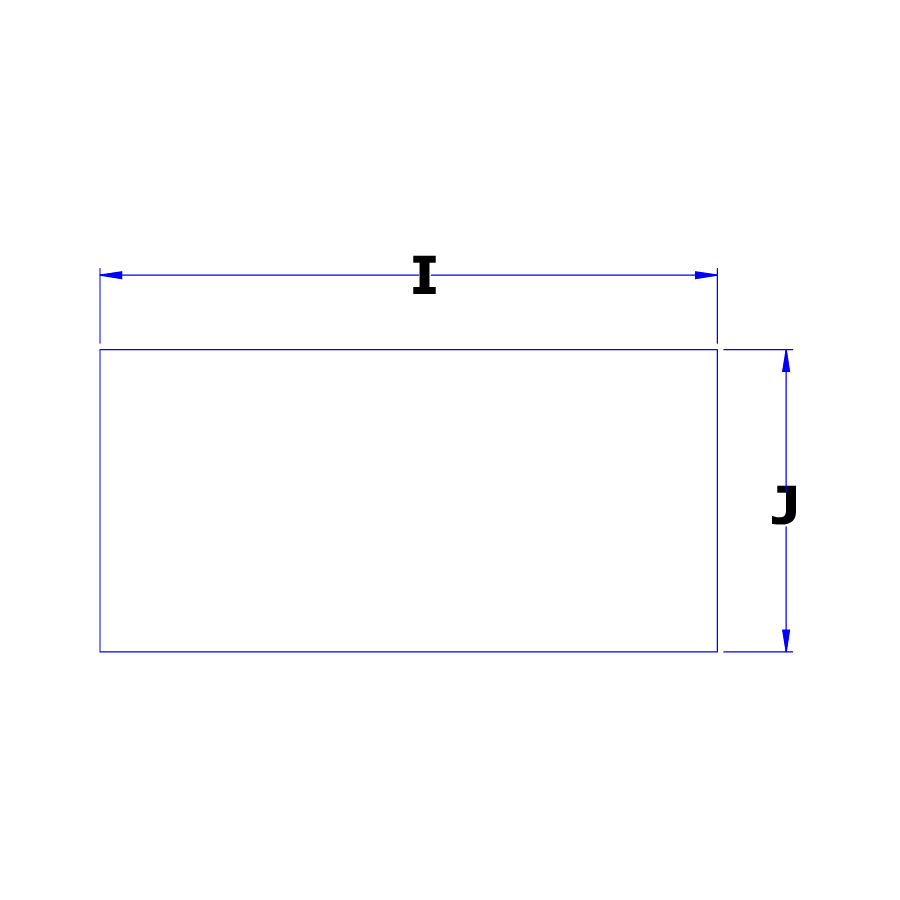

I Cutout Length 94mm
J Cutout Width - Widest 46mm
  • Compression.
  • 45° Handle Raise.
  • U-Clamp from Behind, Round-Cornered Square Cut-out = 94 x 46mm.
  • Black (Powder coat Handle & Self-Coloured Body) with Fine Textured Finish.
  • Body = PA6 Nylon with 30% Glass-Fill Strengthening, UV Stabilised.
    Handle = Zamak Alloy Die-Cast.
