Compartment Locks (19mm) with 90° Key-withdrawal

These are special models with 90° rotation, but in which keys can be withdrawn in both locked and unlocked positions. All details are as the 19mm ‘de-luxe’ specification, with spiked locating plate provided, but with straight latch bar as standard.

Download Our Section A Catalogue

Ordering Code

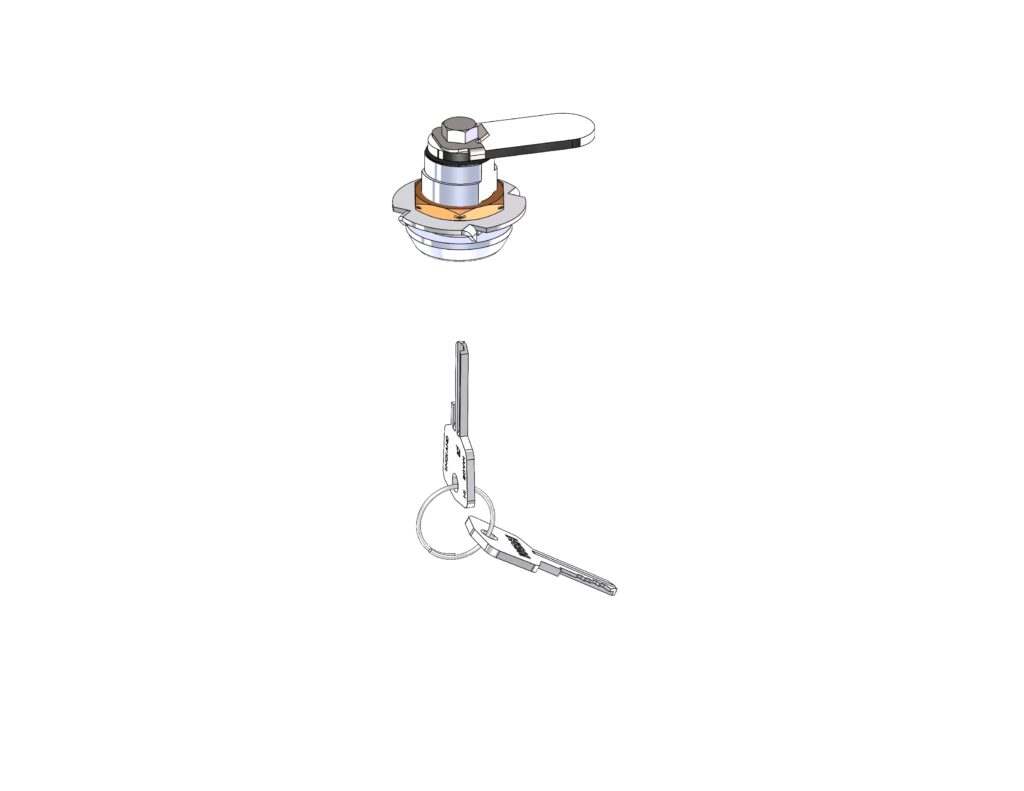

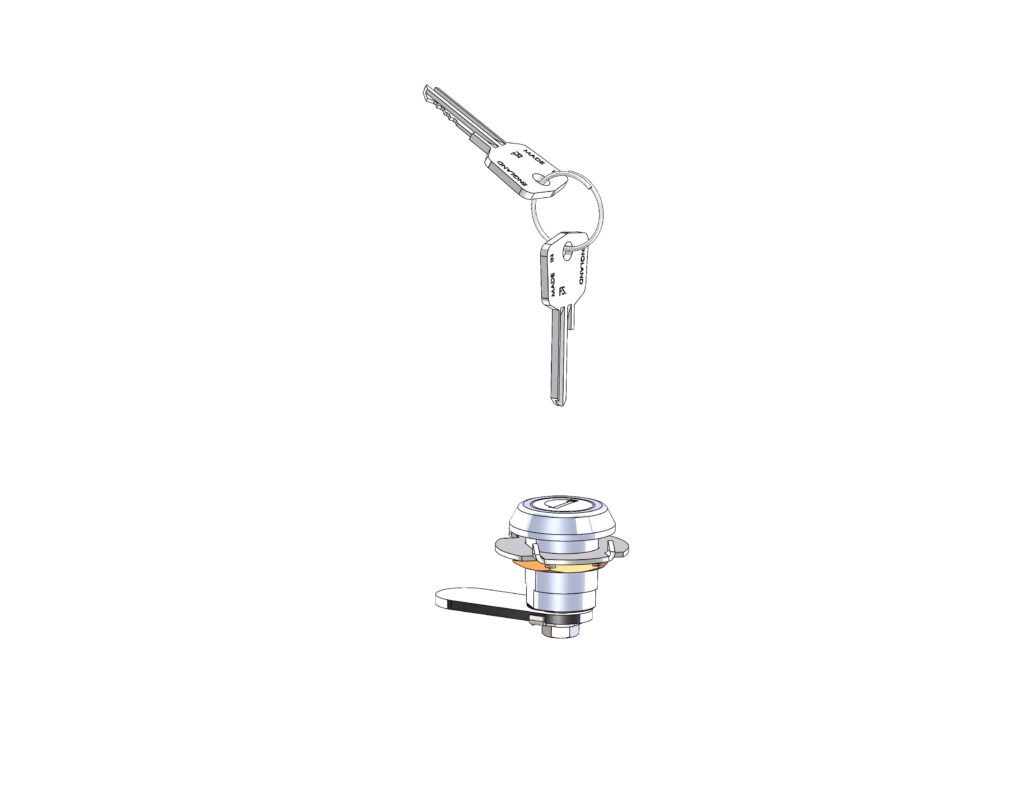

7/25250	19 mm lock, 90°, mixed keys

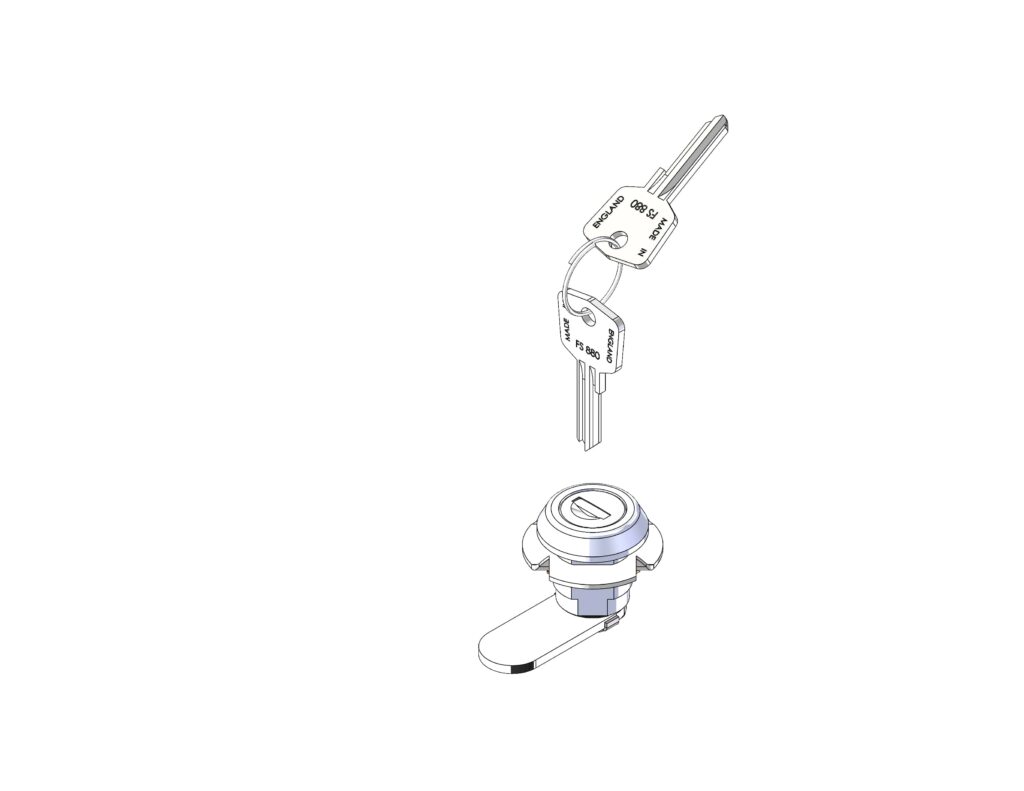

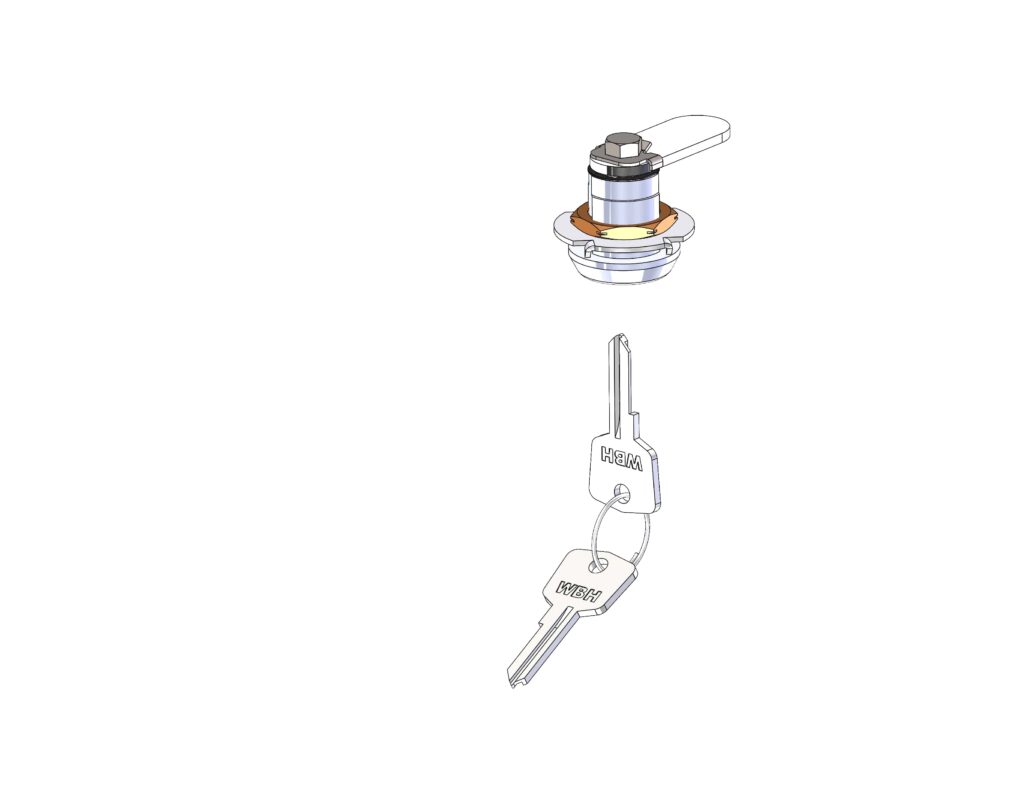

7/25250/01	19 mm lock, 90°, FS 880

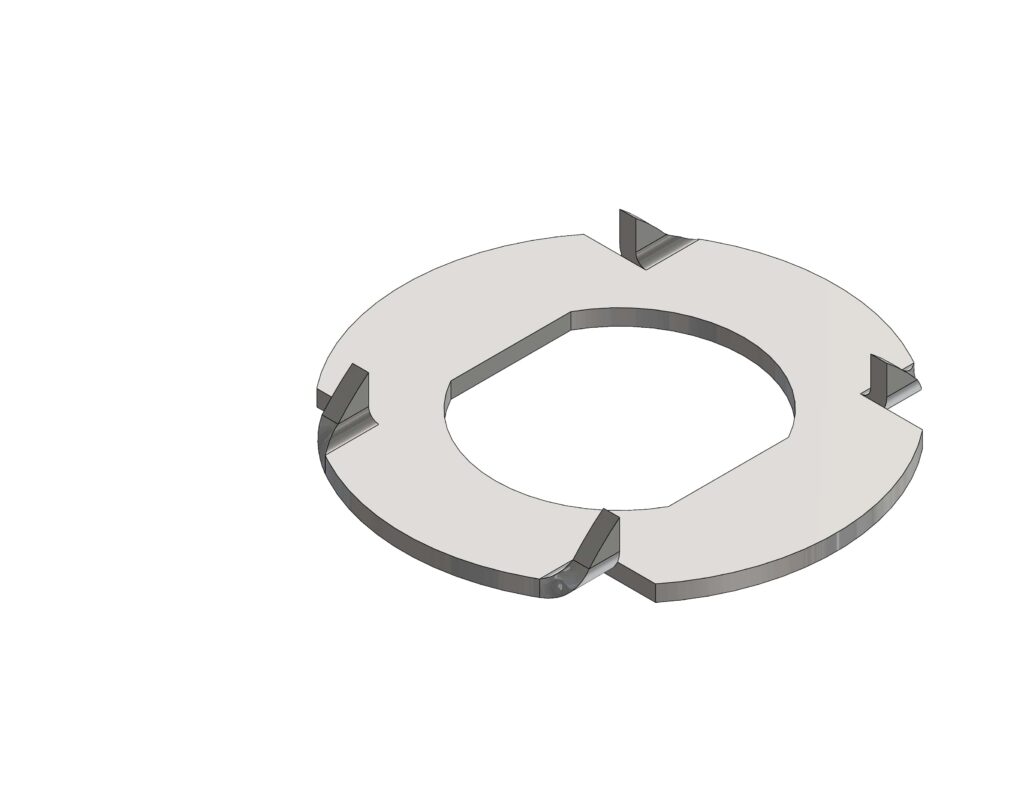

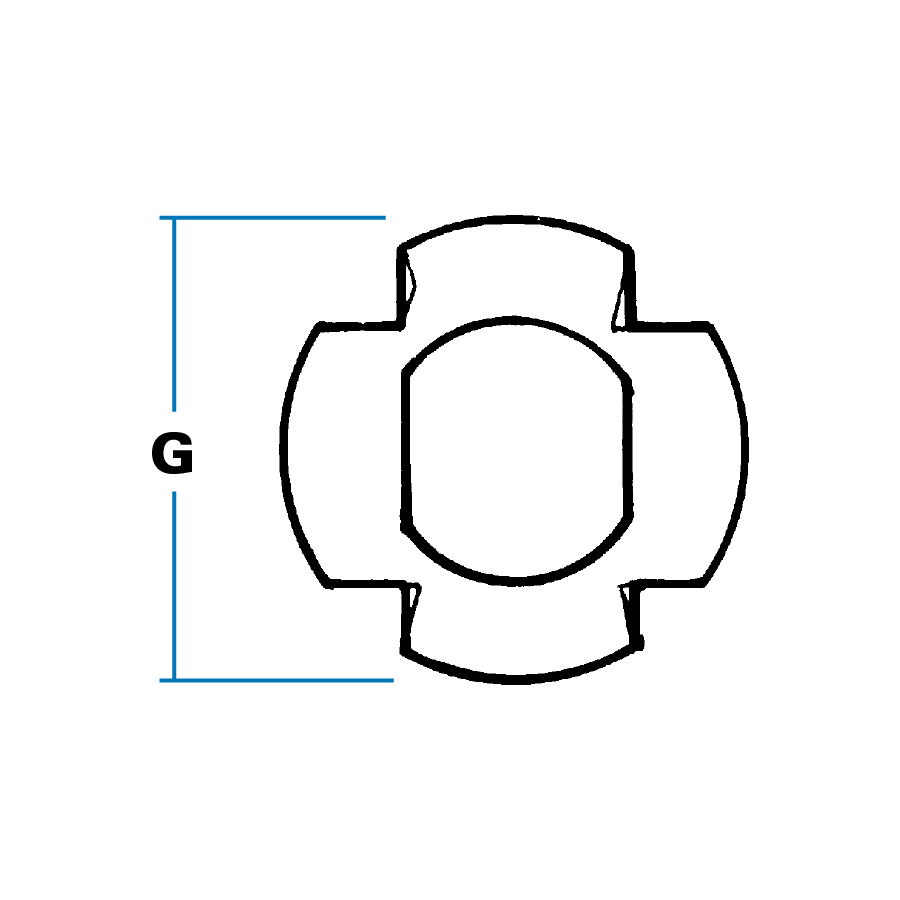

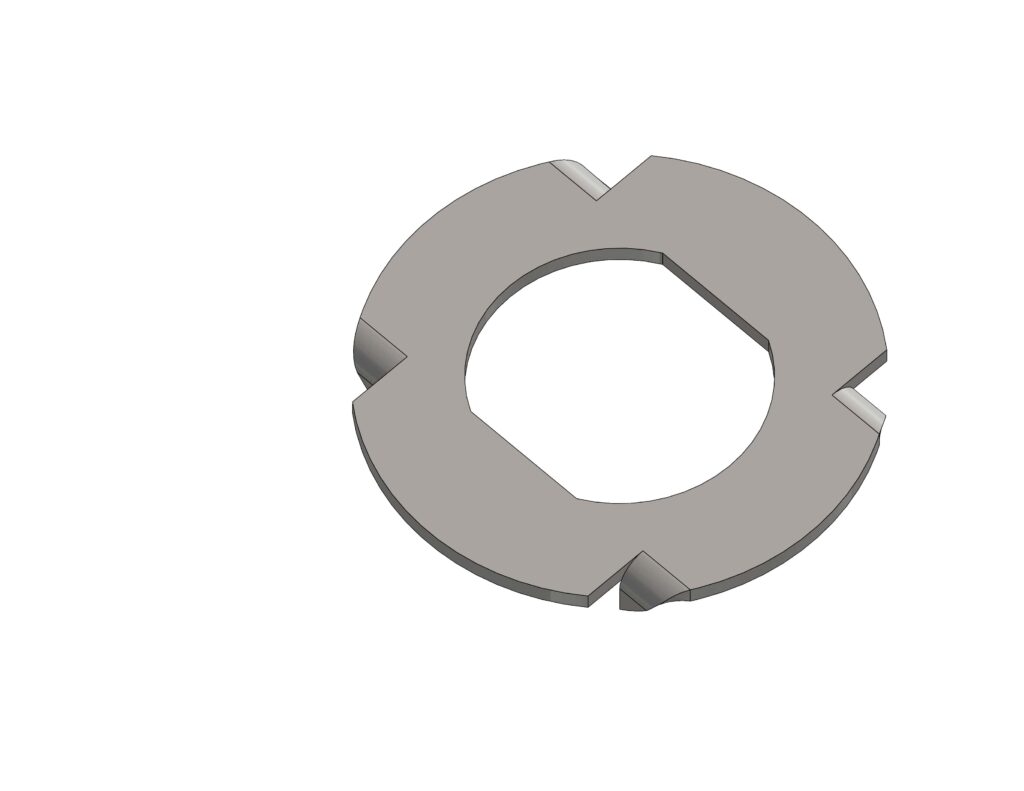

A5-Diagram 03-100 — 7/1905, spiked locating plate for wooden panels

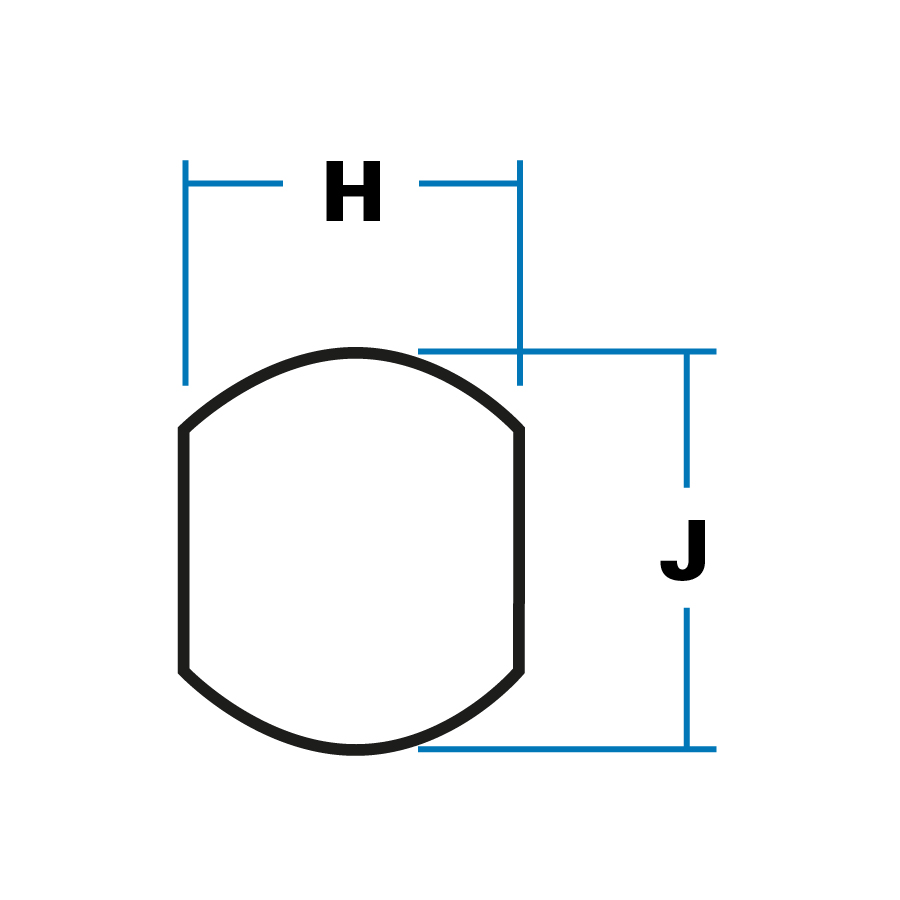

A5-Diagram 04-100 — Panel-piercing detail, Offset aperture by 45° to compensate for orientation of keyway

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

AHead diameter26 mm

B	Total depth	28 mm
C	Head projection	6 mm
D	Depth to latch	19 mm
E	Height of bar	35 mm
F	Thread depth	15 mm
G	Diameter, locating plate	34 mm
H	Piercing, across flats	17.5 mm
J	Piercing, diameter	20 mm

Latch bar can be fitted at 45° intervals Locating plate enables lock to be fitted into a round hole. Latch bar must be removed for mounting.

Keyway is oriented at 45° to ‘flats’ on body: adjust panel-piercing to compensate or use round hole with spiked locating plate.
‘FS’ keys as standard with ‘shuttered’ keyway. Optionally ‘FT’, ‘92’ or ‘DLP’ key types.
Wide choice of latch bars, finish options and accessory items. Special key numbers or sets on request.
