Compartment Locks (19mm) Standard Specification

Identical in most details to the ‘deluxe’ models, these locks have a simplified specification which enables them to be installed without need for dismantling latch bar.
Download Our Section A Catalogue
7/01905
7/01905
7/01905
7/01905
9/00103
9/00103
9/00103
9/00103
9/00105
9/00105
9/00105
9/00105
9/00107
9/00107
9/00107
9/00107
9/00108
9/00108
9/00108
9/00108

Ordering Code

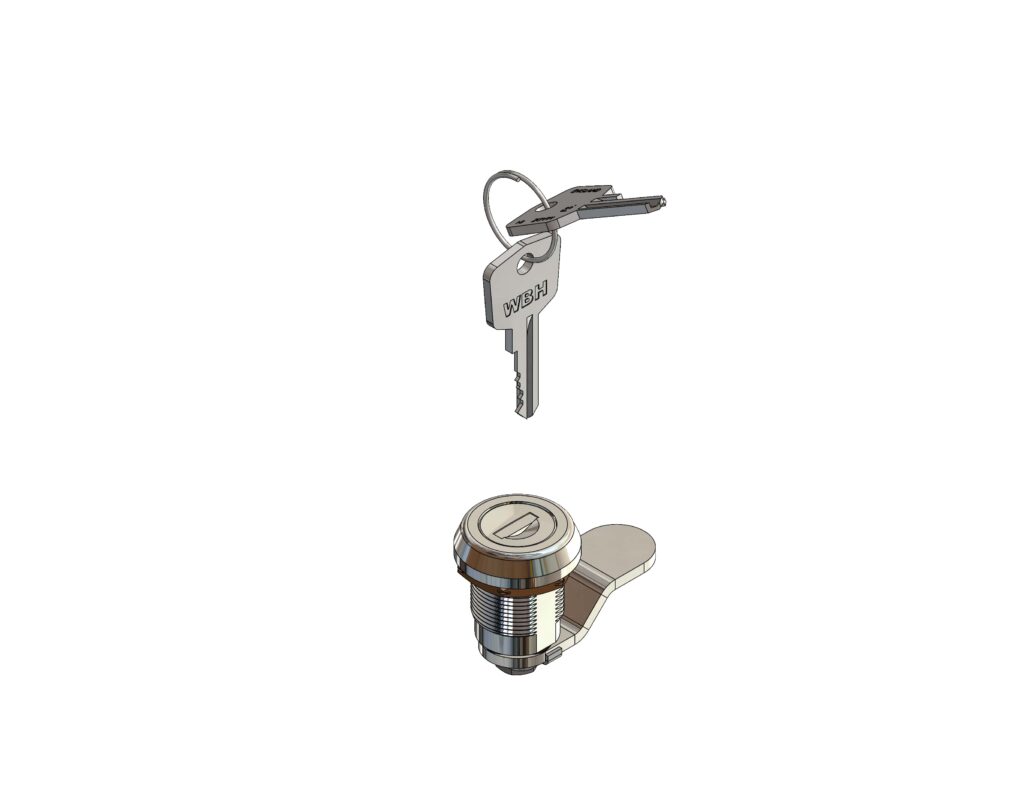

9/00107 Compartment lock, 90°, mixed keys

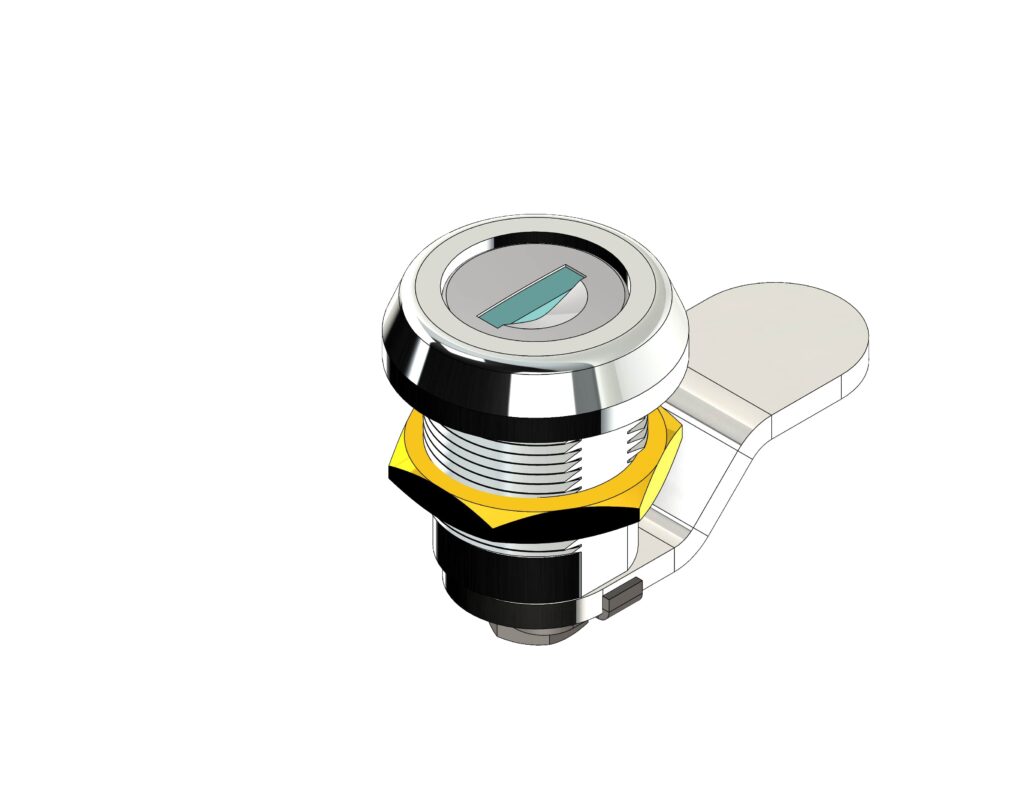

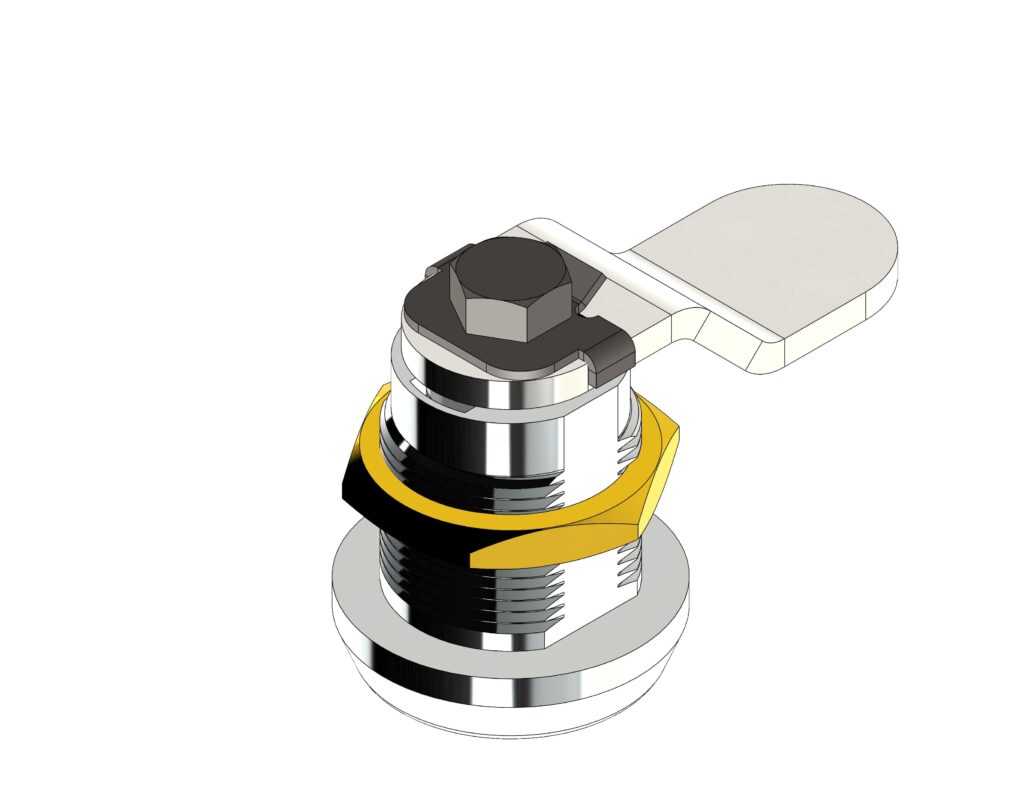

9/00103 Compartment lock, 90°, FS 880

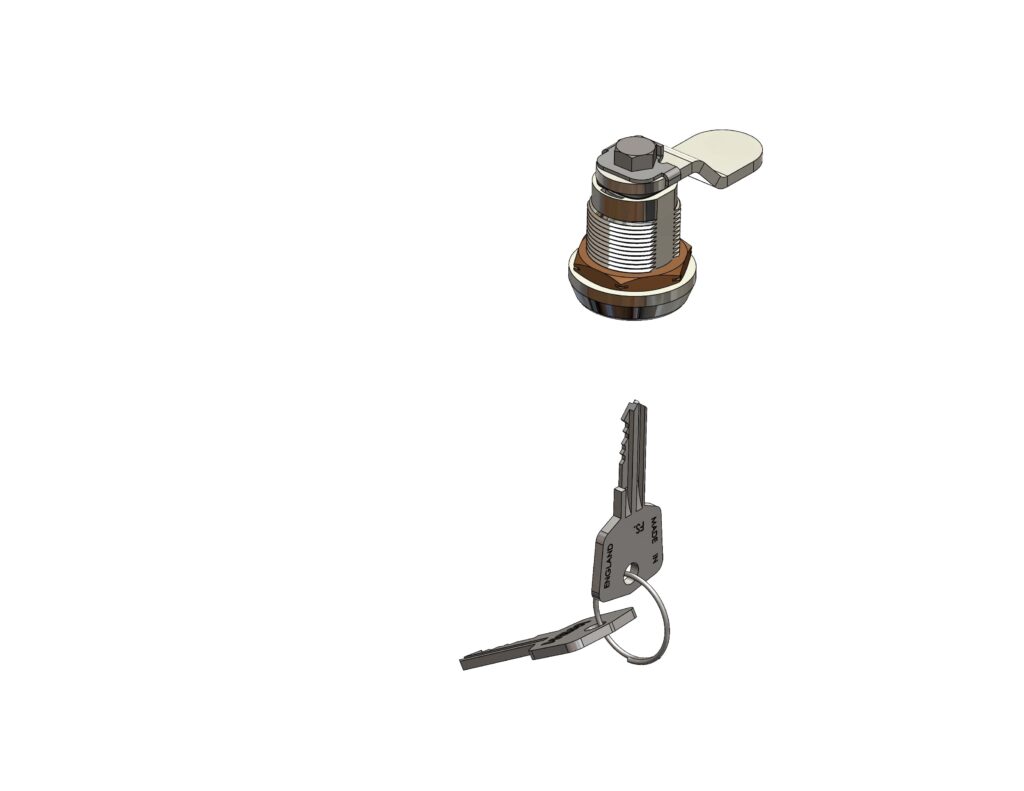

9/00108 Compartment lock, 180°, mixed keys

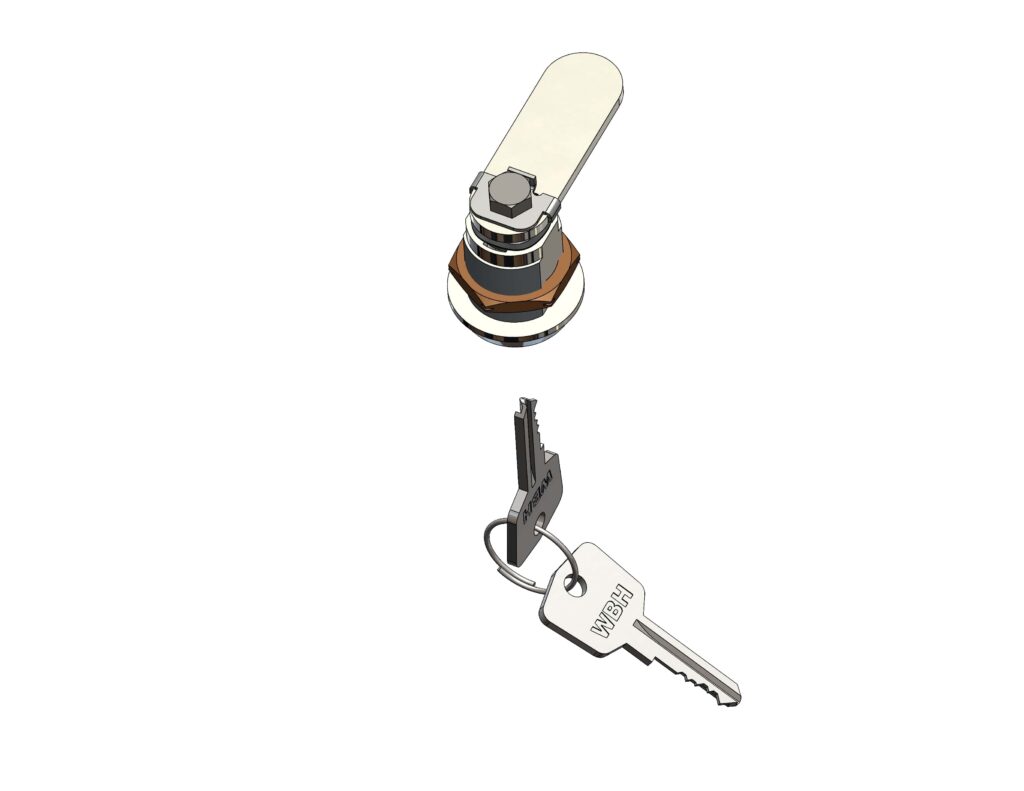

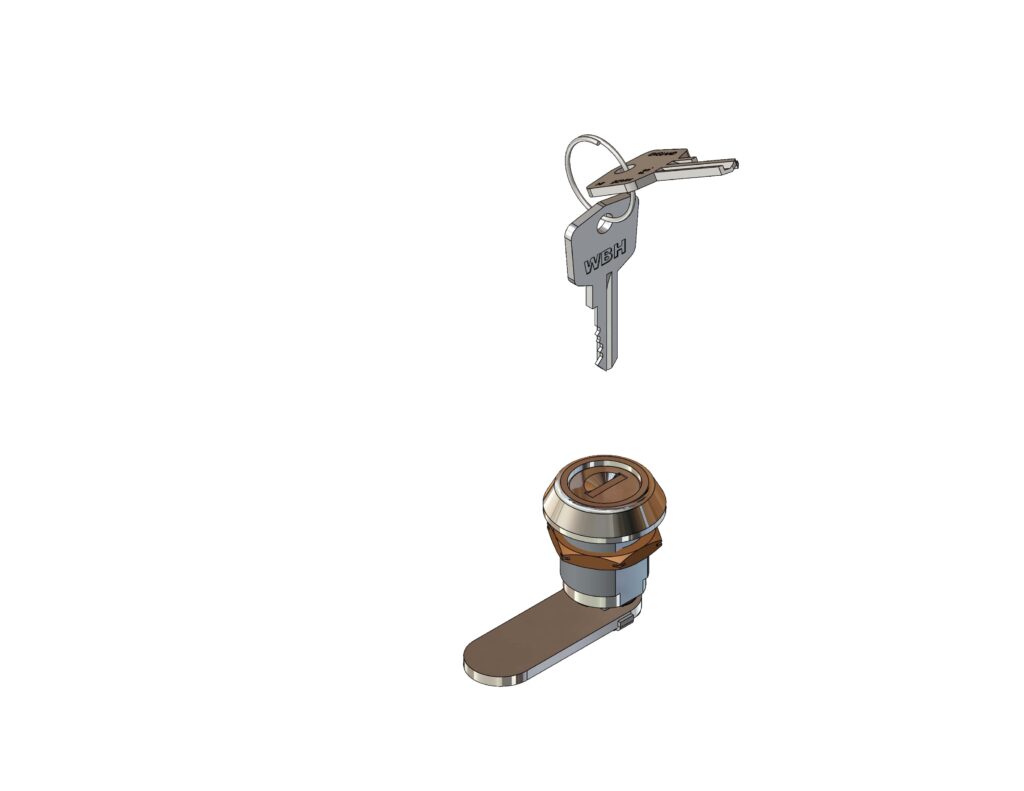

9/00105 Compartment lock, 180°, FS 880

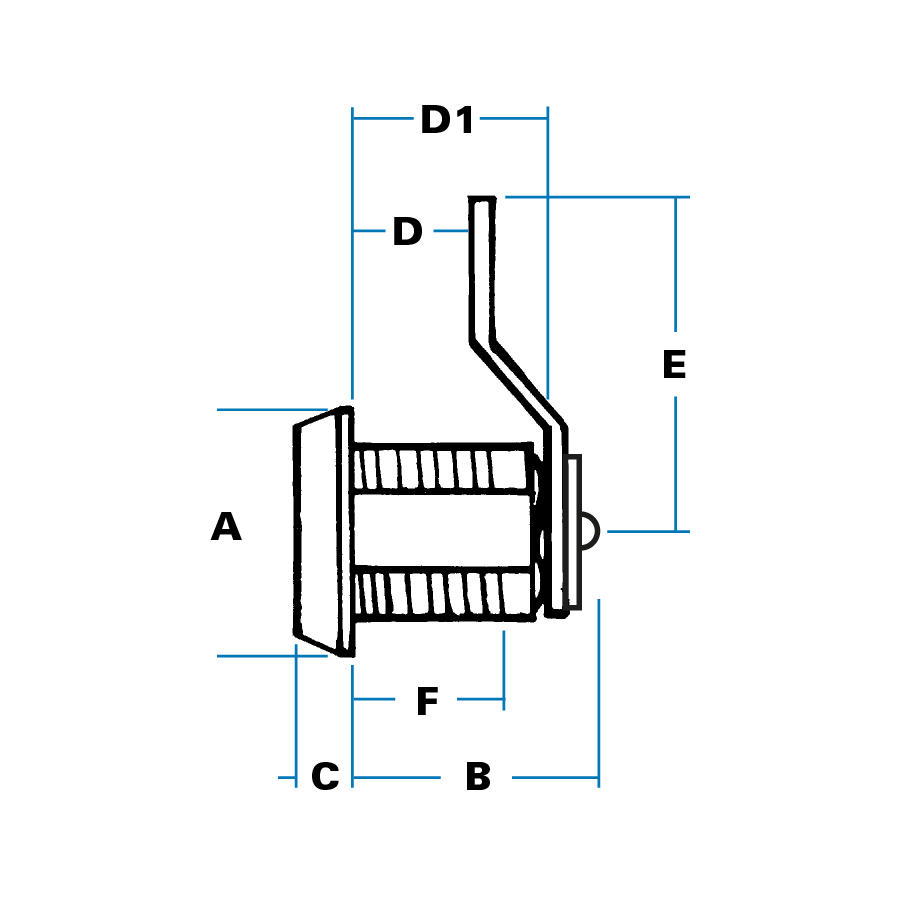

A4-Diagram 01-100
A4-Diagram 02-100
A4-Diagram 03-100

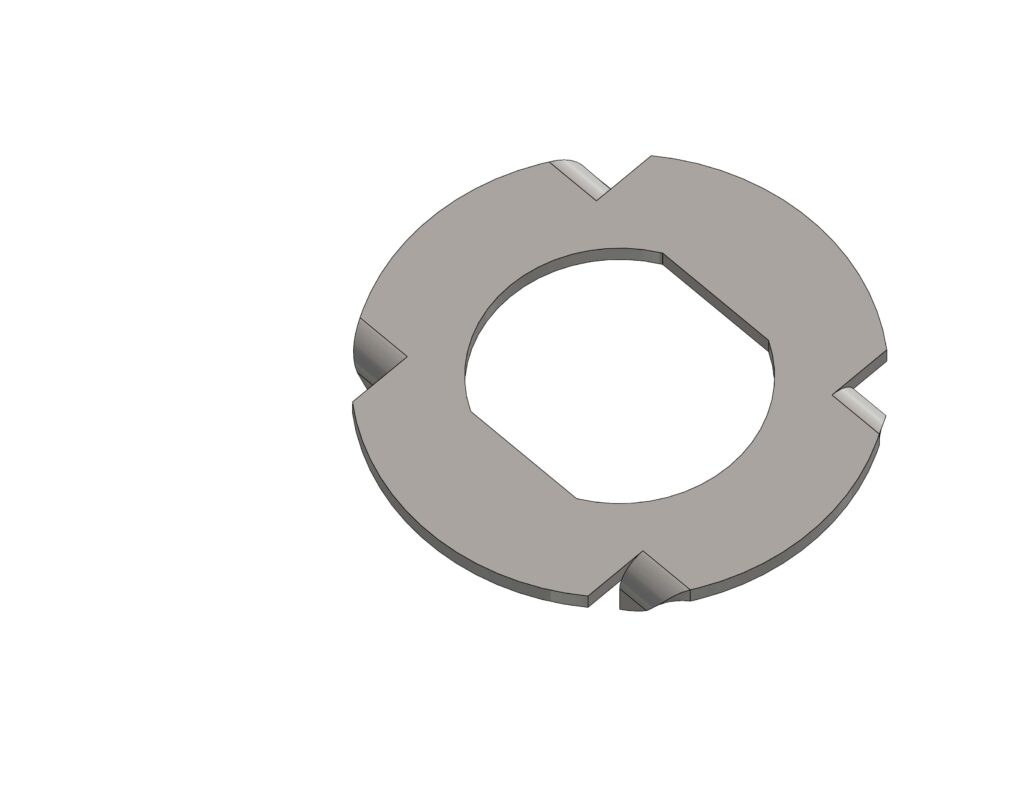

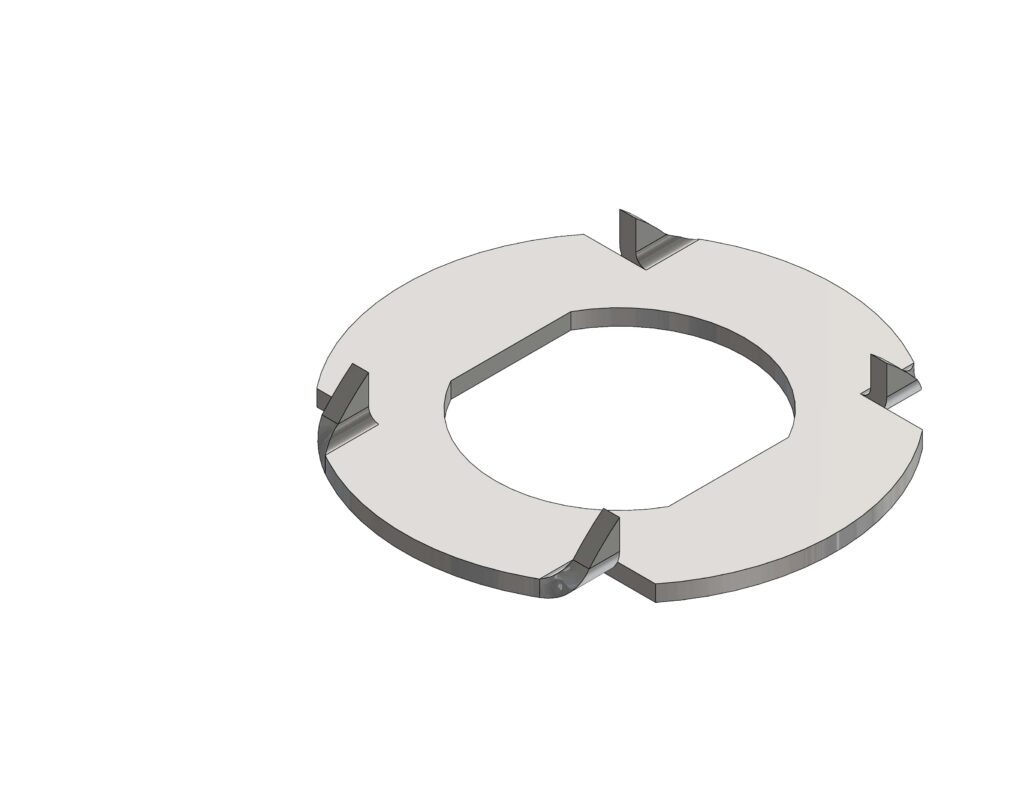

7/01905, spiked locating plate for fitting to wooden panels
A4-Diagram 04-100

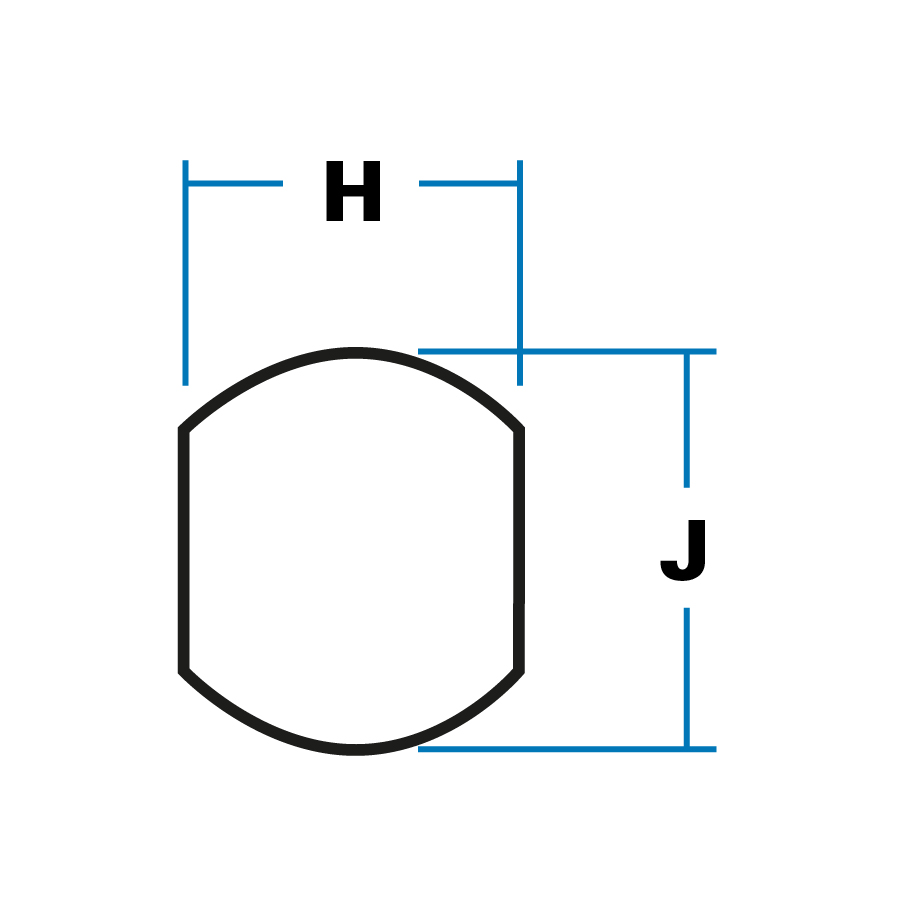

Panel-piercing detail

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

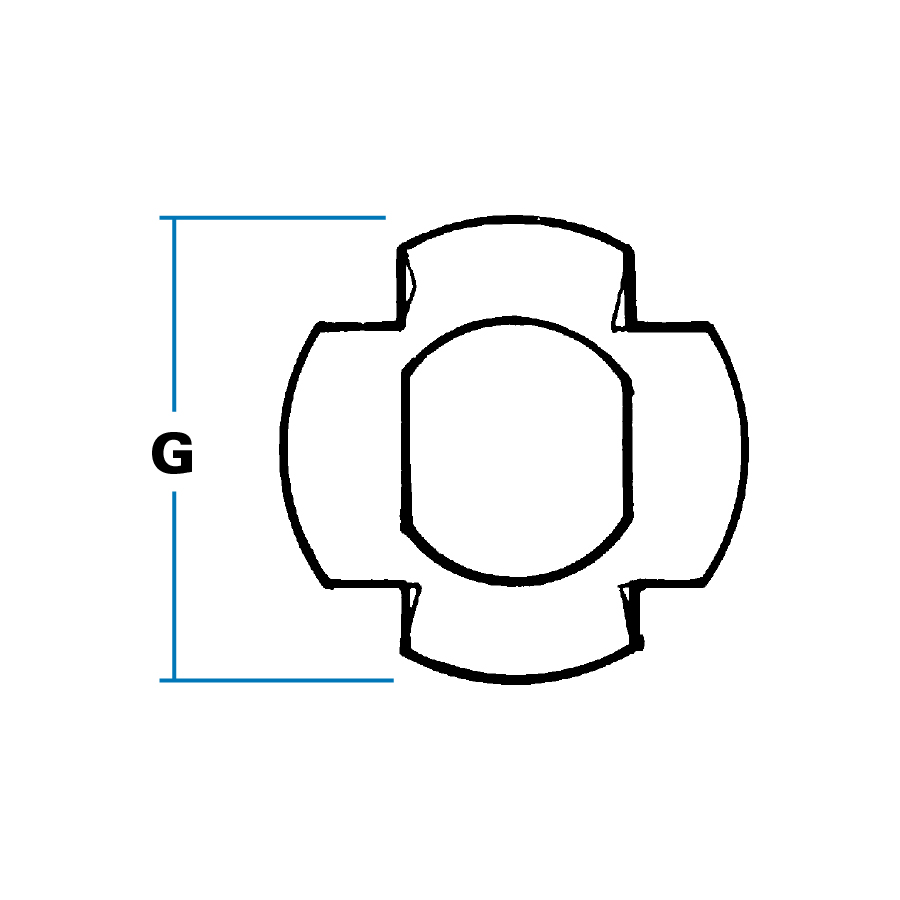

GDiameter, locating plate34 mm
A Head diameter 26 mm
B Total depth 27 mm
C Head projection 6 mm
D Depth to cranked latch 11 mm
D1 Body depth 19 mm
E Height of bar 37 mm
F Thread depth 15 mm
H Piercing, across flats 17.5 mm
J Piercing, diameter 20 mm
Latch bar reversible, can be fitted at 45° intervals. Locating plate must be ordered separately with this specification.
  • 90° or 180° rotation as shown. Note that key does not withdraw in unlocked (9 o’clock) position with 90° models.
  • ‘FS’ keys as standard with ‘shuttered’ keyway. Optionally ‘FT’, ‘92’ or ‘DLP’ key types.
  • Chromium-plated as standard: black or zinc-plated to order.
  • Wide choice of latch bars, finish options and accessory items. Special key numbers or sets on request.
