‘Claw’ Latches Side-Mount

Extremely versatile units which sit within a compartment and slam against a striker peg to provide a very positive engagement. They release by pressure against top trigger or by remote cable. Used for top-opening hatches and covers where latch is concealed below edge of door or base unit.

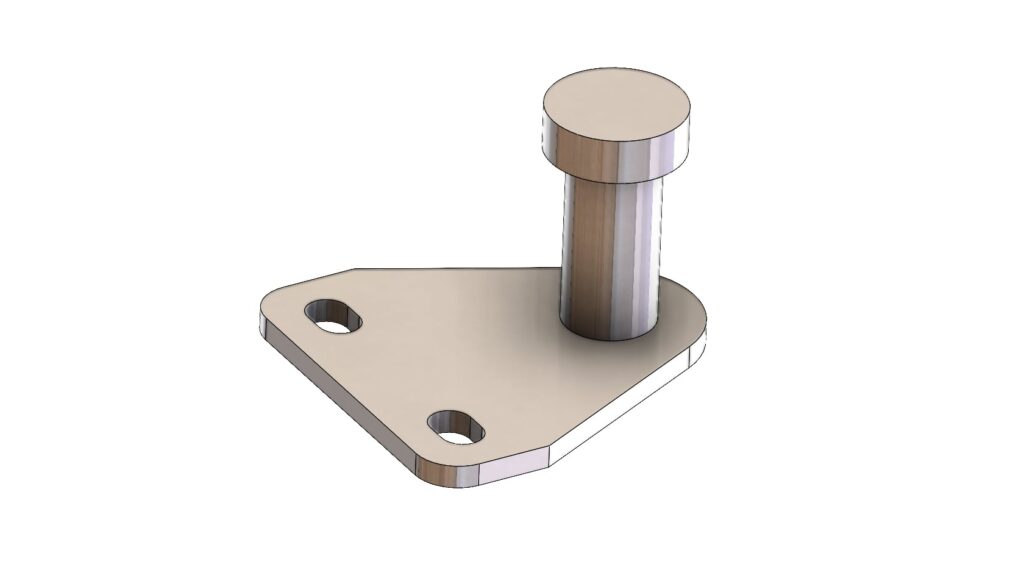

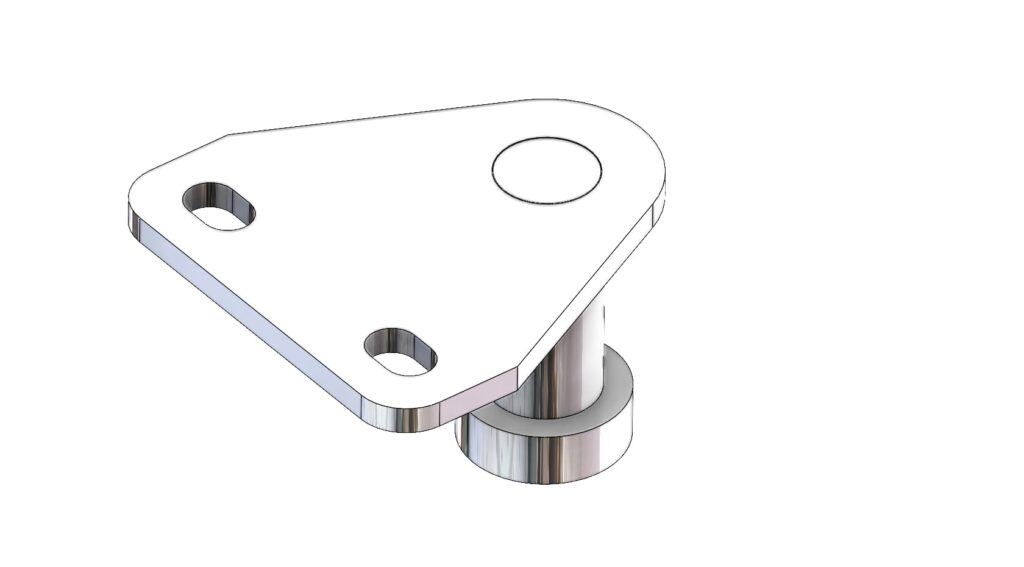

9/00724
9/00724
9/00724
9/00724

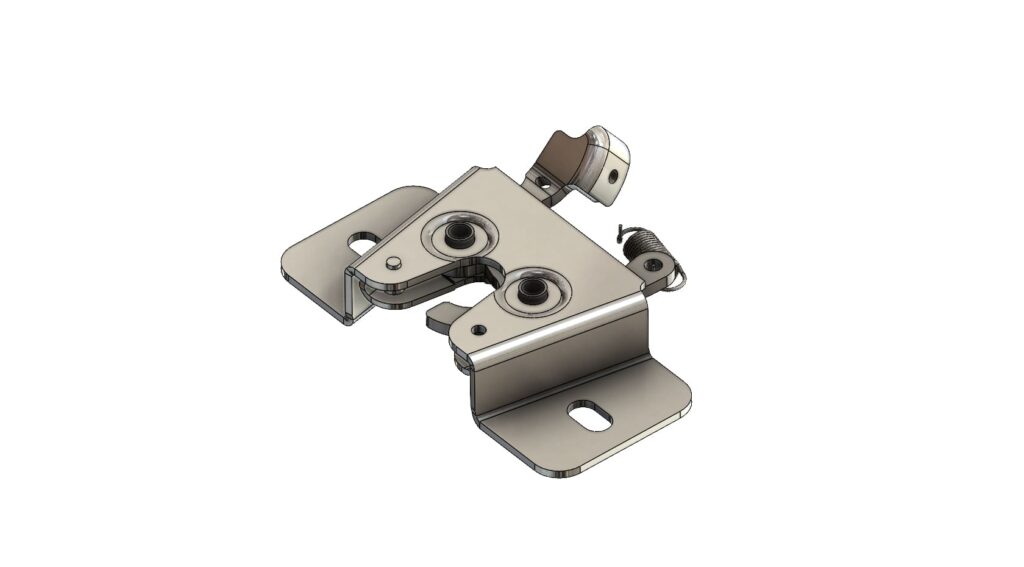

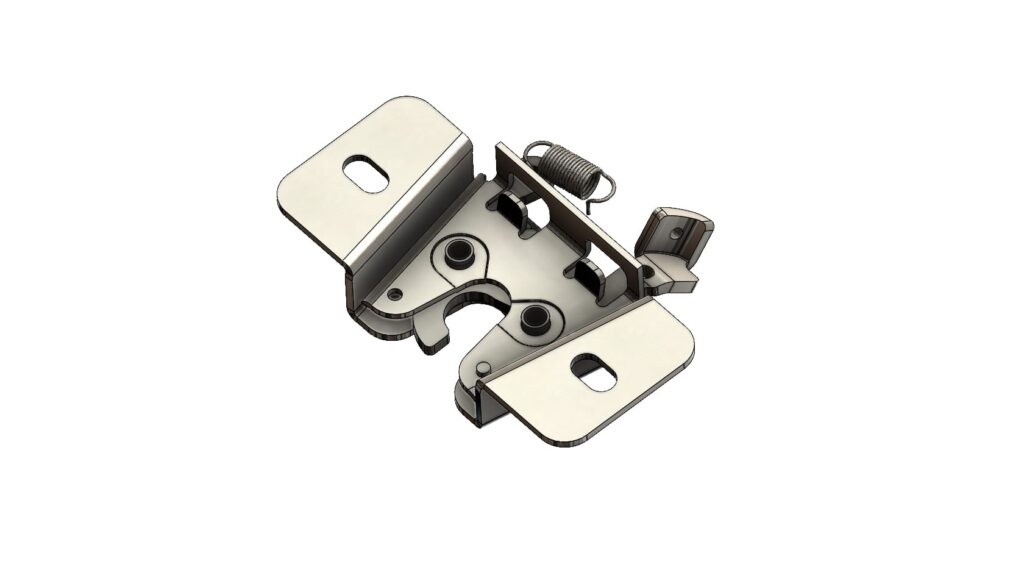

9/01283
9/01283
9/01283
9/01283

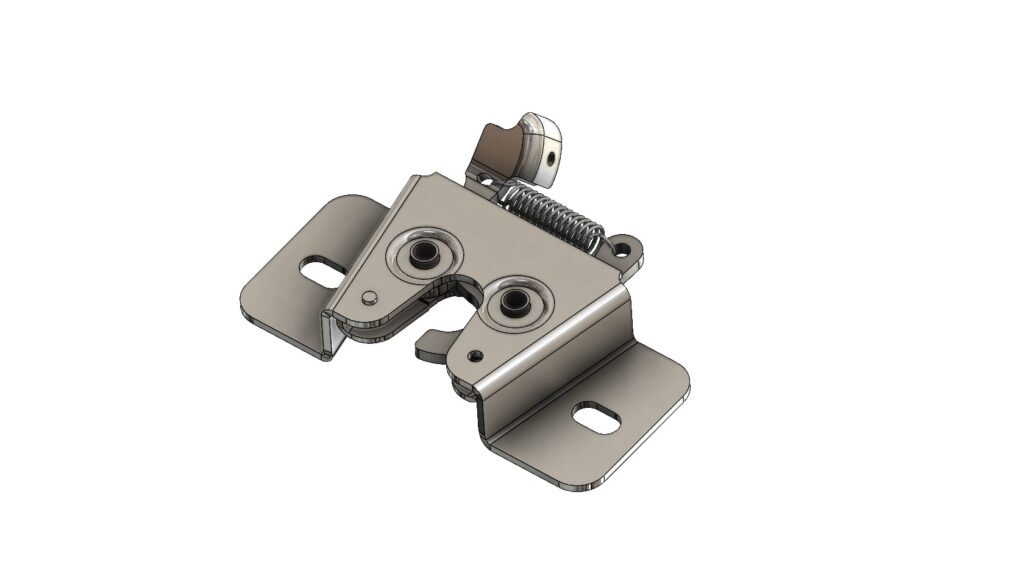

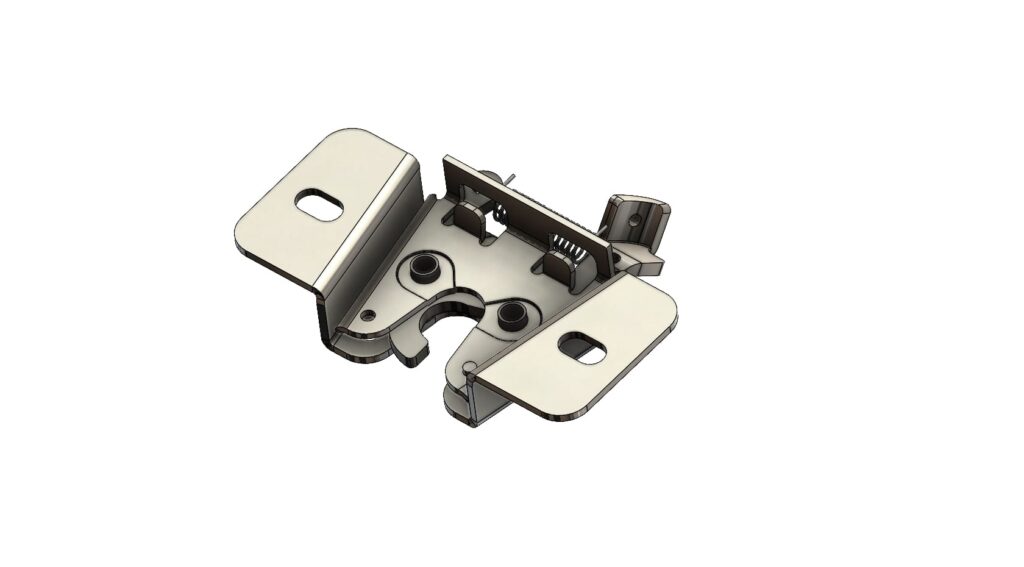

9/01583
9/01583
9/01583
9/01583

Ordering Code

9/01283 Claw latch RH, side-mount
9/01583 Claw latch LH, side-mount
9/00724 Pin-striker 52 mm

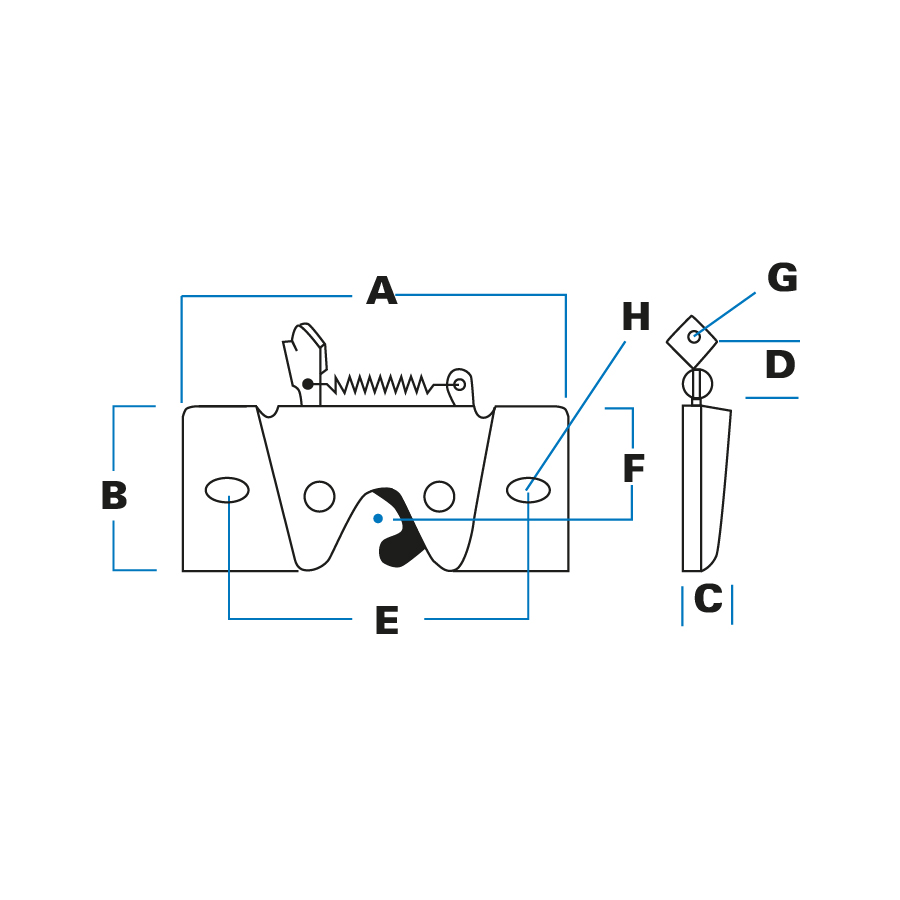

D15-Diagram 01

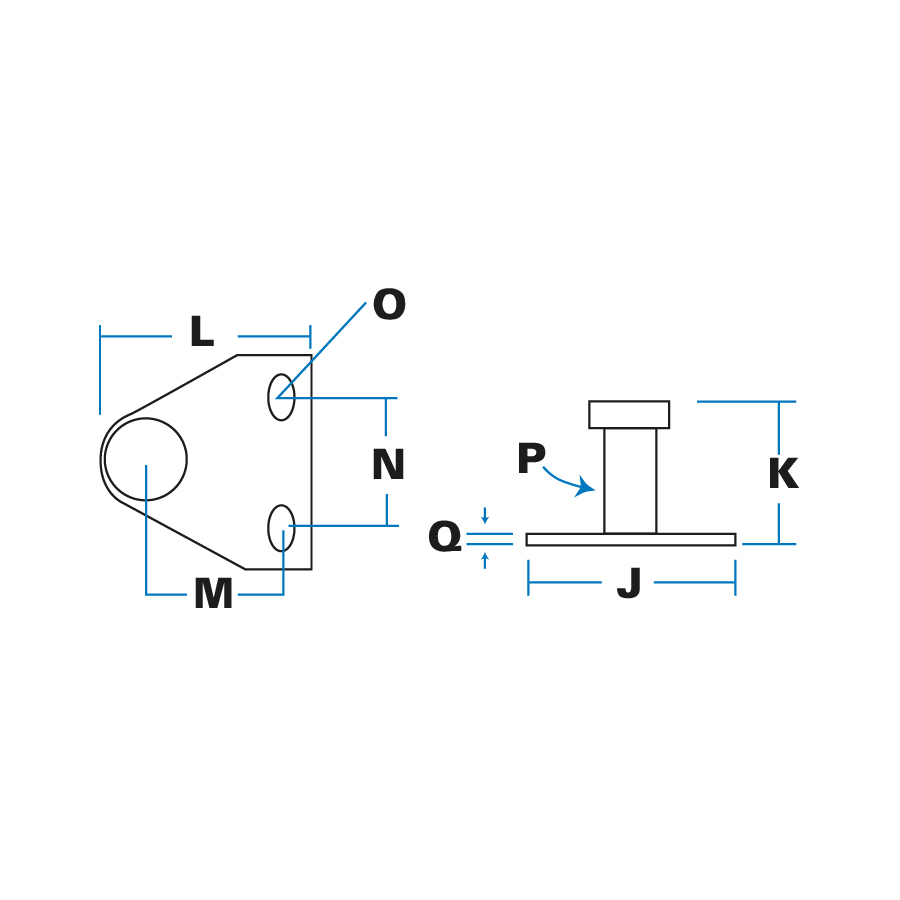

D15-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 100 mm
B Height 50 mm
C Width 19 mm
D Location 21 mm
E Hole Centres 76 mm
F Location 30 mm
G Hole size (diameter) 3 mm
H Hole sizes 6.5 x 12 mm
J Width 51 mm
K Height 35 mm
L Length 51 mm
M Location 32 mm
N Hole centres 32 mm
O Hole Sizes 5.5 x 9 mm
P Pin diameter 12.5 mm
Q Thickness 3 mm
Maximum force on trigger to release: 2.5kg
  • Slam-action against pin or loop striker plate. Both ‘hands’ available as illustrated.
  • Claw engages with striker and is released by pressure on top trigger or can be operated remotely via cable to hole in trigger plate.
  • Plant-on fixing through elongated holes in side flanges.
  • Zinc-plated latch and strikers.
  • Anti-burst properties
    When rig-tested these latches can achieve values in excess of 6.0KN transverse load (direct pull). However they must not be used for passenger restraint doors.
