‘Chunky’ Commercial Filler Caps & Necks

This model has been used by every British truck manufacturer as well as for ‘static’ applications such as power generator sets. Recommended specification is fully sealed but the ‘Waso’ venting system will suit some applications. Caps fit “internally-flanged” neck-ends (illustrated), which can be brazed onto a plain filler pipe, generally at 76 mm (3-inch) diameter.
600281
600281
600281
600281
600296
600296
600296
600296
602935
602935
602935
602935
602936
602936
602936
602936
616900
616900
616900
616900
616901
616901
616901
616901

Ordering Code

‘Non-vented’ models with 68 mm bayonet

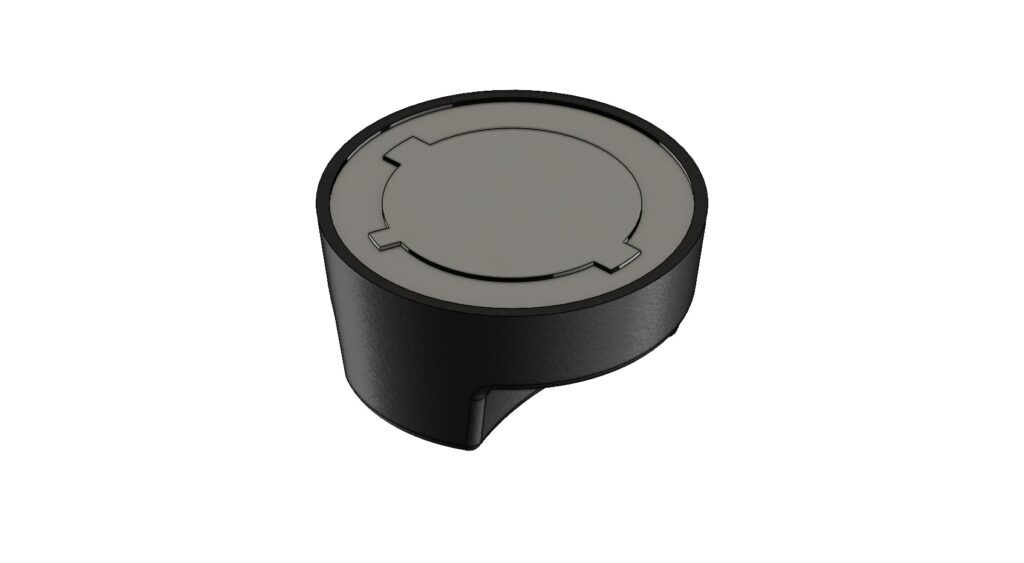

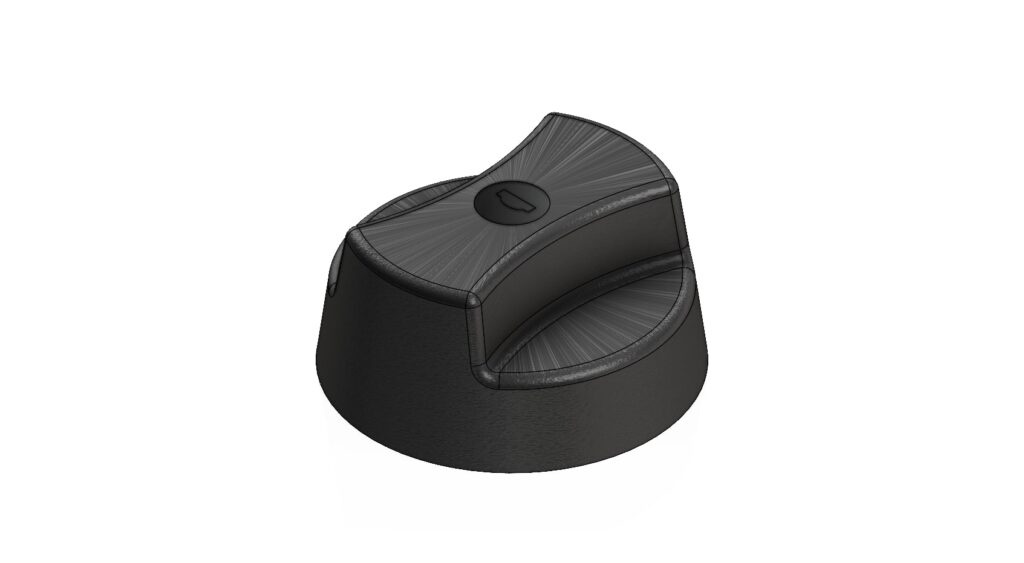

602935 ‘Chunky’ cap locking, black

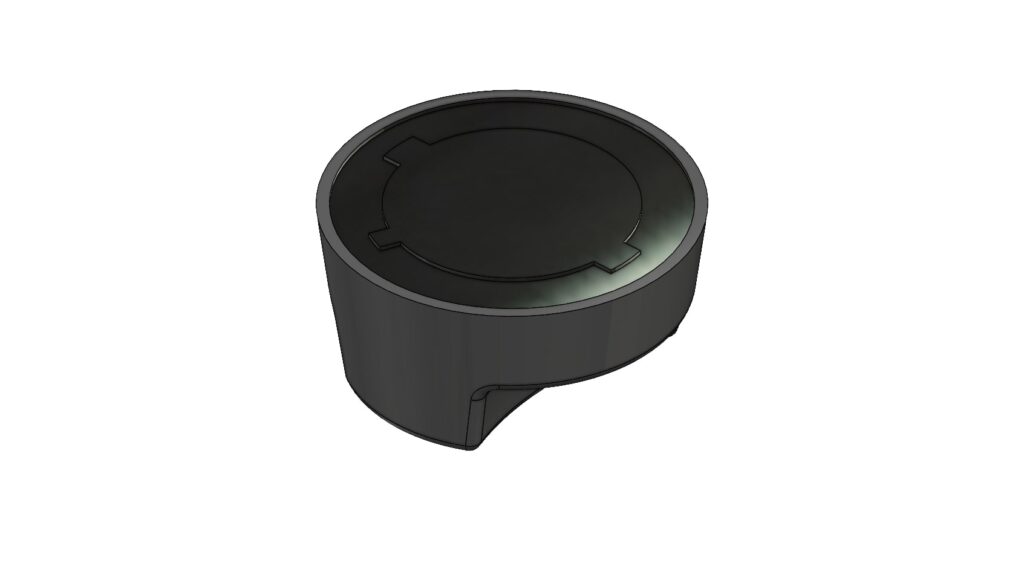

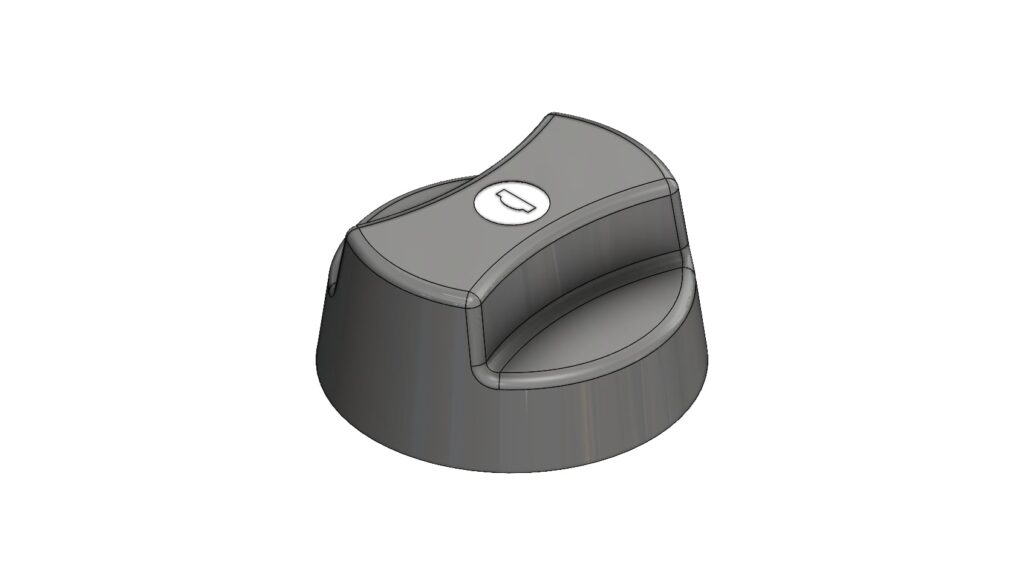

602936 ‘Chunky’ cap, non-locking, black

‘Vented’ models with 68 mm bayonet

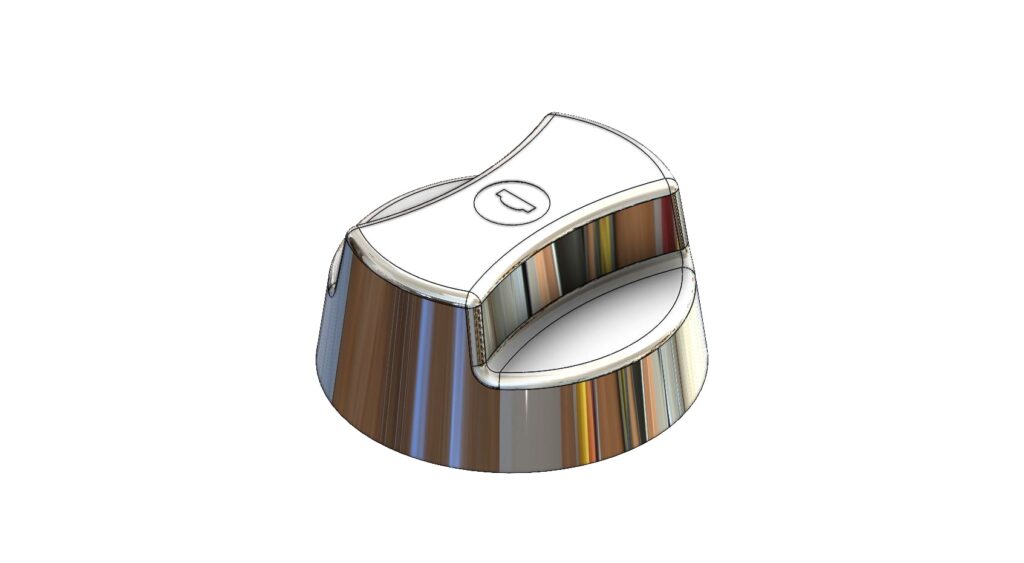

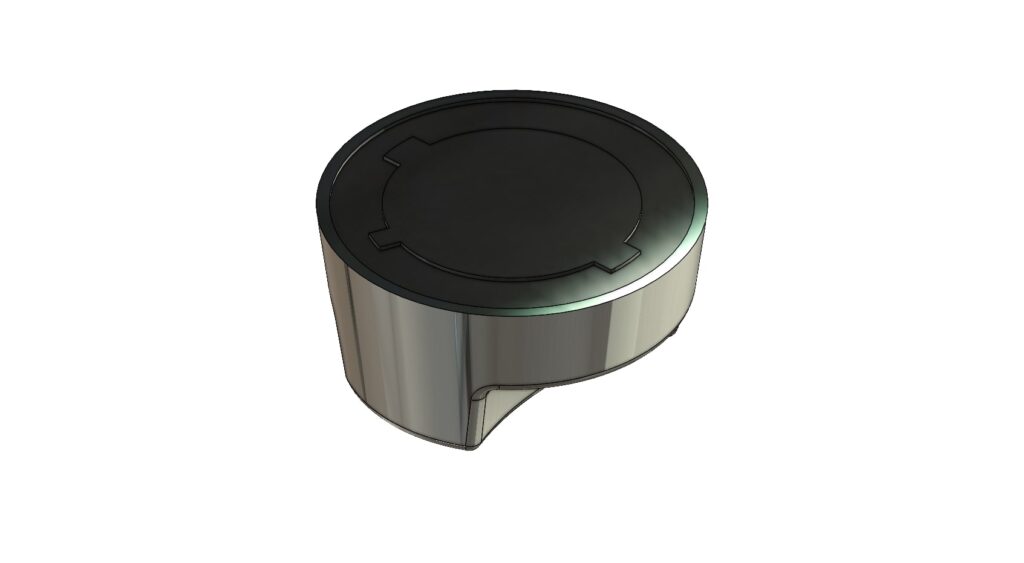

600281 ‘Chunky’ cap, locking, black

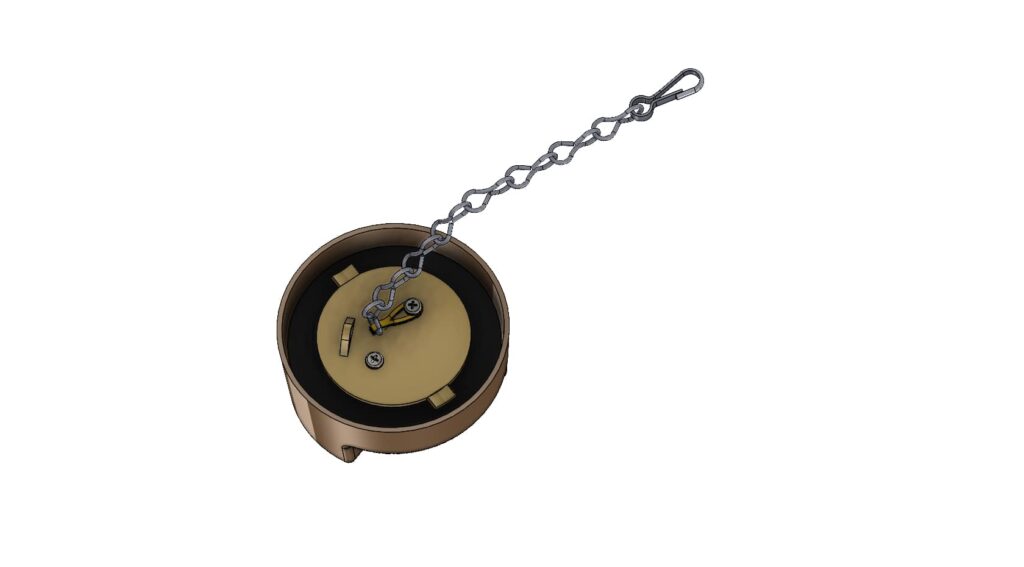

600296 ‘Chunky’ cap, non-locking, grey

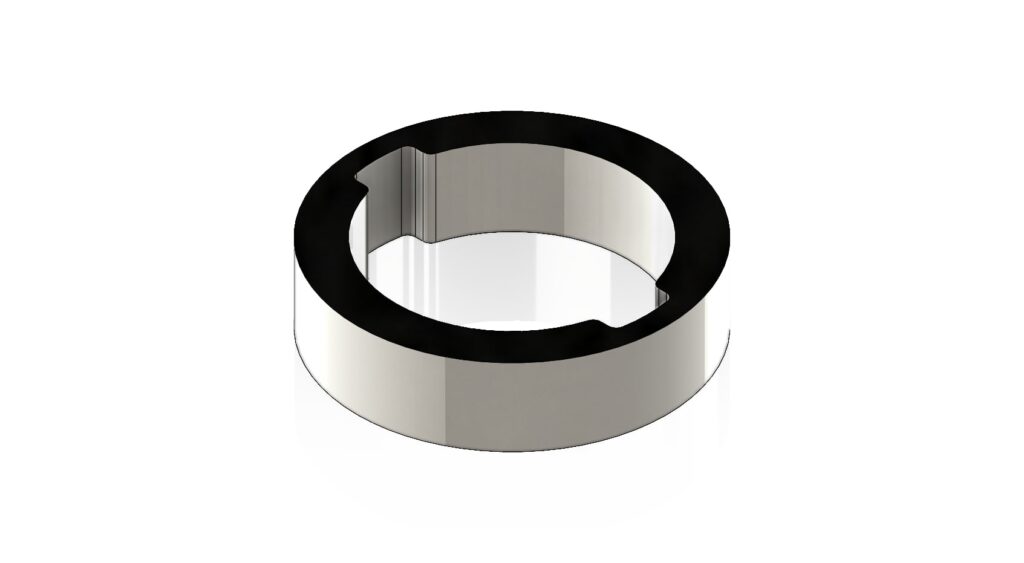

616900 Steel neck-end, 77 mm diameter

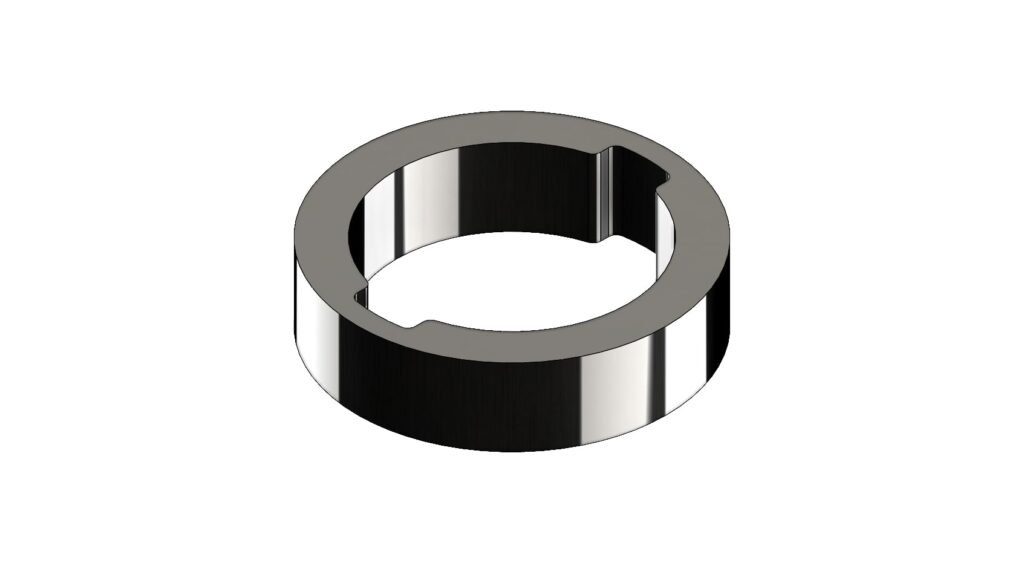

616901 Steel neck-end, 58 mm diameter
Ask for advice on suitability of caps where venting is required. EC regulations may apply.
H2-Diagram 02
H2-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

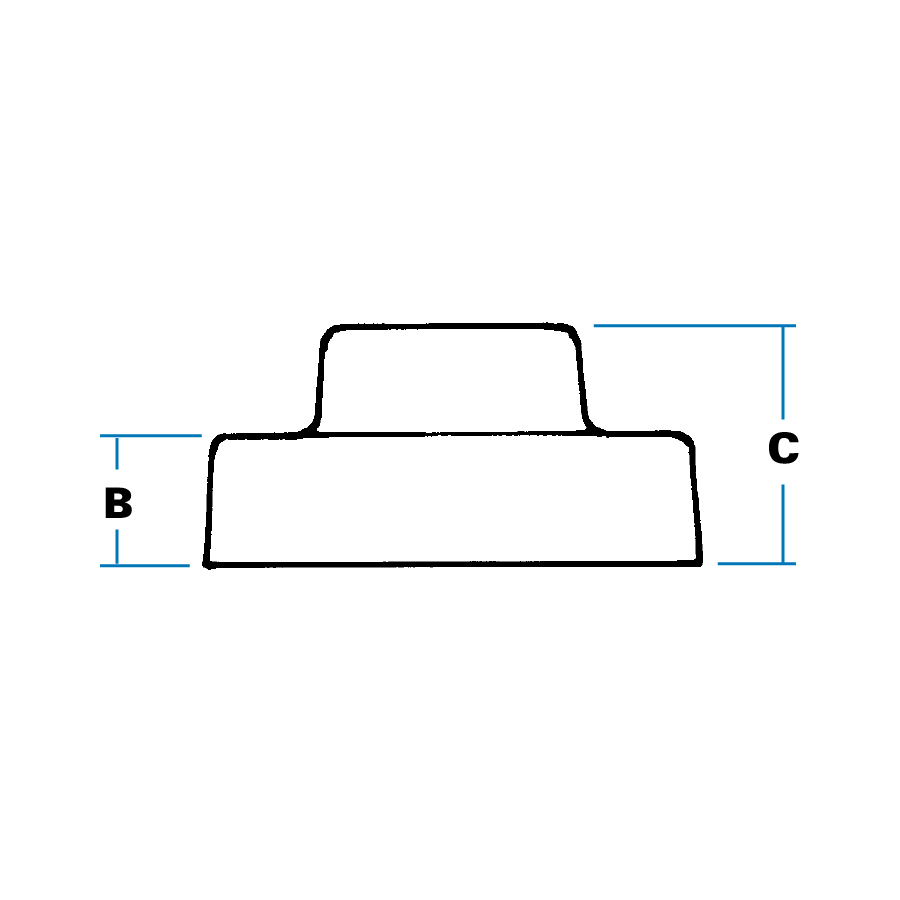

A Diameter 87 mm
B Base height 24 mm
C Max. height 42 mm
D Inside diameter 84 mm
E ‘Bayonet’ diameter (not shown) 68 mm
Note: Alternative ‘bayonets’ can be fitted at 45mm & 55mm diameter, but these will reduce resistance of cap to vandal attack.
  • Attractive, moulded ‘shroud’ with textured finish, and shaped top for good grip. ‘Snap-in’ lock barrel allows cap to be matched with full vehicle lockset.
  • Rotate cap on filler neck until fully engaged. On locking models, turn key to operate latching tongue. Key only withdraws in ‘locked’ position.
  • Textured finish in black.
  • Zinc alloy diecastings, with mineral-filled polypropylene shroud, steel ‘bayonet’ & latch, and bonded steel/nitrile rubber seal.
  • - Valved/vented specification
    - ‘Bayonets’ at 45 & 55 mm
    - Optional retaining chain
    - ‘Diesel’ labels
    - ‘Snap-in’ barrel
    - ‘Customised’ key types.
  • Caps are 100% tested to withstand tank pressure of 0.14 KgF/cm2 (2 lb/in2) Inversion tests ensure caps do not exceed permitted flow rates on valved/vented models.
