‘Drop-T’ Non-Locking Latches

Identical in function to locking models, but with no lock cylinder and reduced pan dimensions.

These are used when no security is required or where free-opening is mandatory (fire equipment, etc).

Ordering Code

Stainless Steel Models
9/01505	LH, non-locking, stainless steel
9/01506	RH, non-locking, stainless steel

Mild Steel Models
9/01515	LH, non-locking, zinc-plated
9/01516	RH, non-locking, zinc-plated

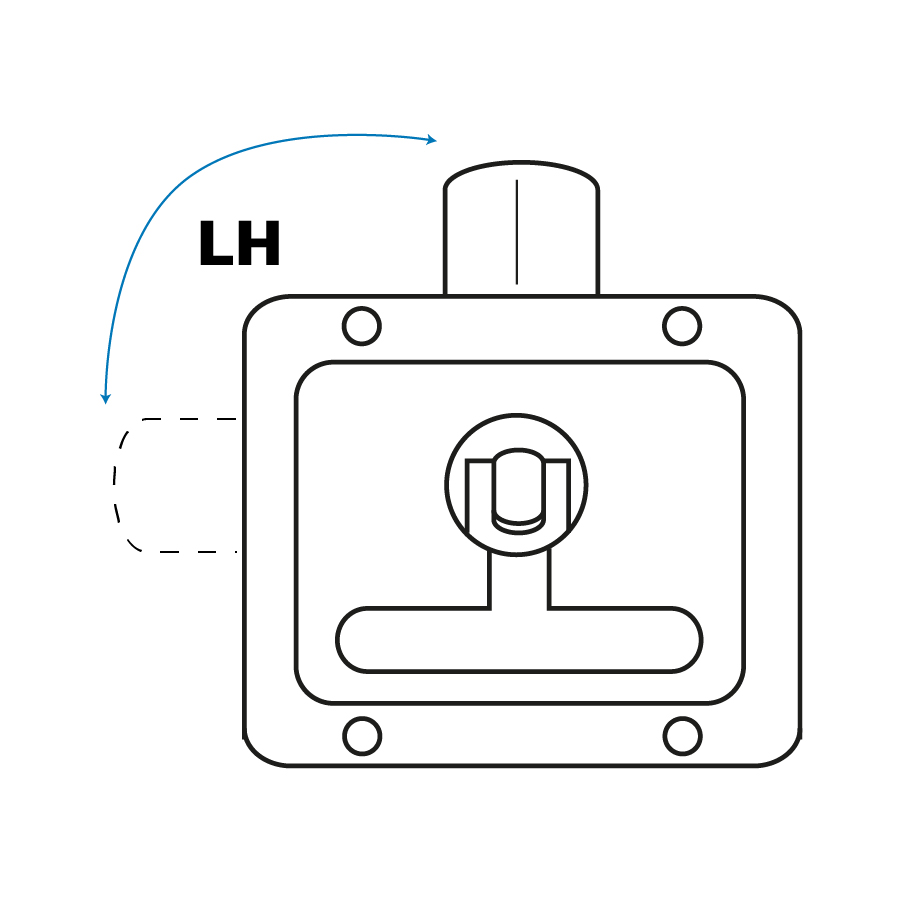

C24-Diagram 01 — Handle turns anticlockwise to release the latch tongue

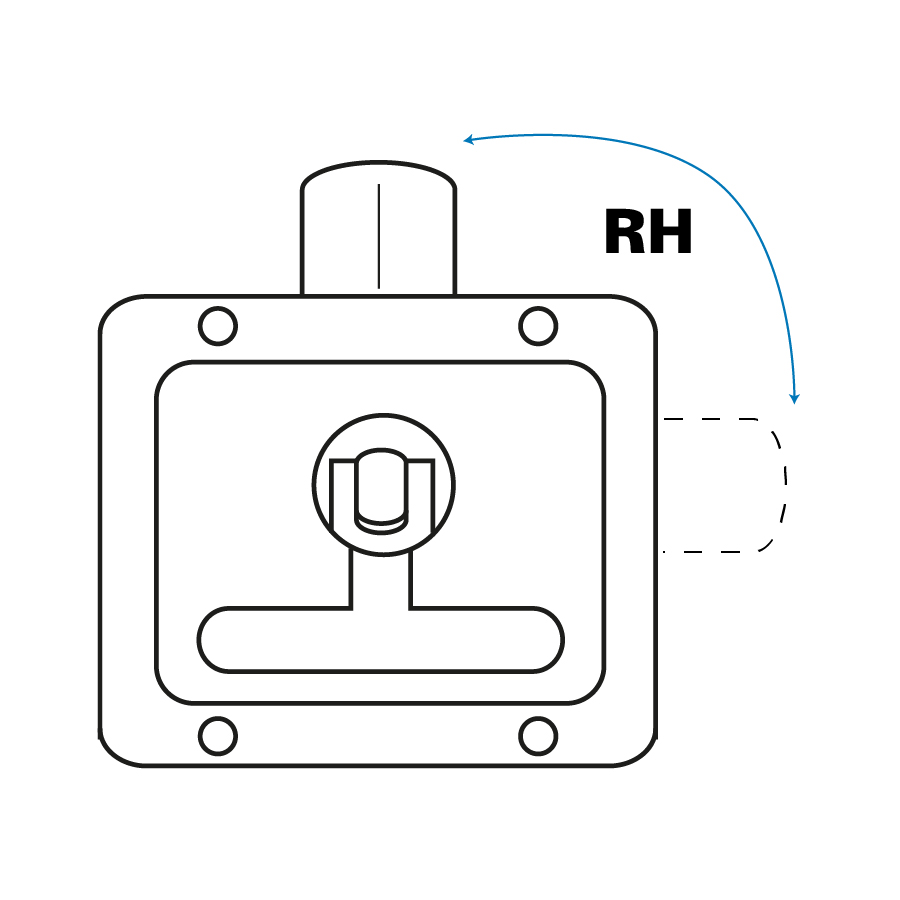

C24-Diagram 02 — Handle turns clockwise to release the latch tongue

Specification

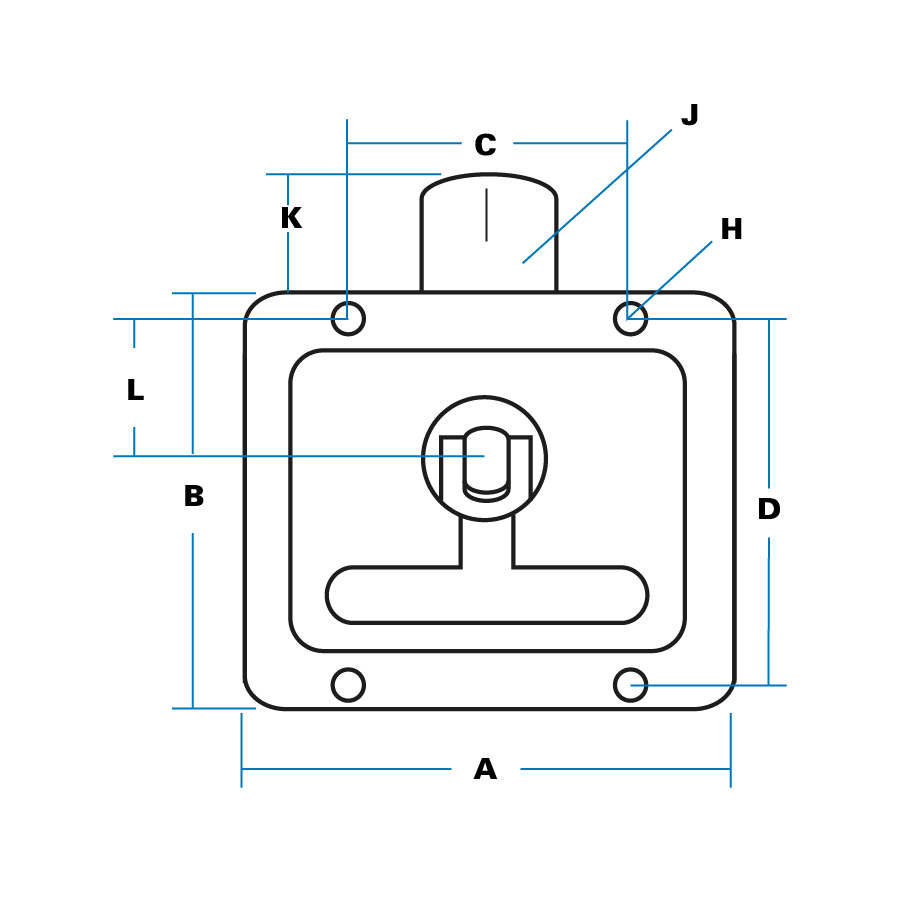

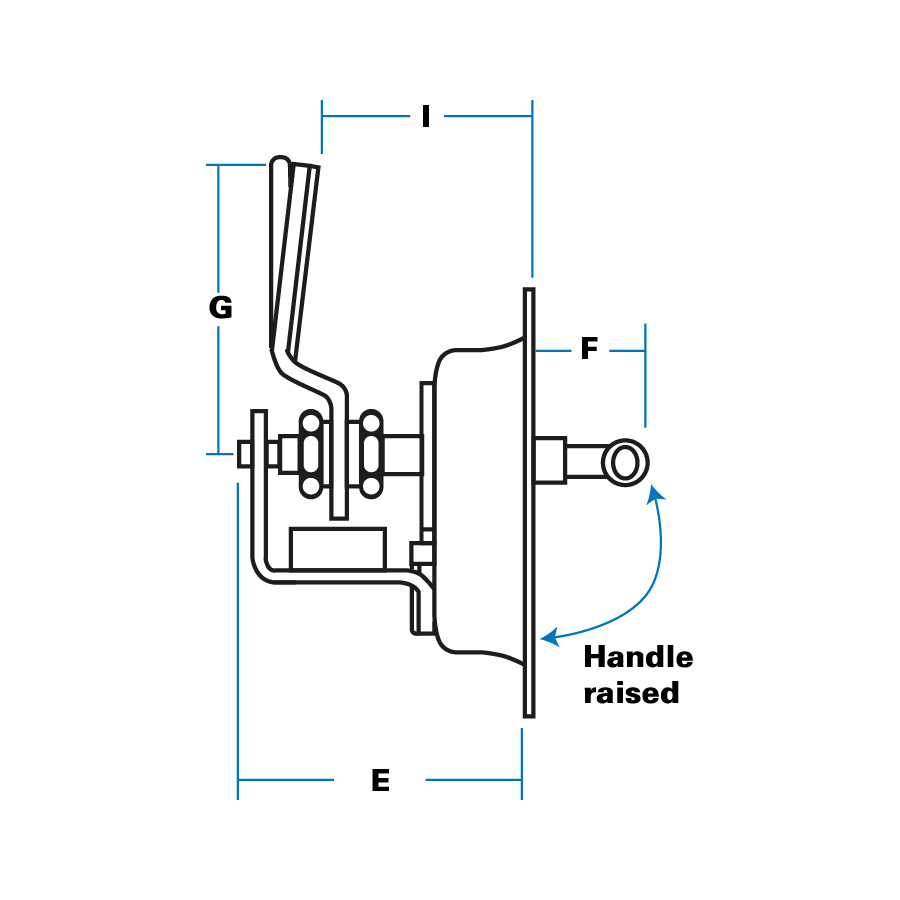

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Width of pan	120 mm
B	Length of pan	102 mm
C	Hole centres	69 mm
D	Hole centres	90 mm
E	Max. depth	68 mm
F	Height of handle	30 mm
G	Length of latch	70 mm
H	Hole Size (dia)	7.5 mm
I	Engagement (normally set at 51 mm)	43-55 mm
J	Widthcam travel 3 mm depth	30 x 5 mm deep
K	Projection	30 mm
L	Location	34 mm

‘I’ dimension can be varied using different latchbars. See options. Gasket ref: MP00568 (non-locking).

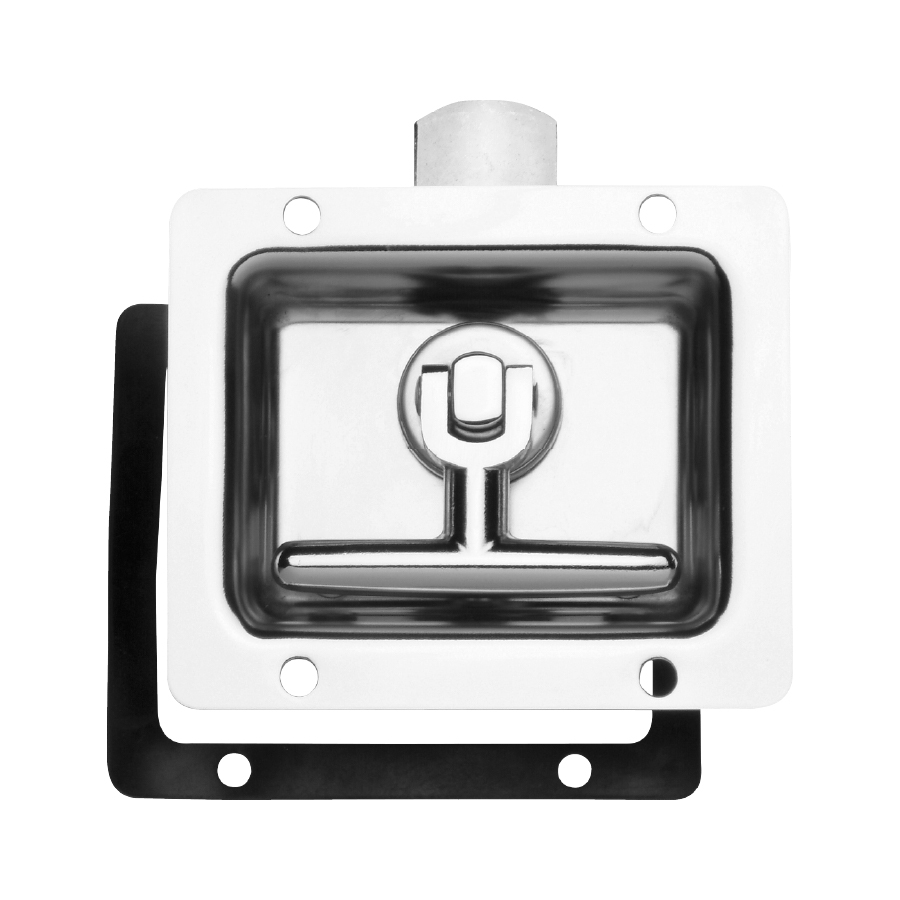

Polished diecast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion resistance and weatherproofing. Gasket supplied.
Lift handle to turn latch bar, with 5 mm cam-form, adjustable through 12 mm vertically.
Latch travels 90° from centre (rest) position against ‘stops’ and is ‘handed’ LH or RH (not reversible).
Four holes in flanges at 7.5 mm diameter. Latch bar is adjusted by 2 x M10 nuts.
Polished stainless steel with chrome handle and hub, or mild steel, zinc-plated. Optionally, black powder-coated. All internal parts are zinc plated for corrosion resistance.
‘T’-pan in 2mm stainless steel grade 304, bright polished, or mild steel to CR4. ‘T’-handle and hub are zinc diecast.
