‘Buckle’ Inside Release Handles

A neat, automotive design which is very easy to fix. There is no locking feature, so it is used on doors where inside locking is achieved by sill-button or other means. Two styles of connector as shown, non-handed.

Ordering Code

1/29908	‘Buckle’ release, chrome (snap-in)

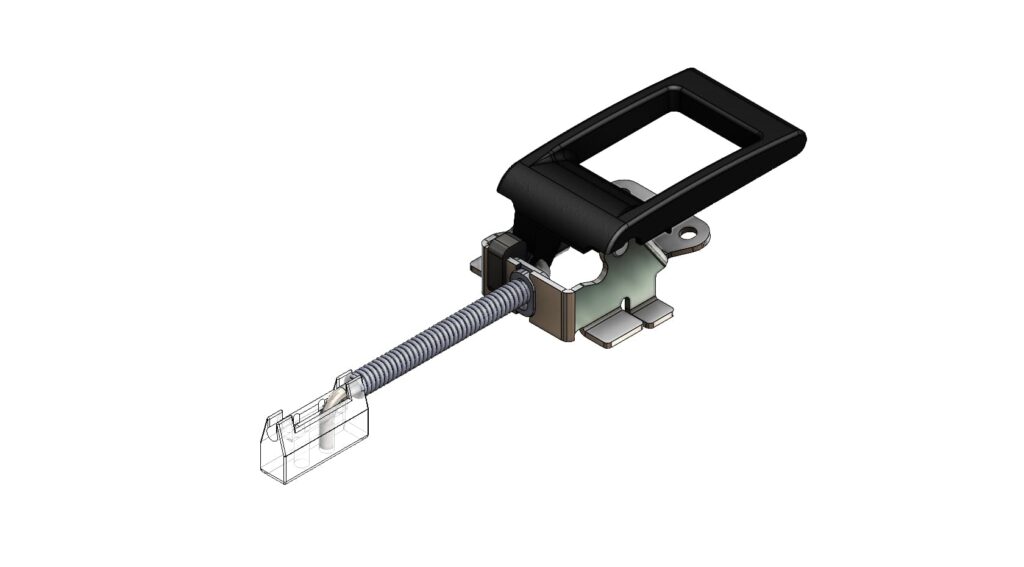

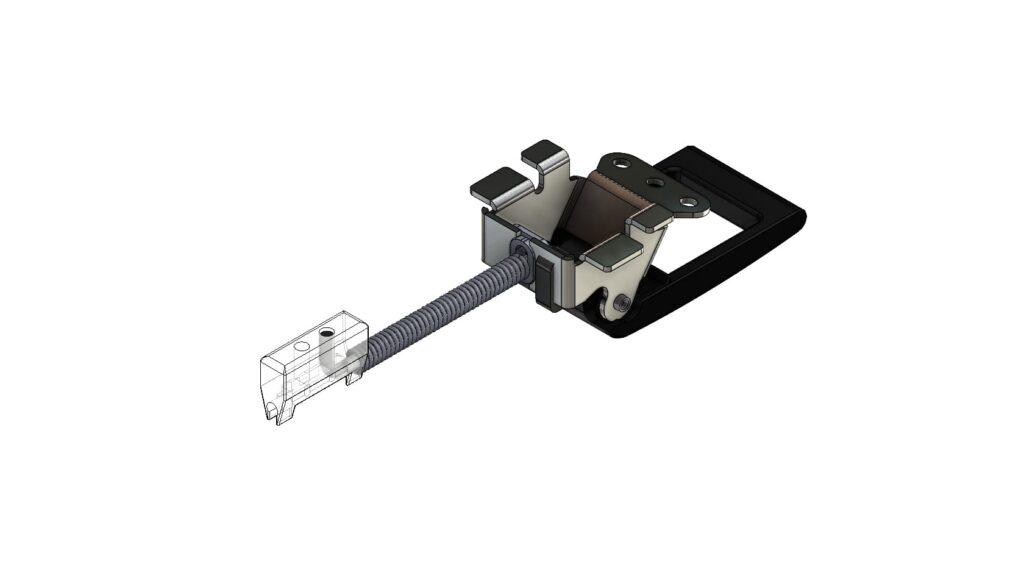

1/29908B	As above, black

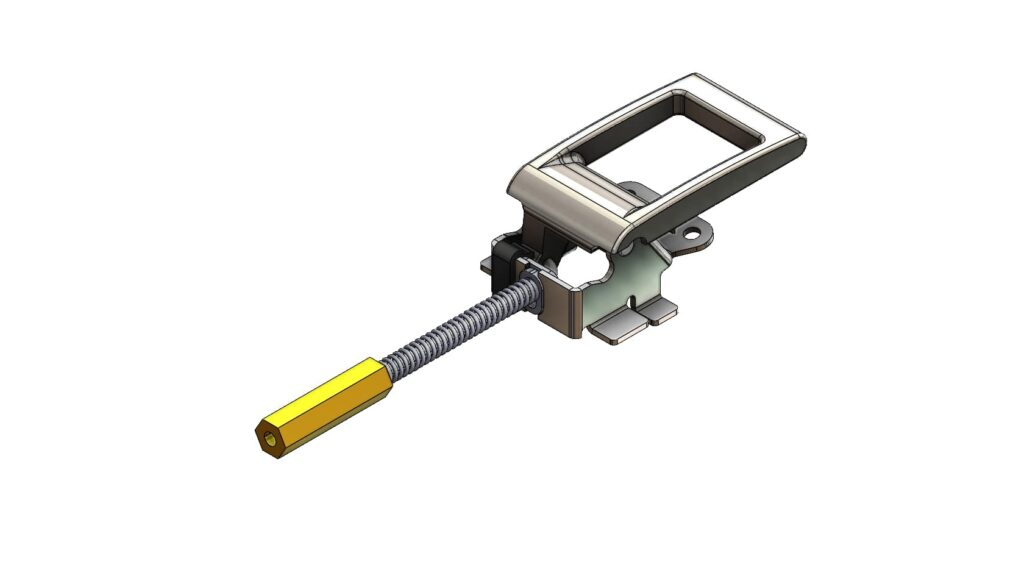

9/00708	‘Buckle’ release, chrome (threaded)

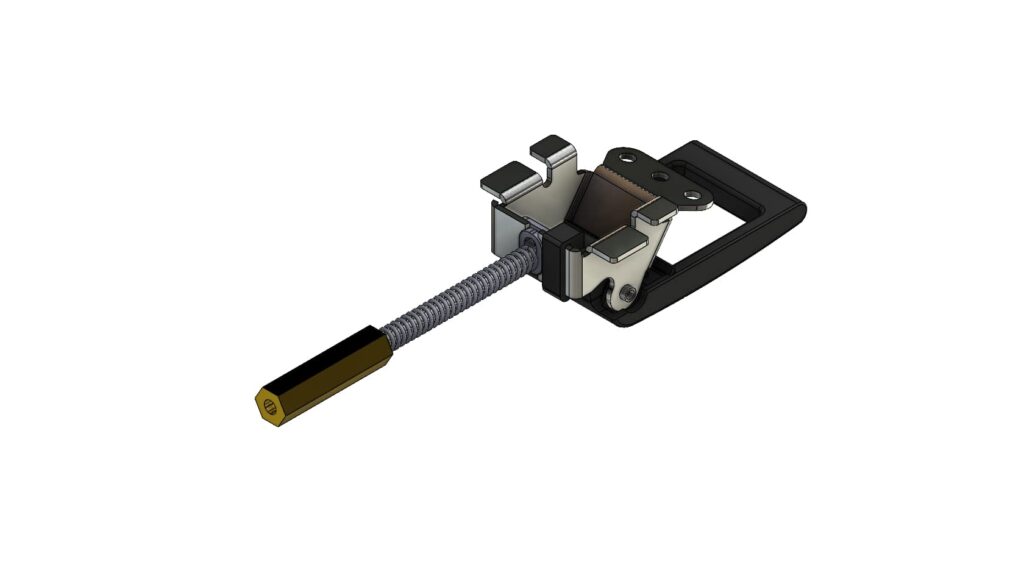

9/00708B	As above, black

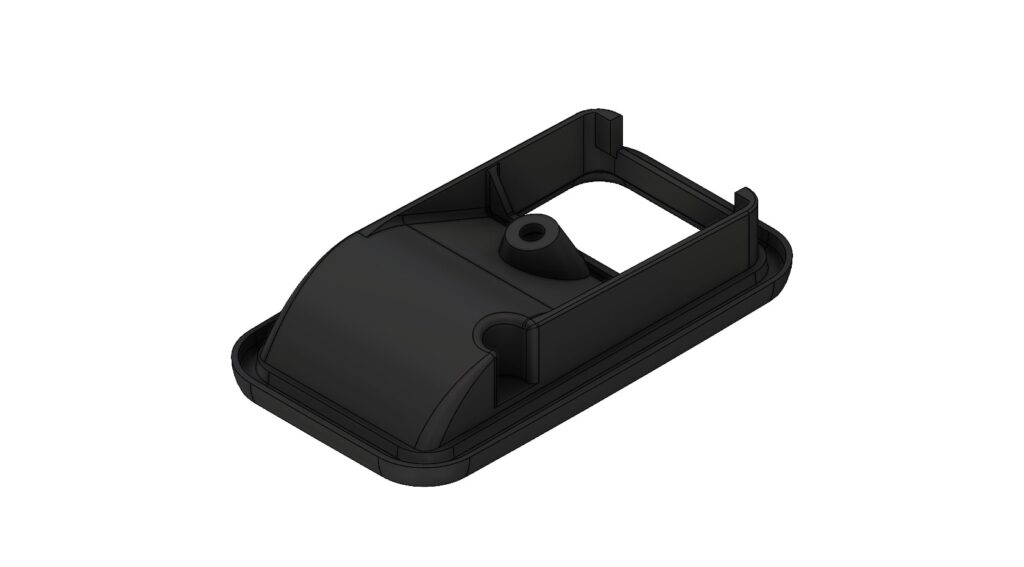

3/22324	Moulded escutcheon bowl, black
9/00078	Connector rod, 3.5 mm x 1 metre

E1-Diagram 03 — This is an installation using our outside ‘flap’ handle, 1/25653, with ‘freewheeling’ action.

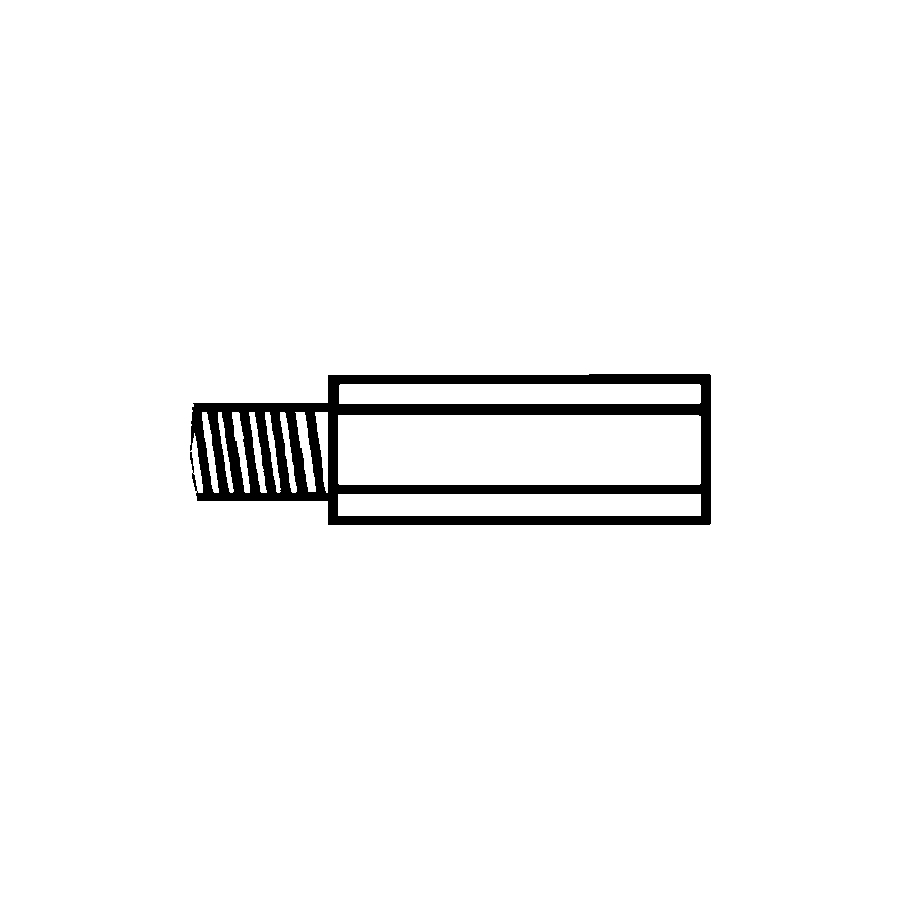

E1-Diagram 04 — Adjustable connector (9/00708)

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

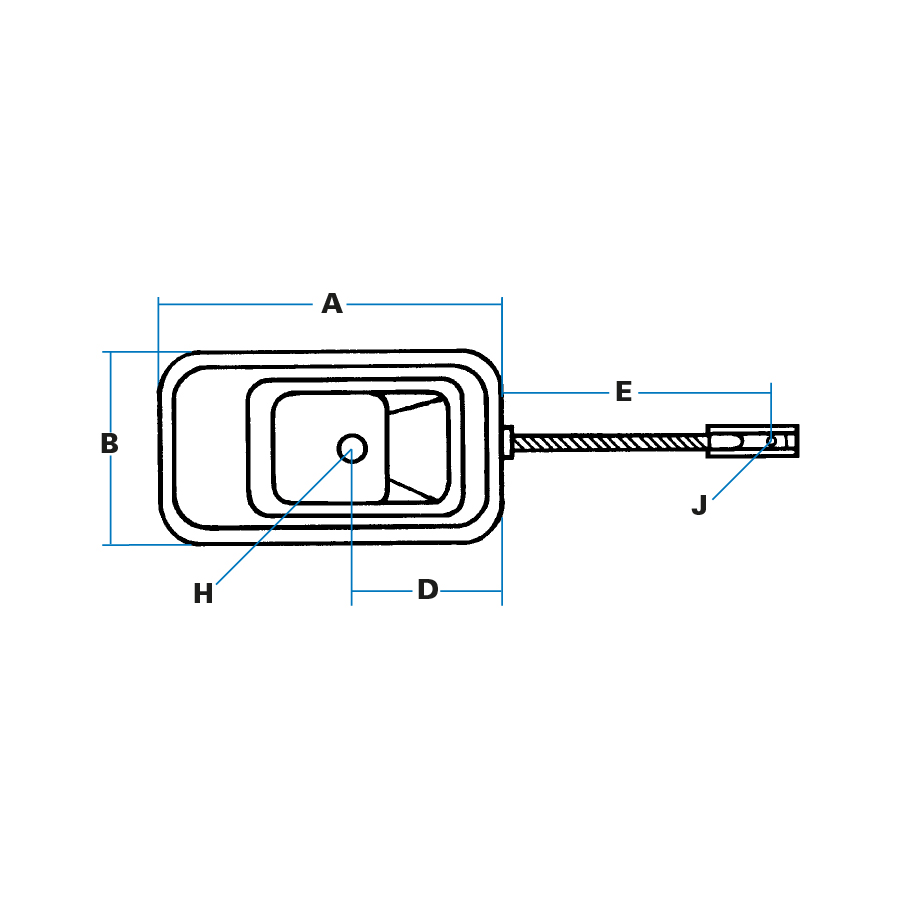

A	Bowl total length	102 mm
B	Bowl width	55 mm

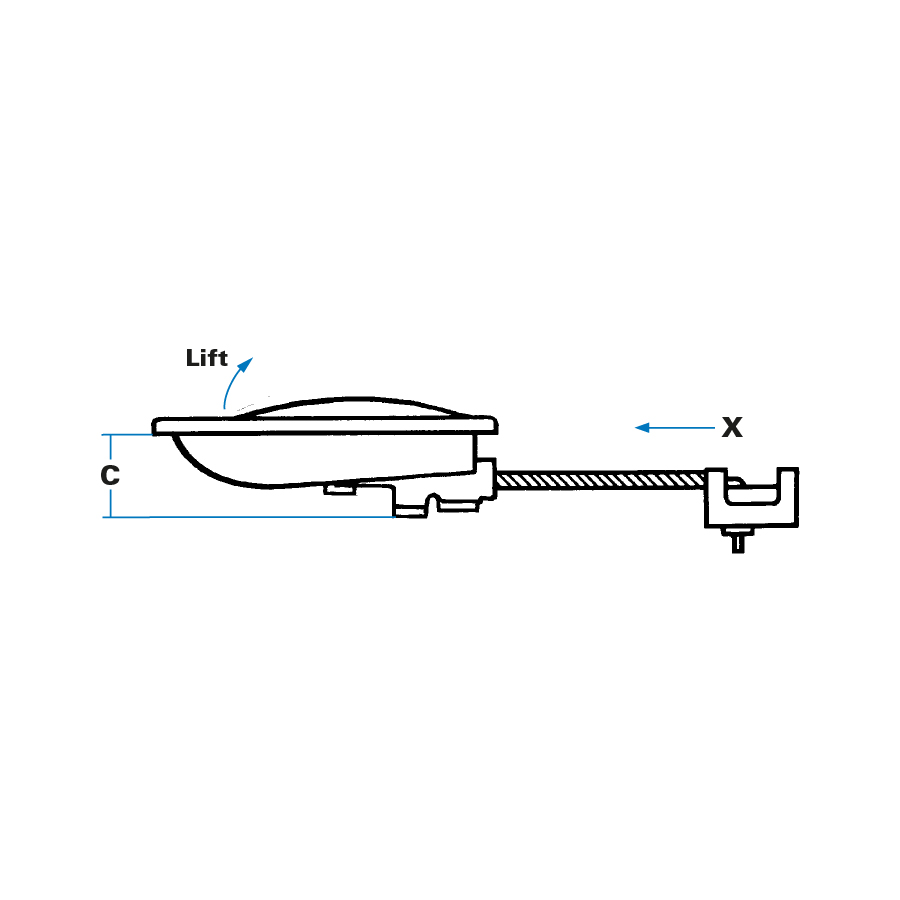

C	Depth to base	23 mm
D	Location	45 mm
E	Location to ‘J’	75 mm
H	Hole size (dia)	5 mm
J	Hole size (dia)	3.5 mm
X	Travel of latch release	15 mm

A rubber buffer on the frame acts as a stop, ‘cushioning’ action and preventing rattle.

Semi-plant-on for easy installation, cushioned action and choice of finish options
Lift flap to withdraw latch connection point ‘X'
Handle is bolted to inside door skin through base, and connected to latch. Trim panel is fitted, and moulded escutcheon is slipped over ‘buckle’ and secured through centre hole, concealing edges of panel
Bright chromium-plated or black buckle, on zinc-plated frame. Black escutcheon
Zinc diecast ‘buckle’ on steel frame, with bowl moulded in ABS
