Anti-Burst Latches for Off-Road Vehicles

Specially developed for agricultural tractors, construction plant and similar off-road vehicles, these latches are easily fitted to single-skin doors, with a neat, moulded trim cover for good appearance.

Latches operate from a push-button handle mounted on the outside panel, so that plunger engages with ‘trigger’.
9/01830
9/01830
9/01830
9/01830
9/01831
9/01831
9/01831
9/01831
9/01832
9/01832
9/01832
9/01832

Ordering Code

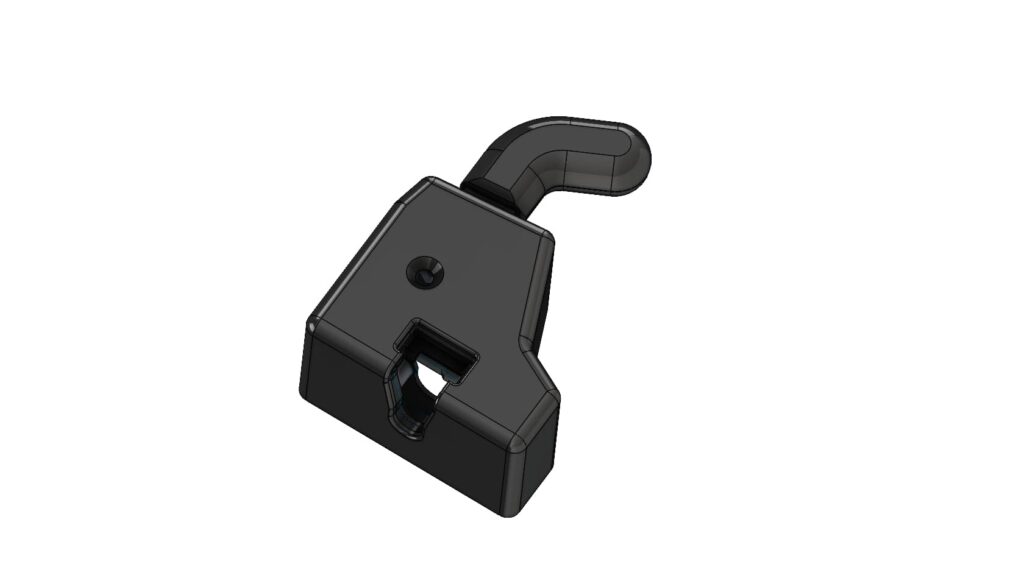

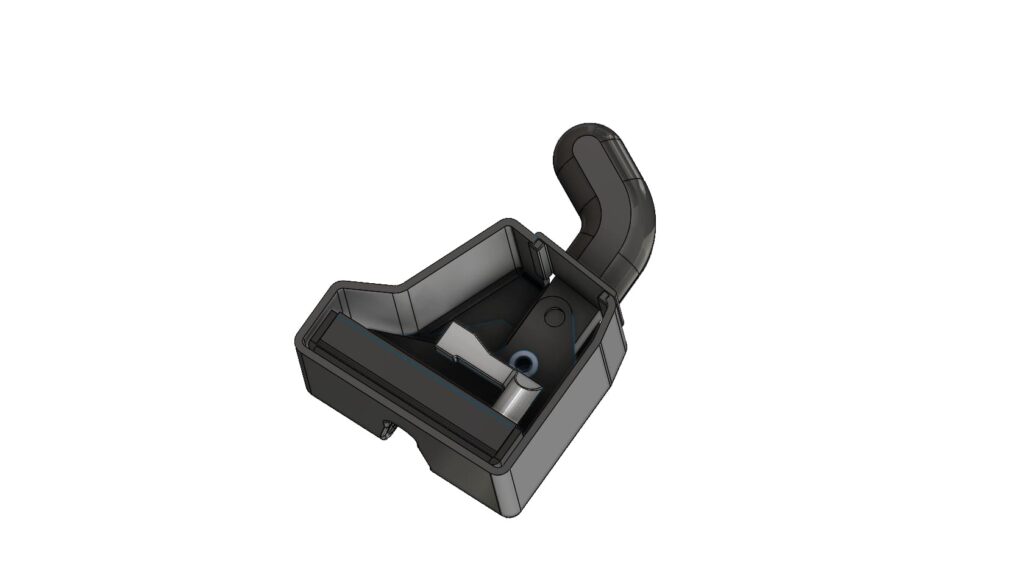

9/01830 Latch assembly, RH

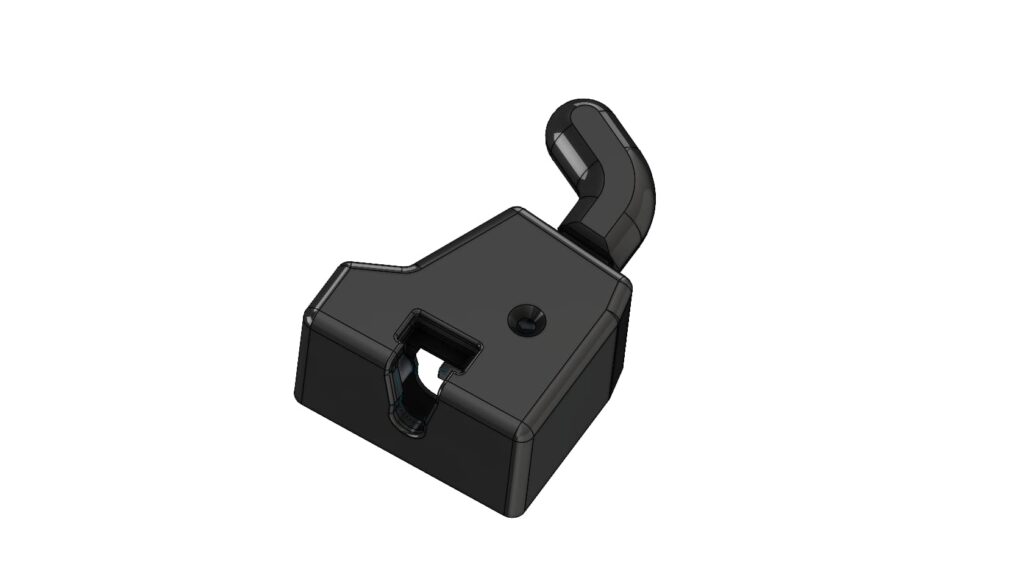

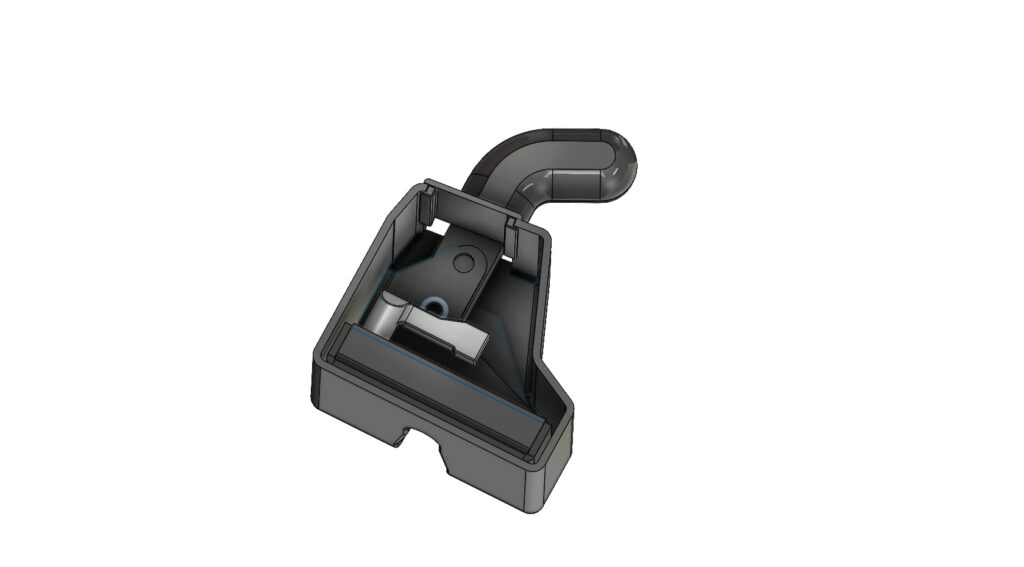

9/01831 Latch assembly, LH

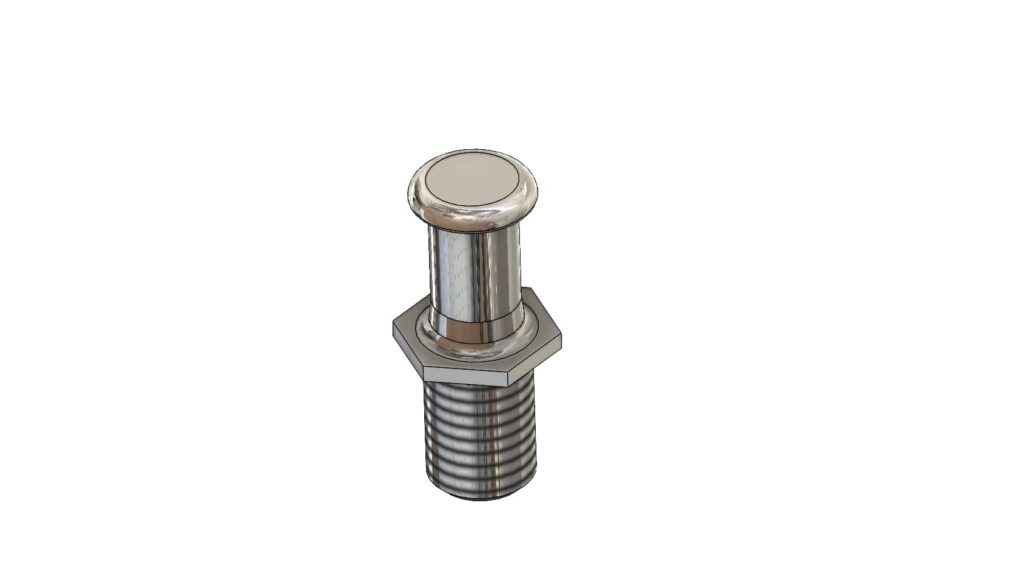

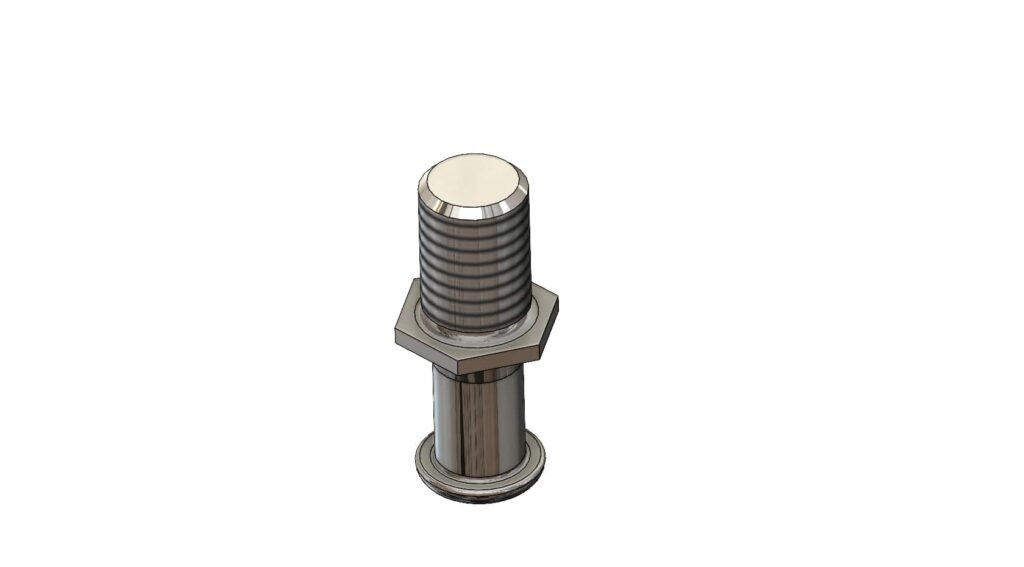

9/01832 Striker pin
Note: Above assemblies include steel coverplate, moulded trim cover and inside releasehandle

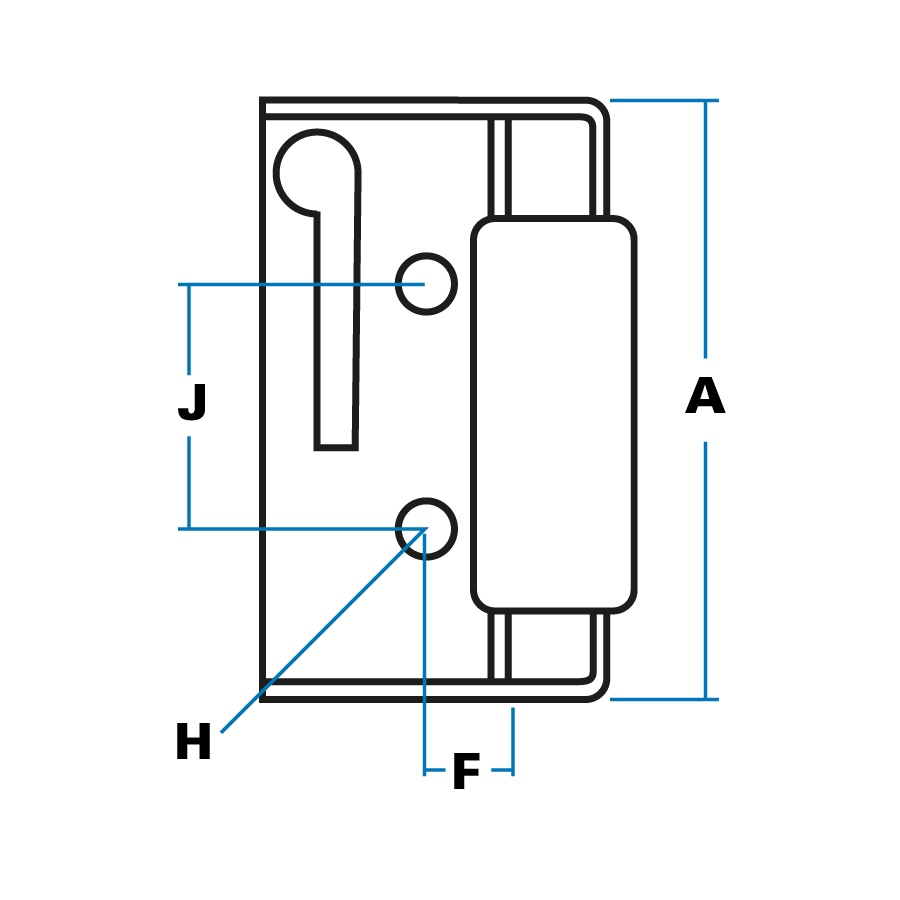

D19-Diagram 01
D19-Diagram 03
D19-Diagram 02

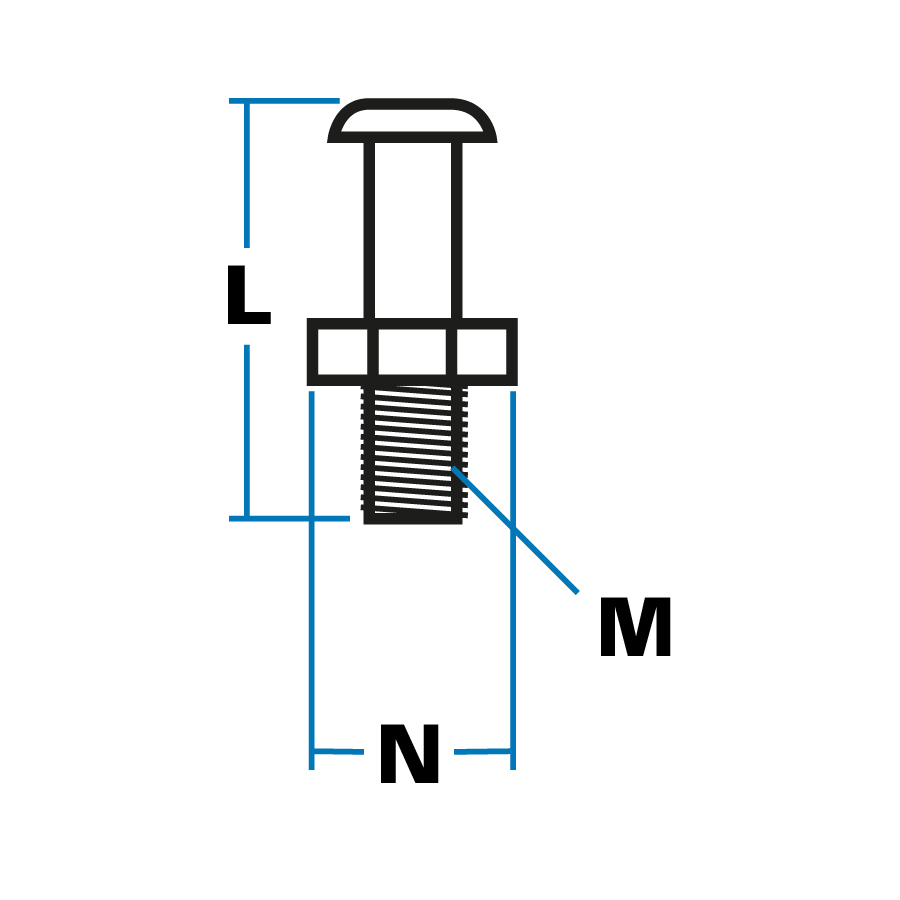

D19-Diagram 04

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Height 80 mm
B Width 47 mm
C Depth 17 mm
D Location to hole 26 mm
E Length, handle 80 mm
F Location to face 9 mm
G Location to latch centre 19 mm
H Hole sizes 6 mm
J Hole centres 31.5 mm
K Hole size (Threaded) M6
L Pin total length 41 mm
M Threaded 12 mm x 1 mm fine pitch
N Hexagon across flats 16 mm
  • Two-stage rotary action, integral inside release, with fixing holes concealed by trim cover. Steel cover plate reinforces latch to increase strength rating.
  • ‘Handing’ shown for front-hinged doors. Reverse handing for front-opening.
  • Latch slams against pin-striker, is released by exterior ‘trigger’ or by lifting inside handle. There is no inside locking function.
  • Attach to door edge by 2 x M6 high-tensile bolts through steel cover plate (which must be used). Trim cover is retained by M6 screw into threaded hole on side-face.
  • Black zinc-plated with moulded trim cover and inside release, bright zinc plated striker.
  • When rig-tested these latches can achieve values in excess of 8.9KN (2000lb) Transverse load in fully-latched condition. The design is intended for off-road vehicles, and constructors are responsible for evaluating performance in their own particular application and for ensuring that appropriate legislation is satisfied.
