3-Way Rod Latches

A heavy-duty design which provides 3-point latching with an exceptional amount of ‘throw’. This is a ‘deadbolt’ system with 10 mm diameter rods driven by centre bush, and held extended by action of a strong spring. Right-hand and left-hand models are available, with many options.

Ordering Code

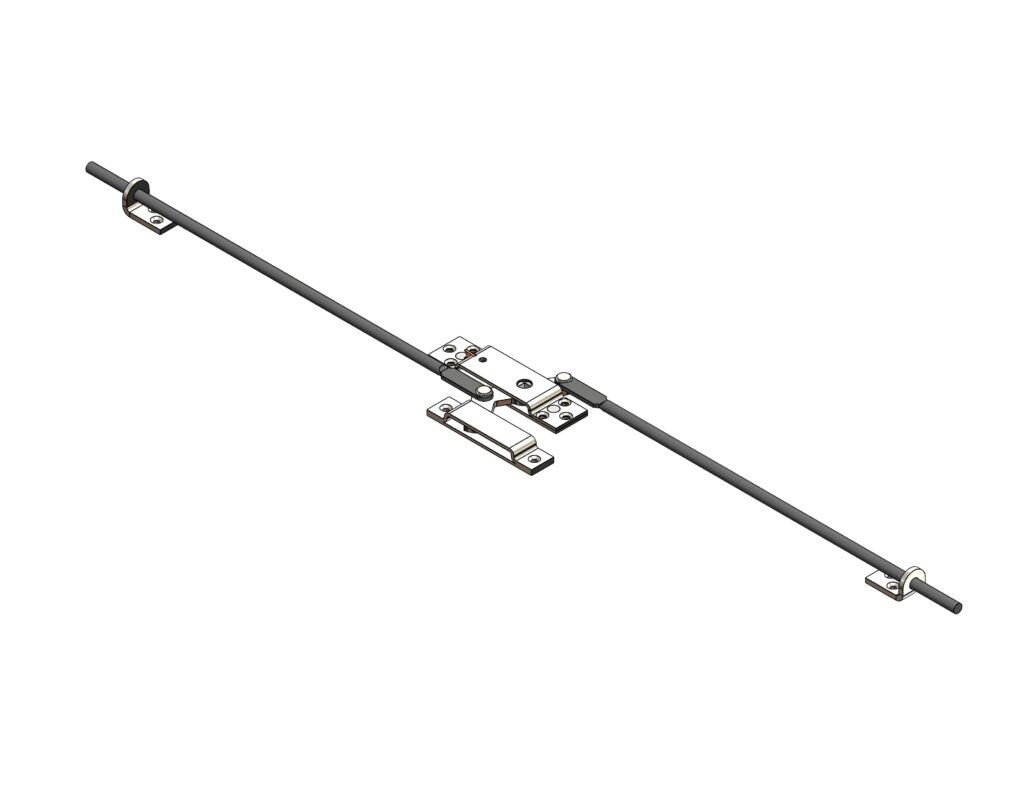

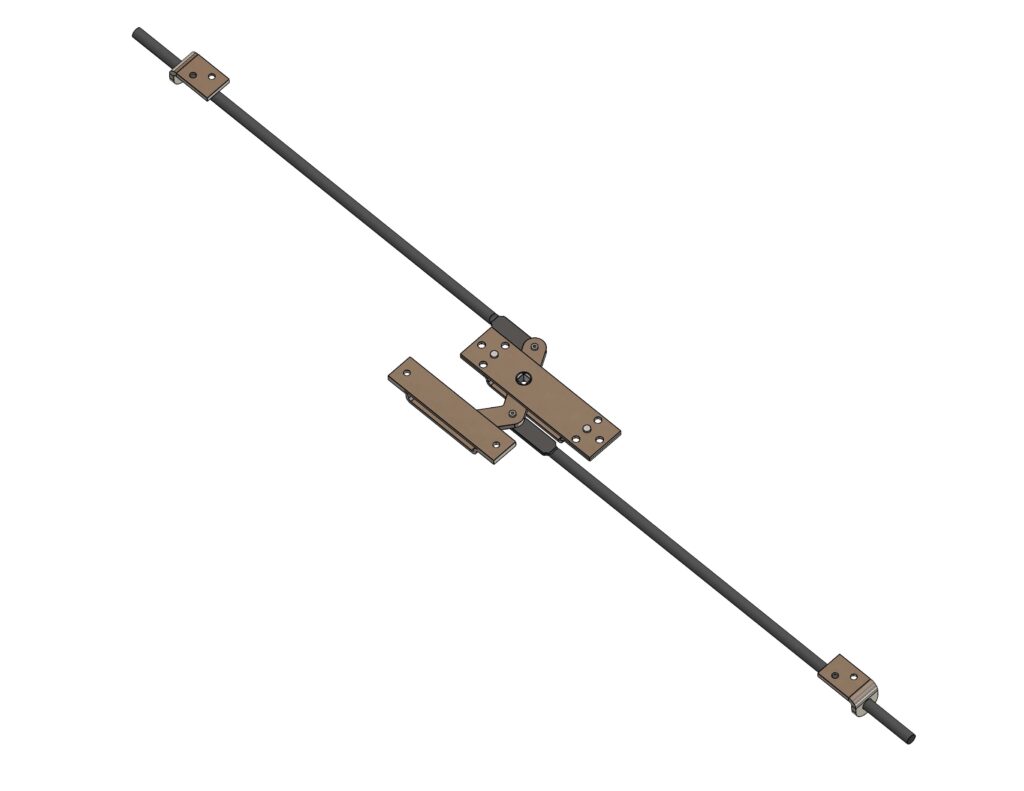

3/18238	3-way rod latch, RH, (set)

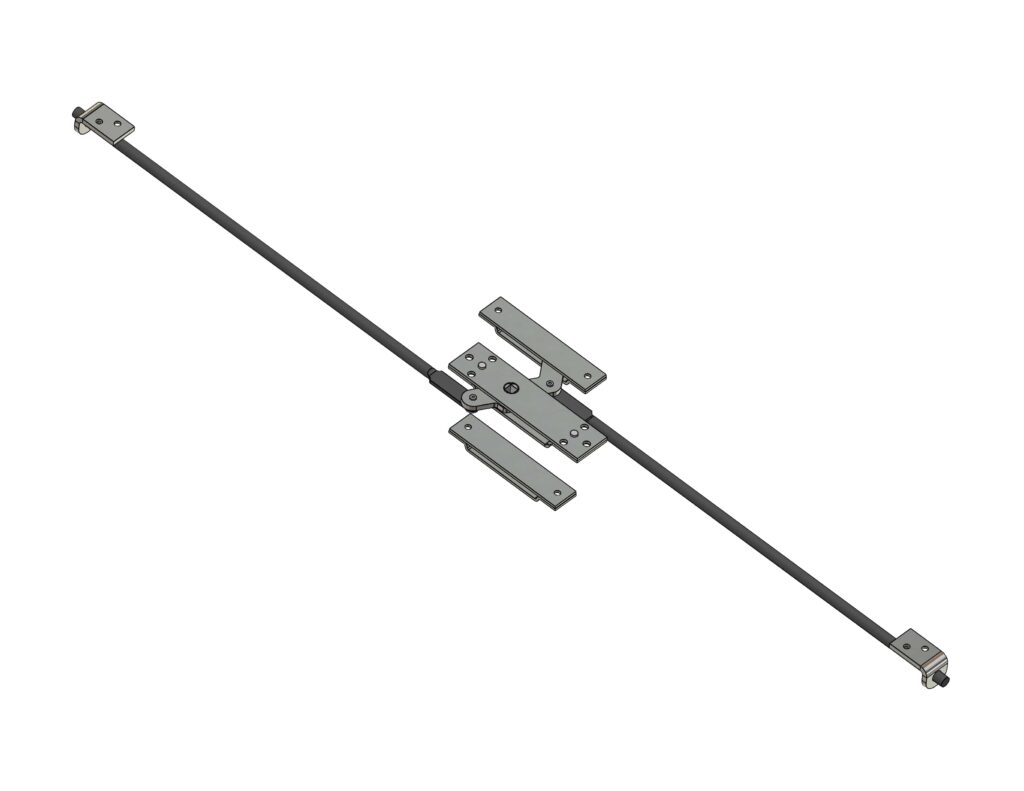

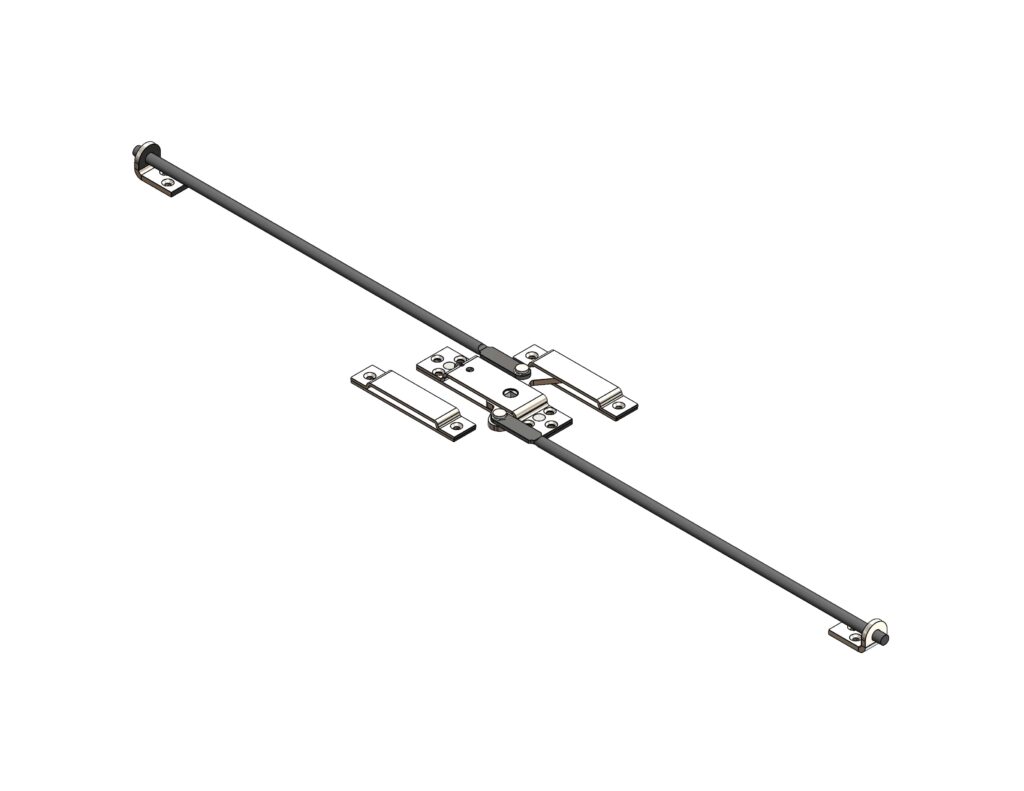

3/18254	3-way rod latch, LH, (set)

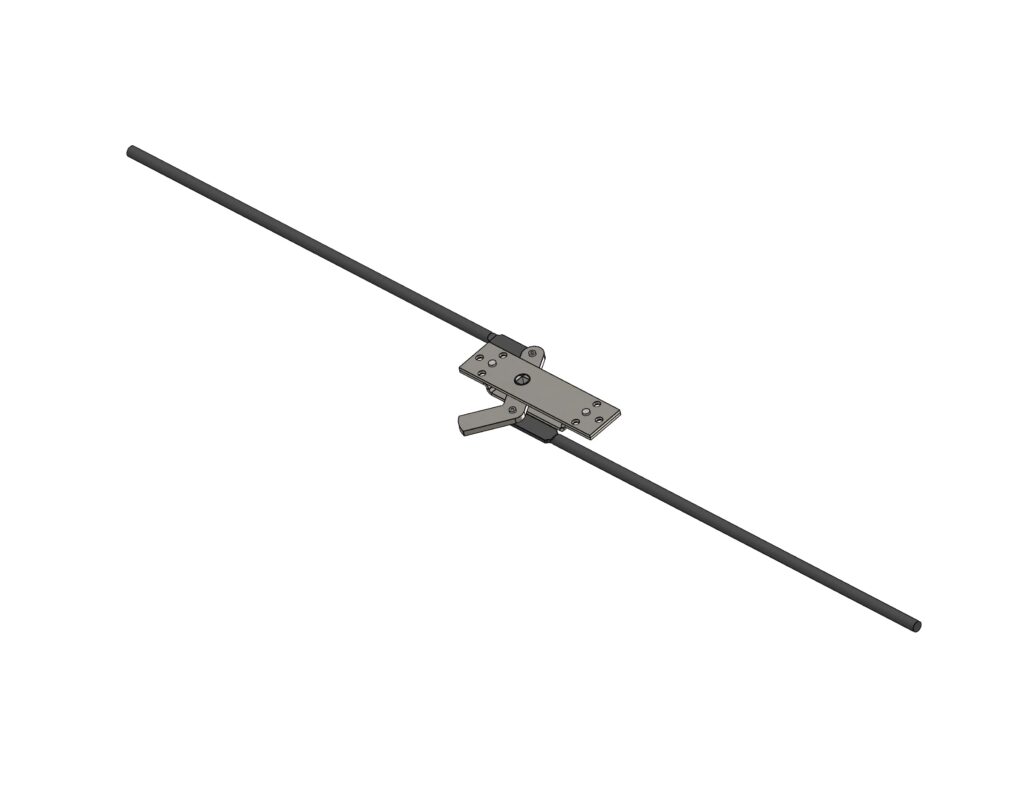

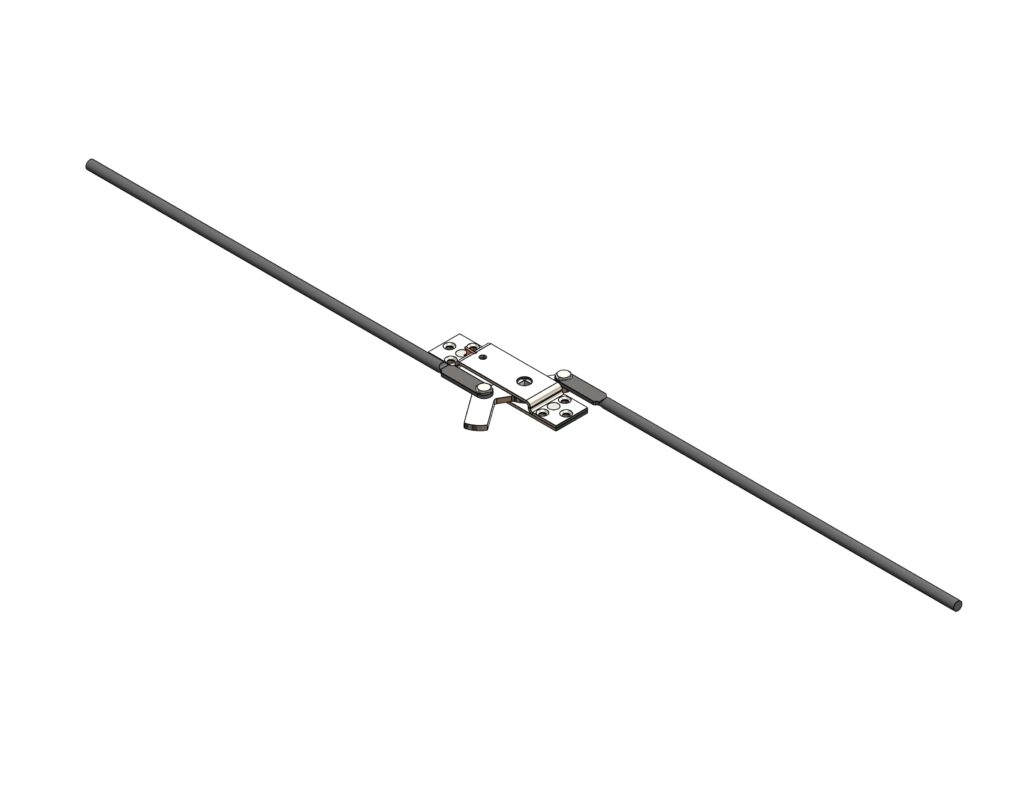

3/18238 MO	3-way latch RH, no guides/keepers

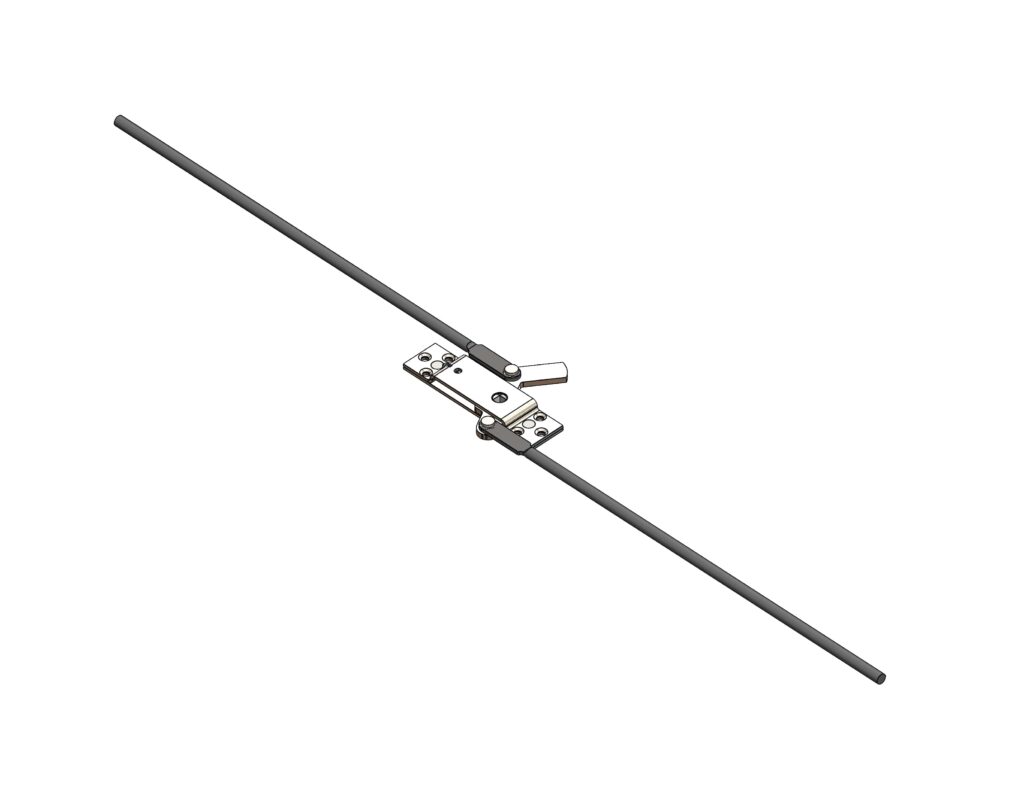

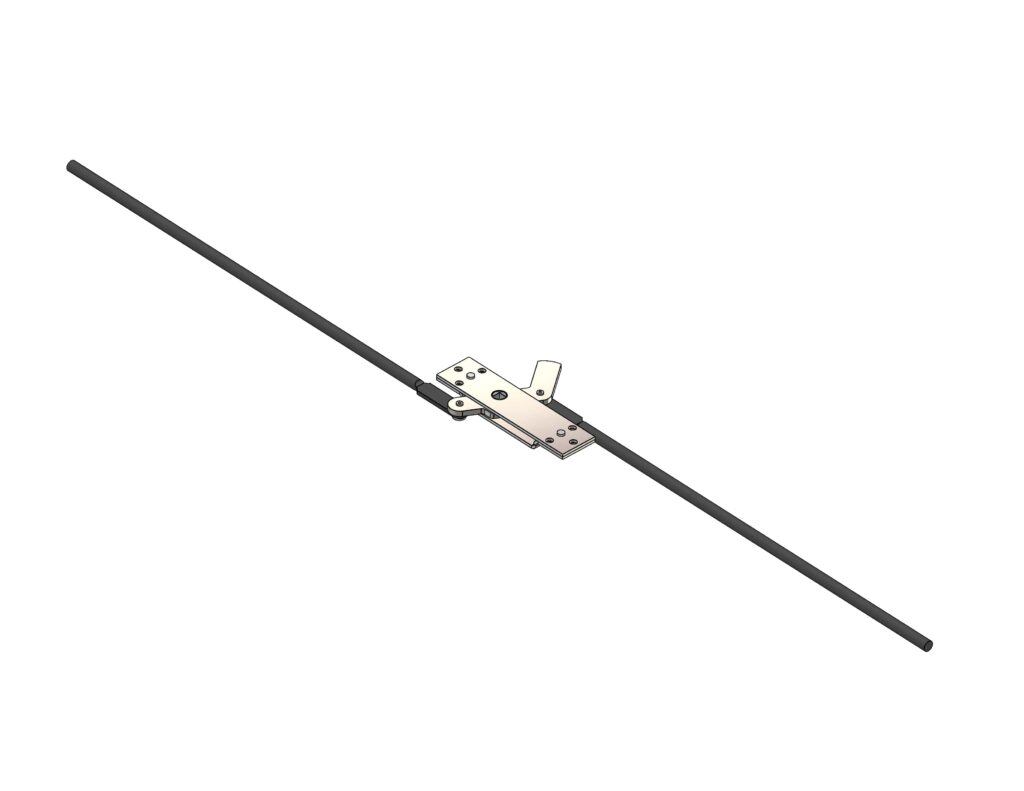

3/18254 MO	3-way latch LH, no guides/keepers

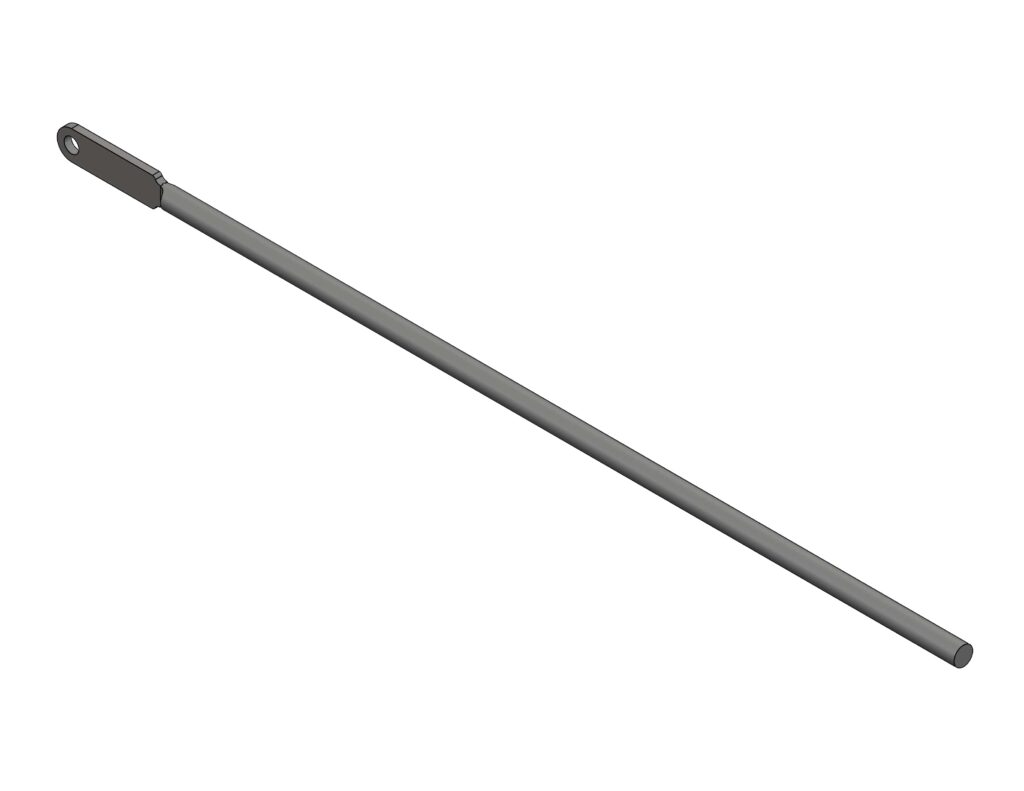

3/18702	Rod only, 1145 mm length

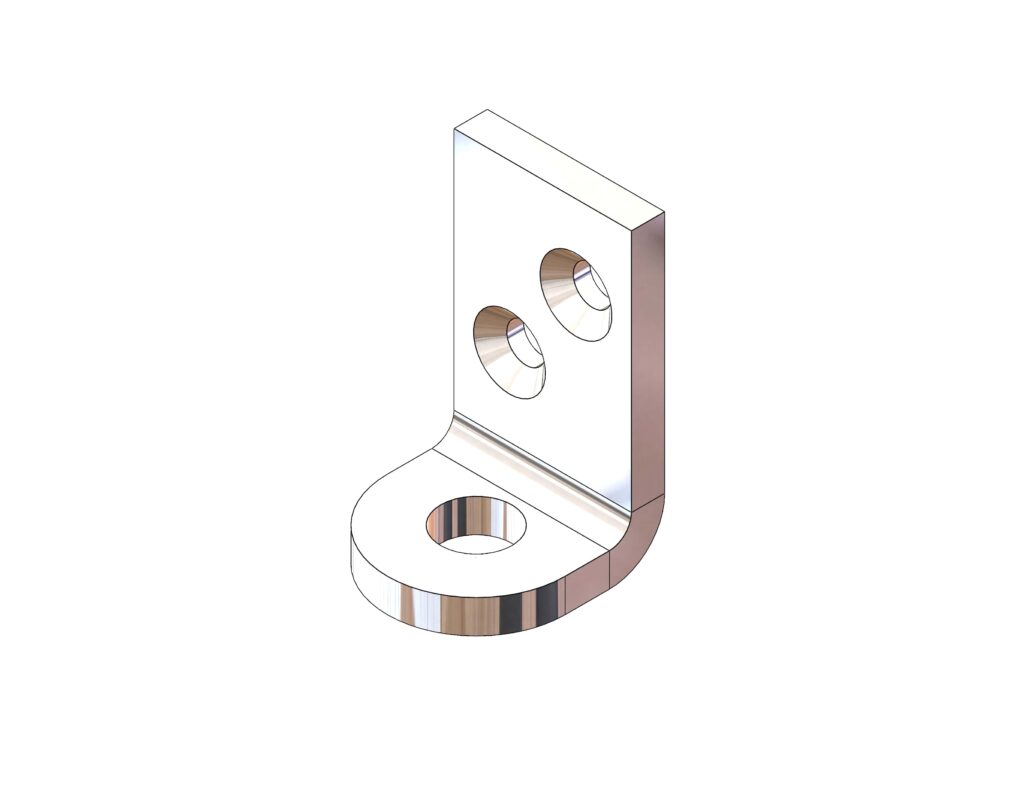

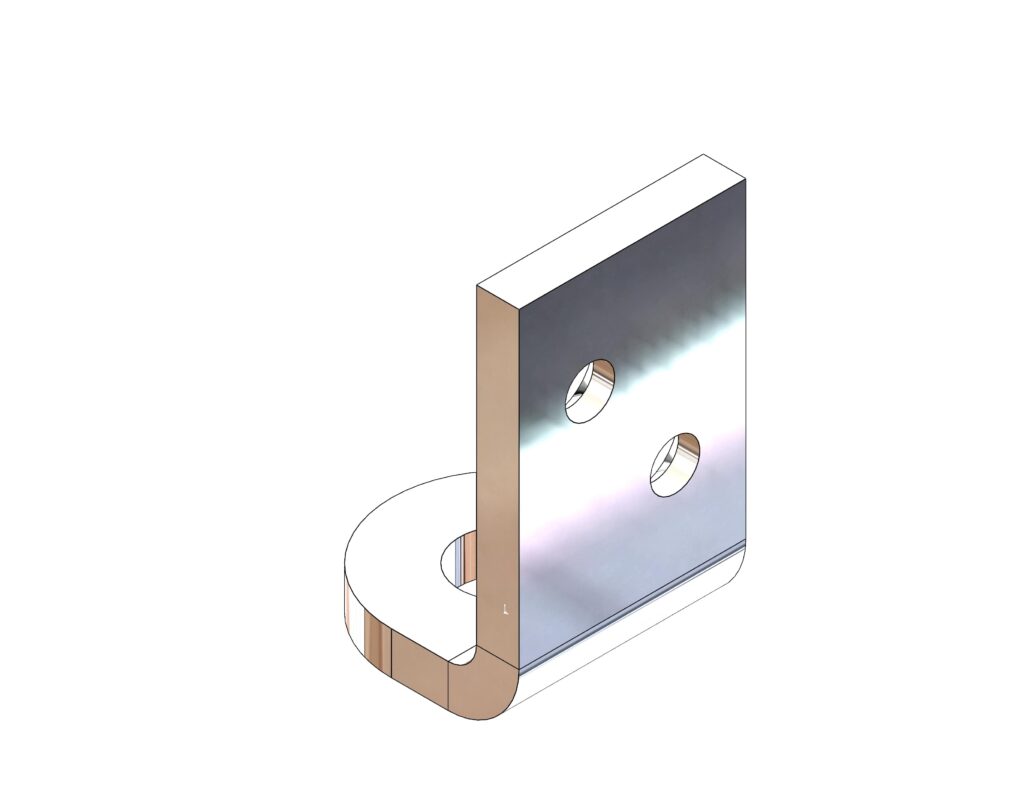

3/18716	Guide, 3-way latches
3/18722	‘Keeper’, 3-way latches

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Length of system (extended) (retracted)	2264 mm 2230 mm
B	Case length	145 mm
C	Case width	36 mm
D	Height to rod centre	15 mm
E	Rear projection	57 mm
F	Front projection (extended) (retracted)	54 mm 21 mm
G	Withdrawal (each end)	33 mm
H	Hole size (diameter)	6 mm, c/s 9 mm
J	Guide plate length	40 mm
K	Guide width	25 mm

‘Keeper’ dimensions 120 x 25 mm, maximum height 12 mm, hole centres 101 mm Centre ‘tongue’ & guide thickness, 4 mm Rod dimensions: 10 mm dia. x 1145 mm length.

Close door, turn inside/outside handle (or T-key) to ‘throw’ rods and extend centre tongue. System cannot be slammed.
Centre bush rotates through 60° as shown to withdraw rods by 33mm (each end) and to pivot centre tongue to vertical. System is ‘handed’ by direction of rotation and position of tongue and rods.
Latches are fully plant-on. Rod ends should be cut as required : guides and keeper are supplied with full system.
Zinc-plated throughout.
- Special rod lengths to order
- Permanently-attached inside handle
- ‘Male drive’ (8 mm square) spindle on inside/outside of latch.
