2-Way Rod Latches

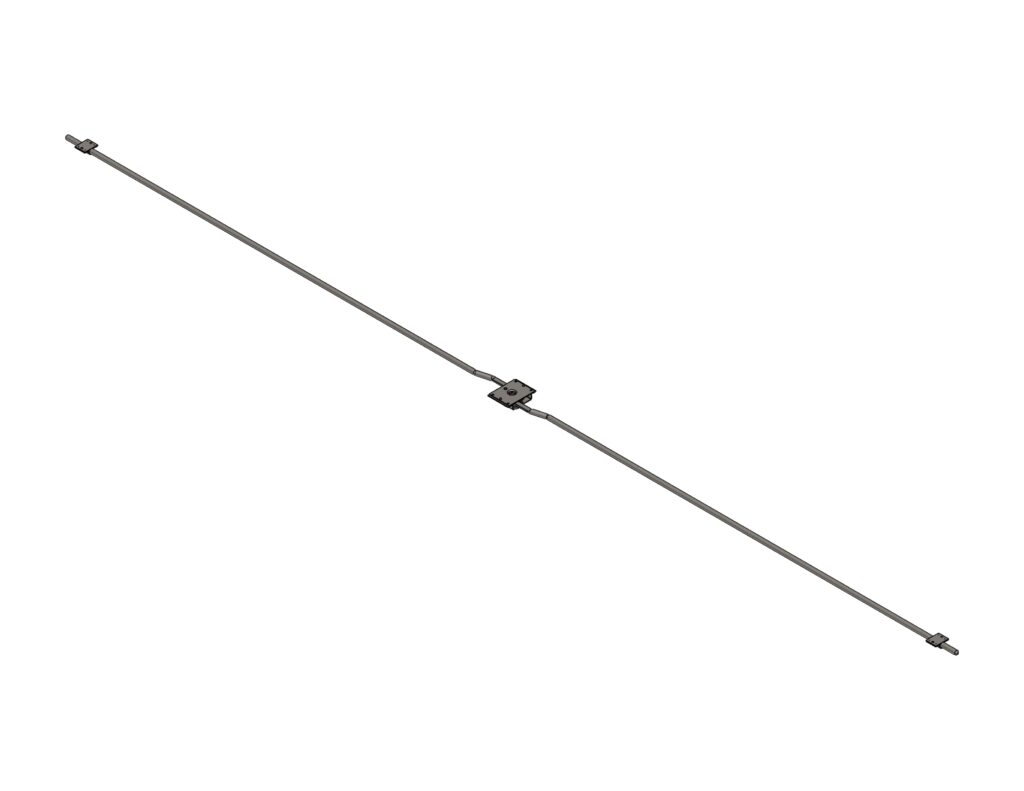

Again, a design which is an industry-standard for securing large doors requiring latching on two edges. This is a ‘deadbolt’ system with 10 mm diameter rods driven by centre bush, and held extended by action of a strong spring. Right-hand and left-hand models are available, with many special options.

Ordering Code

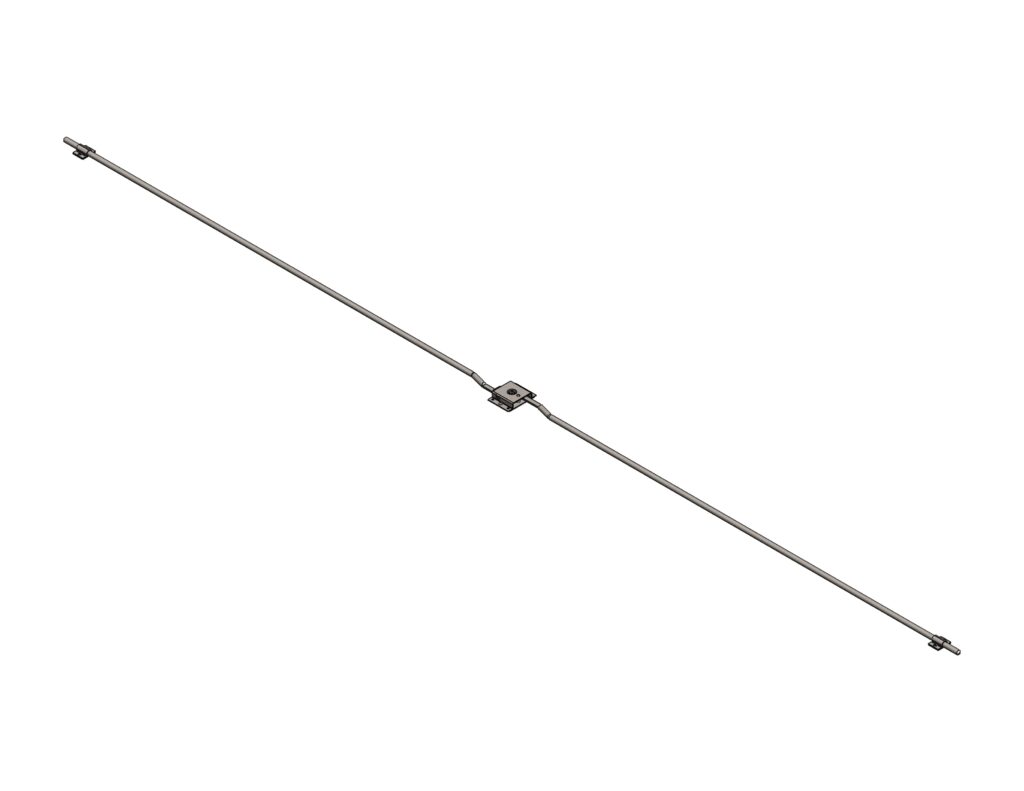

3/18794	2-way rod latch, RH (set)

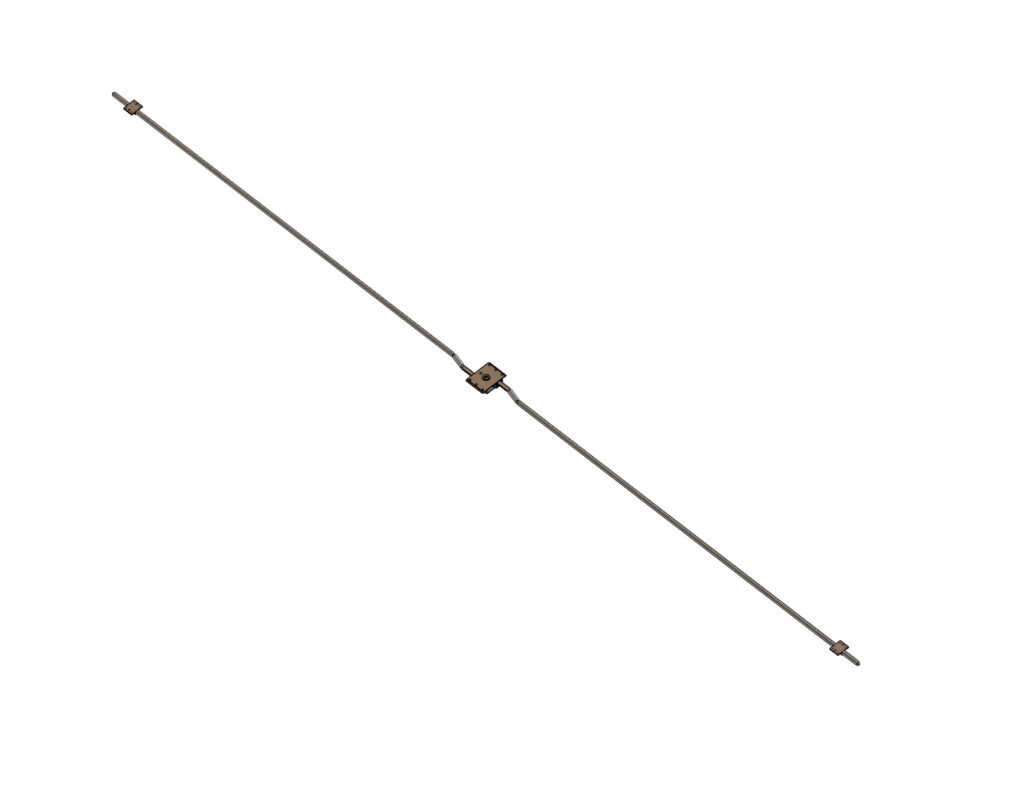

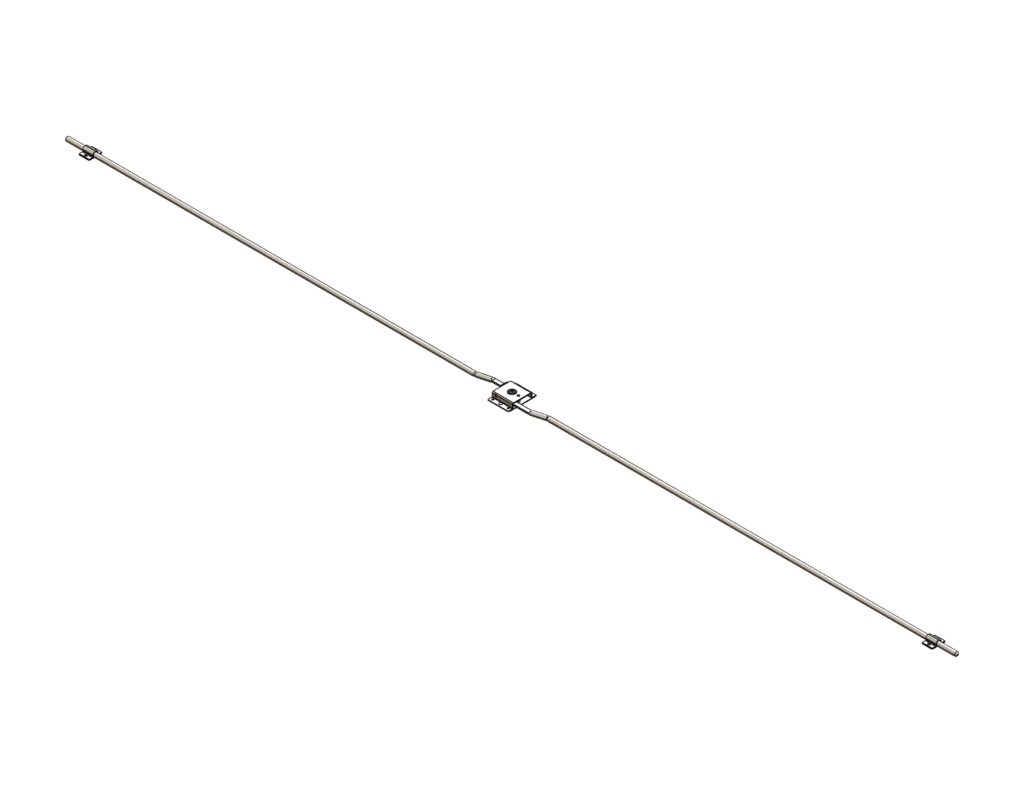

3/18795	2-way rod latch, LH (set)

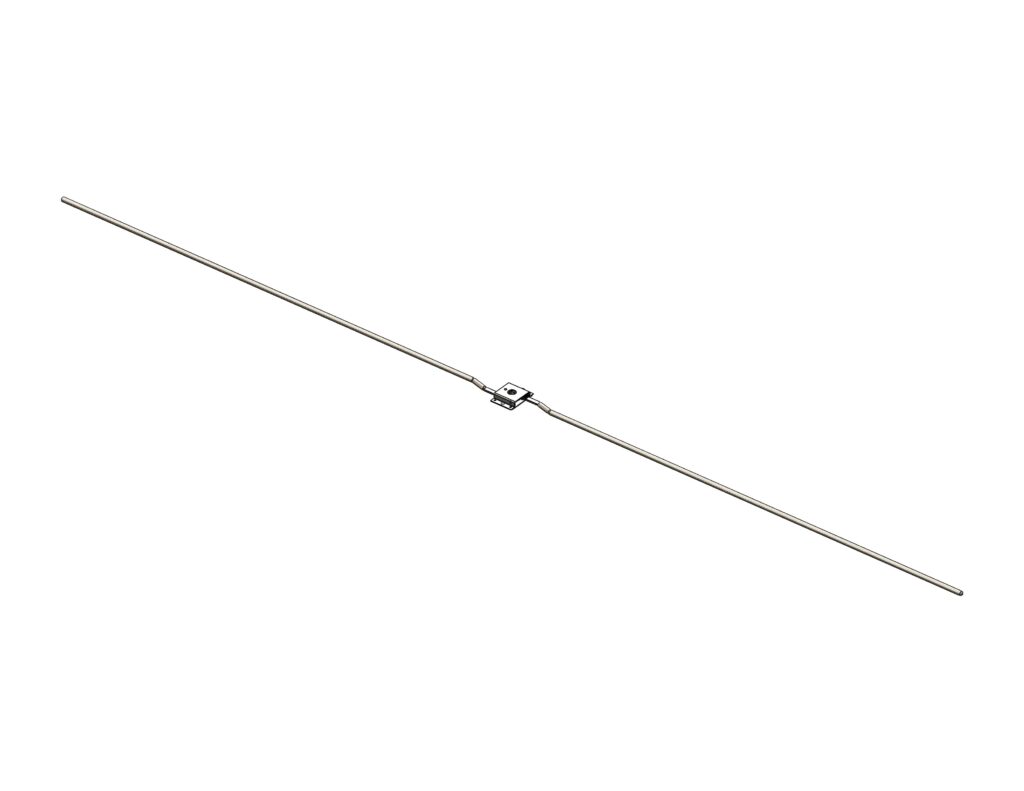

3/18794 MO	2-way latch, RH, no guides

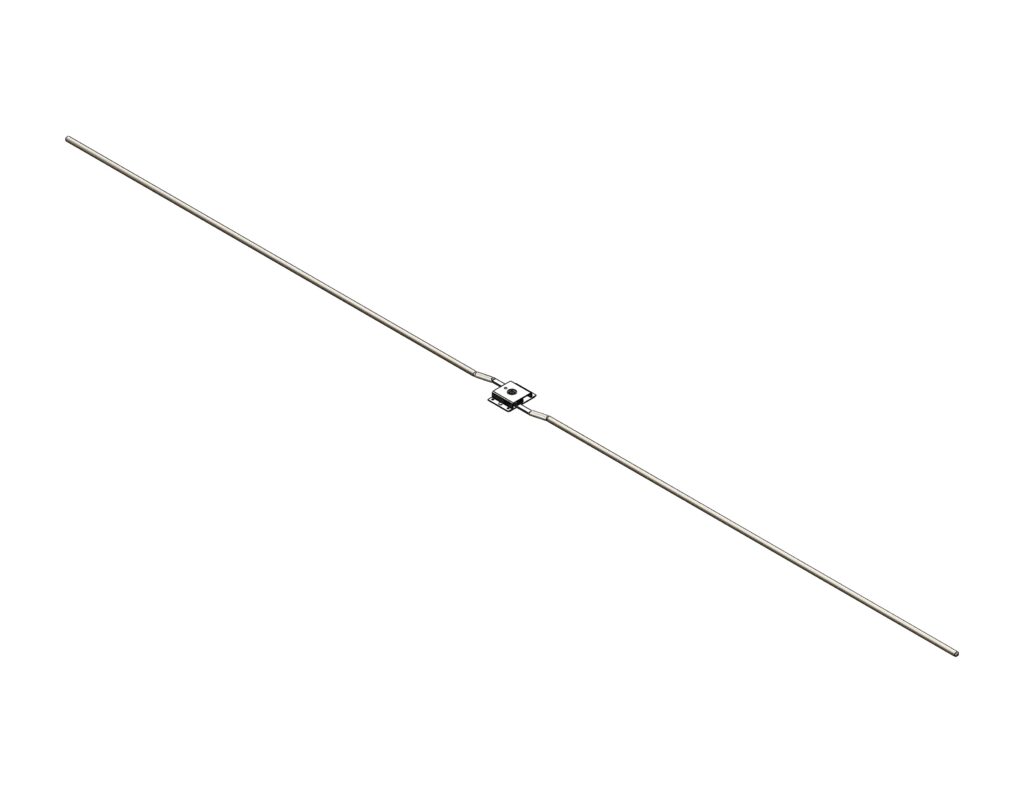

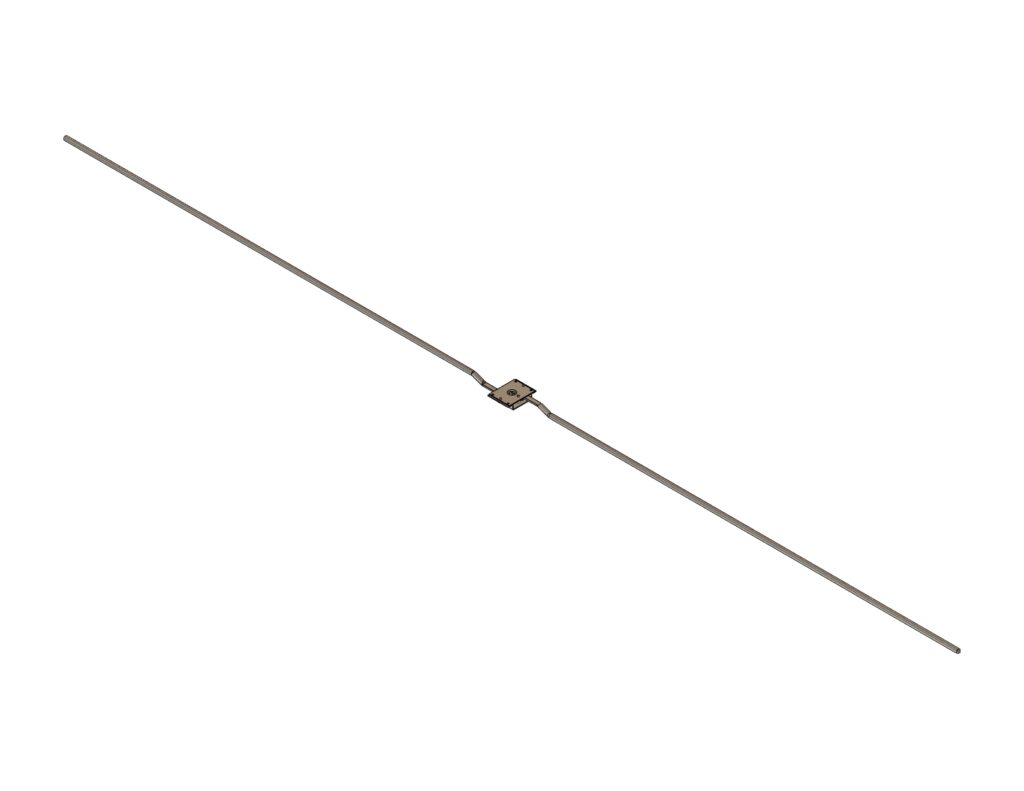

3/18795 MO	2-way latch, LH, no guides

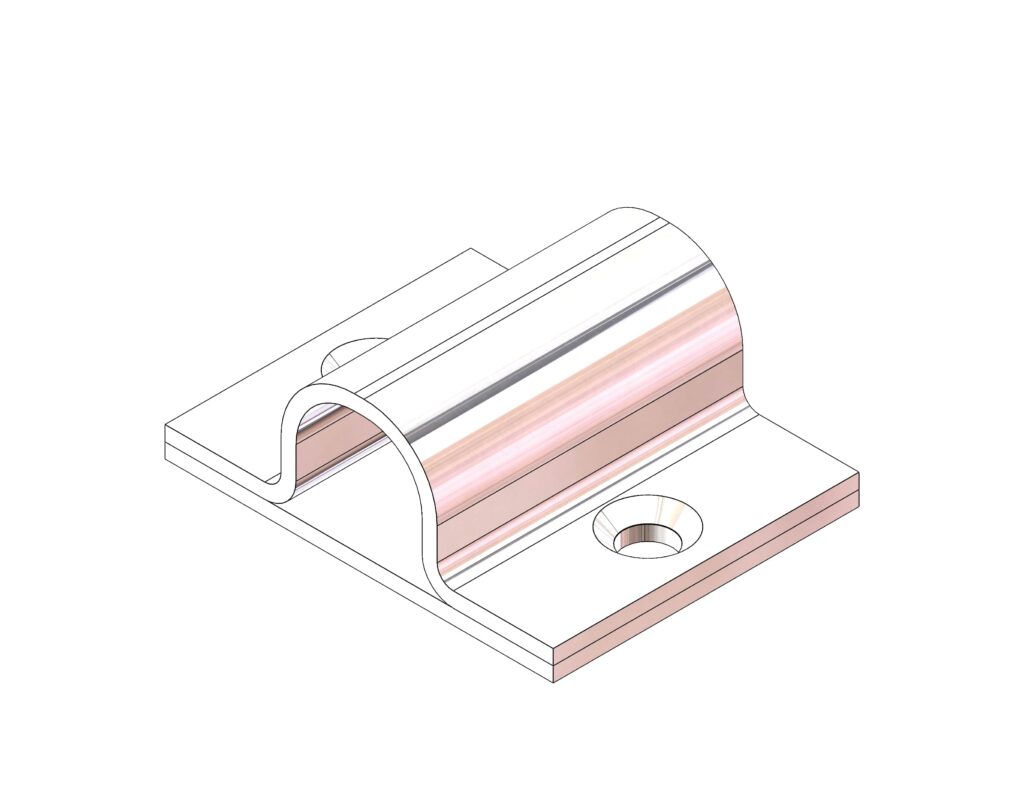

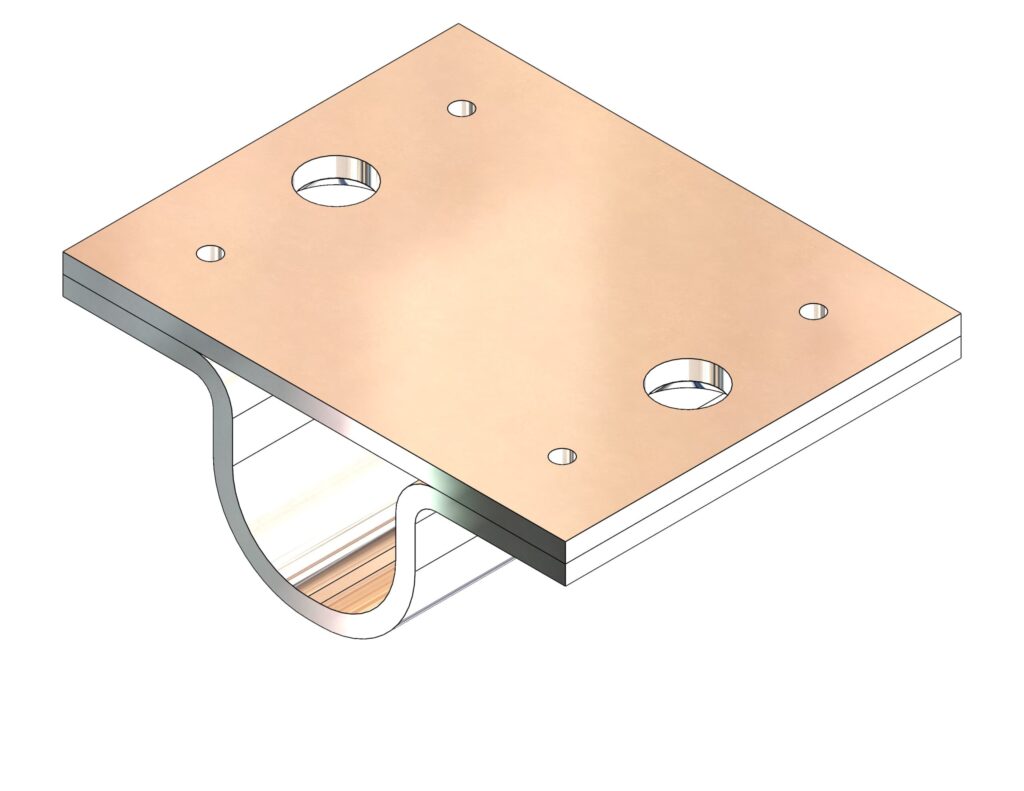

3/18899	Guide, 2-way latches

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Length of system (extended) (retracted)	2210 mm 2160 mm
B	Case length	50 mm
C	Case width	67 mm
D	Case height	14 mm
E	Hole centres (vertical)	38 mm
F	Hole centres (horizontal)	57 mm
G	Withdrawal (each end)	24 mm
H	Hole size (diameter)	4 mm
J	Guide length	25 mm
K	Hole centres	22 mm

Rod diameter 10 mm. Follow bush mounted centrally to accept 8 mm square shaft.

Close door, turn inside/outside handle (or T-key) to ‘throw’ rods past door edge. System cannot be slammed.
Centre bush rotates through 90° as shown to withdraw rods by 24 mm (each end). System is ‘handed’ by direction of rotation.
Latches are fully plant-on. Rod ends should be cut as required : guides are supplied with full system.
Zinc-plated throughout.
- Special rod lengths to order
- Permanently-attached inside handle
- ‘Male drive’ (8 mm square) spindle on inside/outside of latch.
- Case hole dimensions (F = 62 mm)
