2-Way Deadbolt Mechanism

A 2-way ‘conformity’ latch that is narrower and more completely enclosed than standard 2-way rod latches, with easily accessible points for attachments of rods or flat bars and fully in-line ‘throw’. Used for roller shutters, compartments and larger doors.
1/29624
1/29624
9/01050
9/01050
9/01051
9/01051
9/01051
9/01051
9/01454
9/01454
9/01050
9/01050

Ordering Code

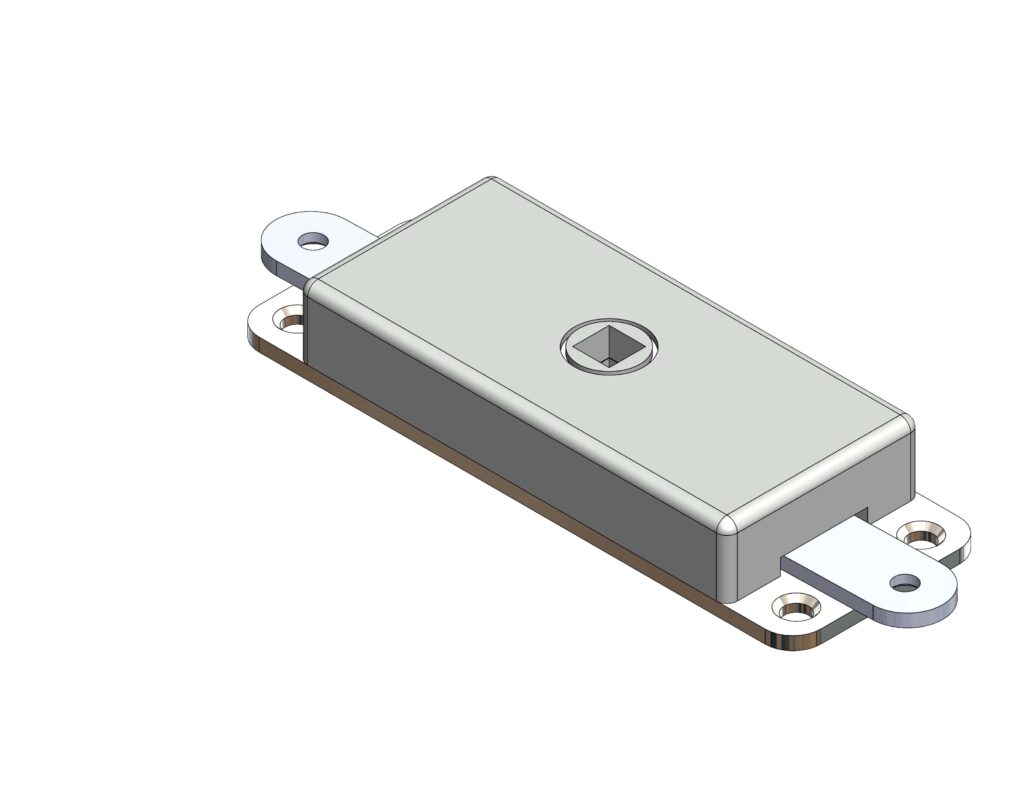

9/01050 2-way centre case only
9/01051 2-way centre c/w rods
1/29624 Rod only, 9.5mm dia. x 1100mm

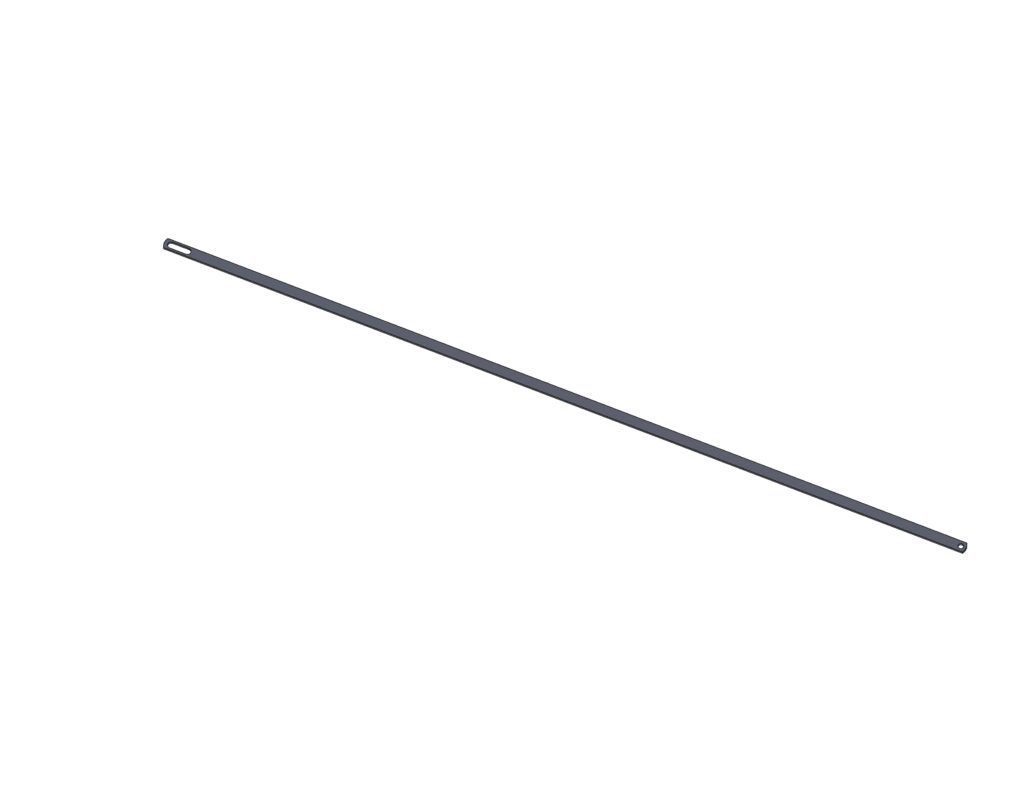

9/01454 Flat bar 13 x 3mm, length 1000mm

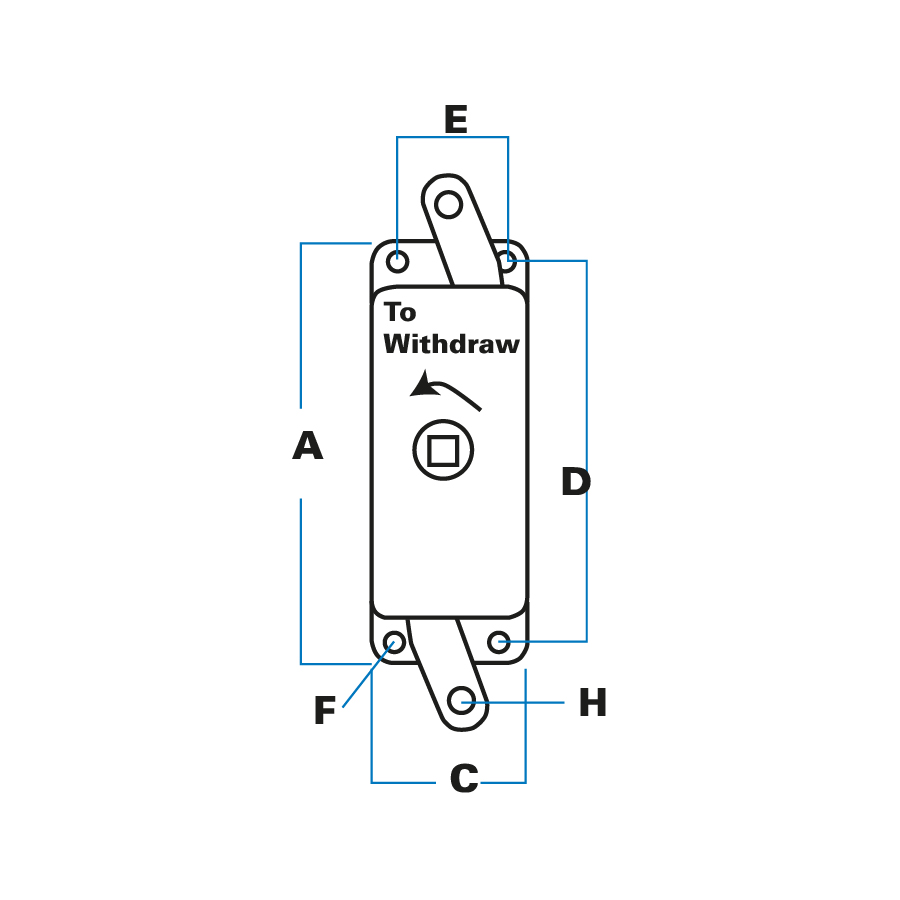

C34-Diagram 01

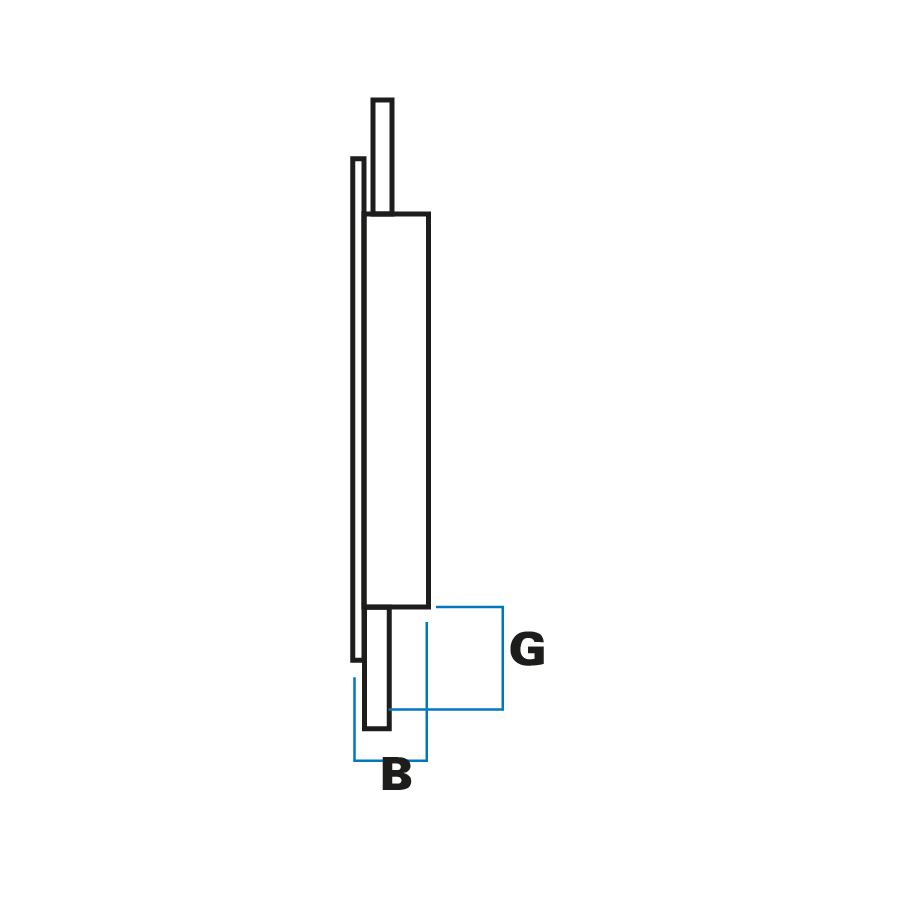

C34-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 127 mm
B Height 19 mm
C Width 45 mm
D Hole Centres 114 mm
E Hole Centres 28 mm
F Holes Sizes (Diameter), c/s 8mm 5.5 mm
G Length Of Links (extended) (withdrawn) 35 mm 20 mm
H Hole Size 7 mm
Follow bush accepts 8mm square shaft from both sides. Rotation 90° anti-clockwise to fully withdraw links. Materials: Case and follow bush, zinc diecastings. All other components are mild steel.
  • Centre bush drives links positively, no spring-return action is involved.
  • Rotation of follow-bush 90° anti-clockwise will withdraw links by 15 mm. Clockwise rotation extends links and holds them in place by over-centre action.
  • Four countersunk holes in backplate (5.5 mm, c/s 8 mm) secure unit to panel.
  • Zinc-plated as standard. Optionally case can be polished and chromium plated.
  • Full system supplied with 9.5 mm rods attached as 9/01051. Flat bars can be supplied separately or fully-attached as required. Centre case can be fitted with captive 8mm square shaft and permanently-attached inside handle.
