2/3-Way Slam Systems

These versatile systems are assembled on site from standard end-latches, together with centre case (opposite) and connecting bars. The three slam bolts act together and are withdrawn simultaneously.

Left and right-hand versions are identical apart from position of centre bolt and direction of rotation of centre follow-bush. 2-way versions do not have centre slam-bolt.

Ordering Code

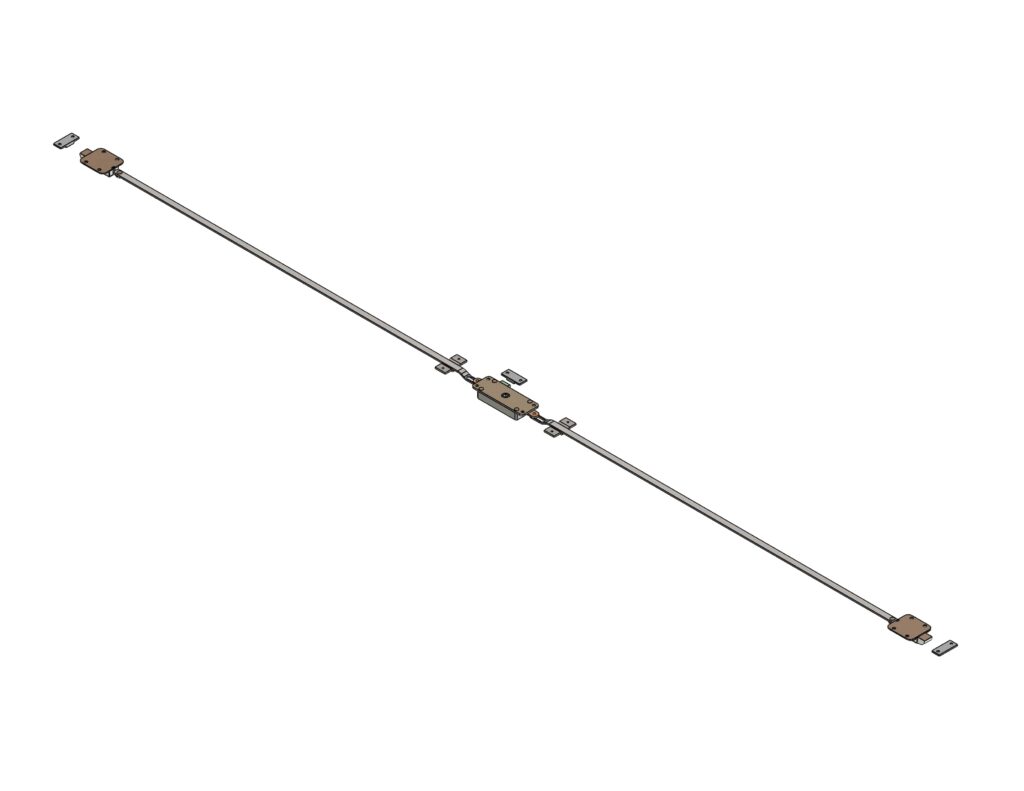

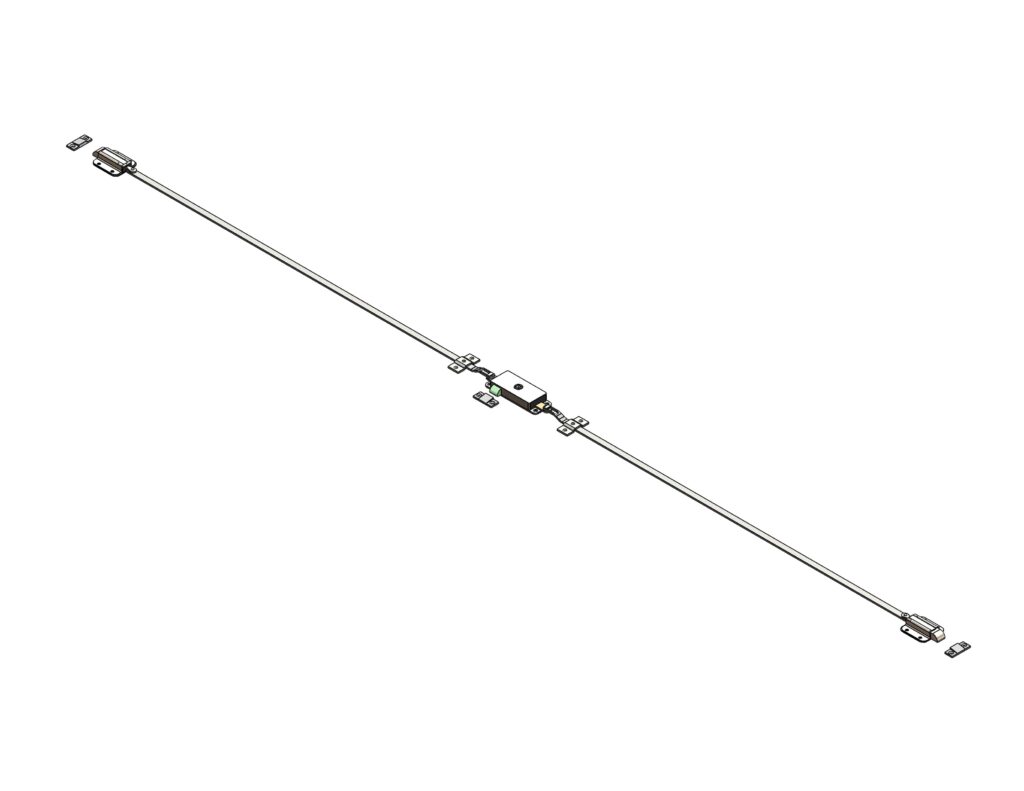

3/18341	3-way slam system, left-hand

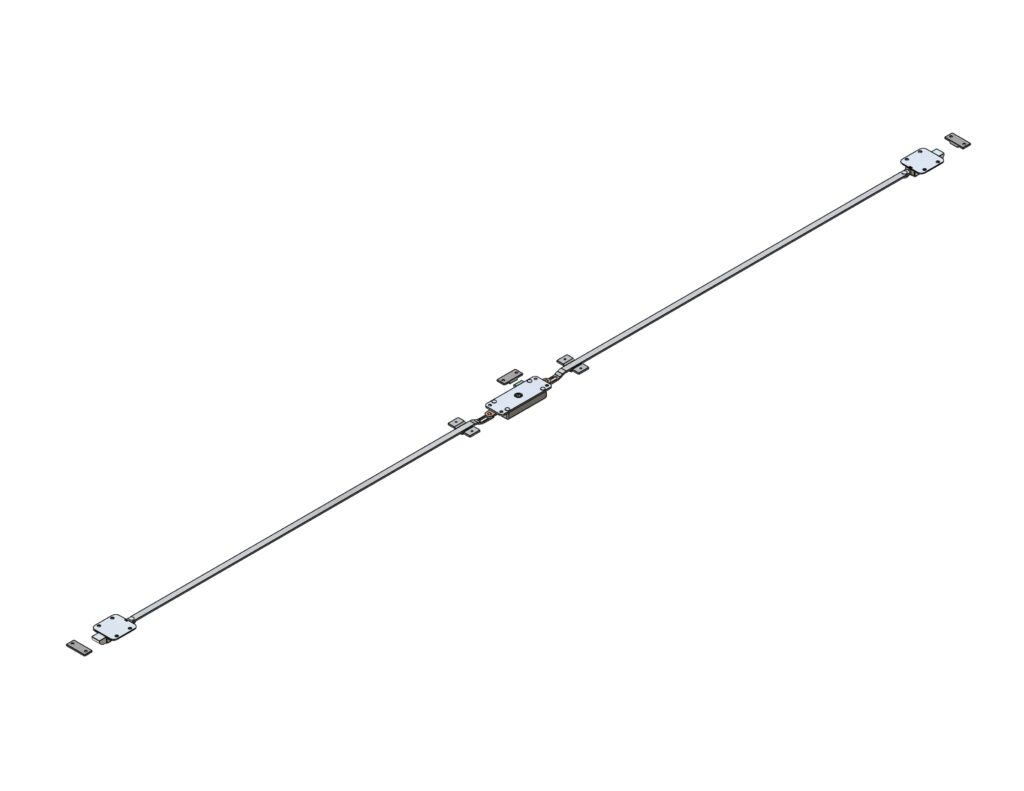

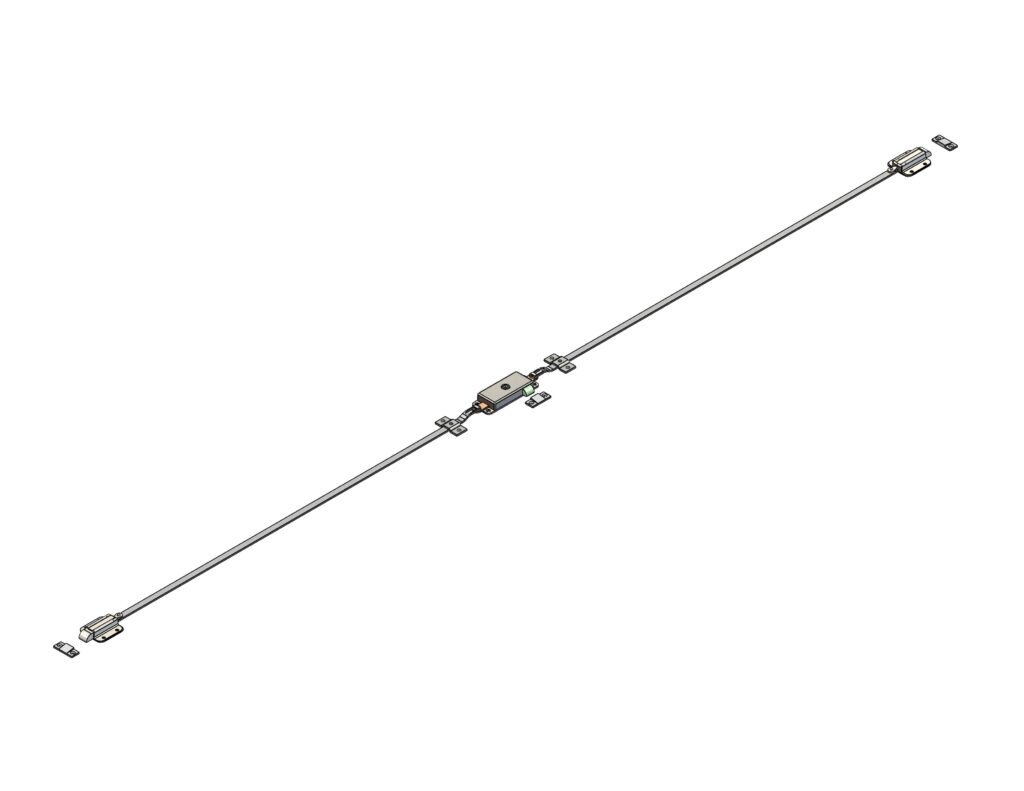

3/18342	3-way slam system, right-hand

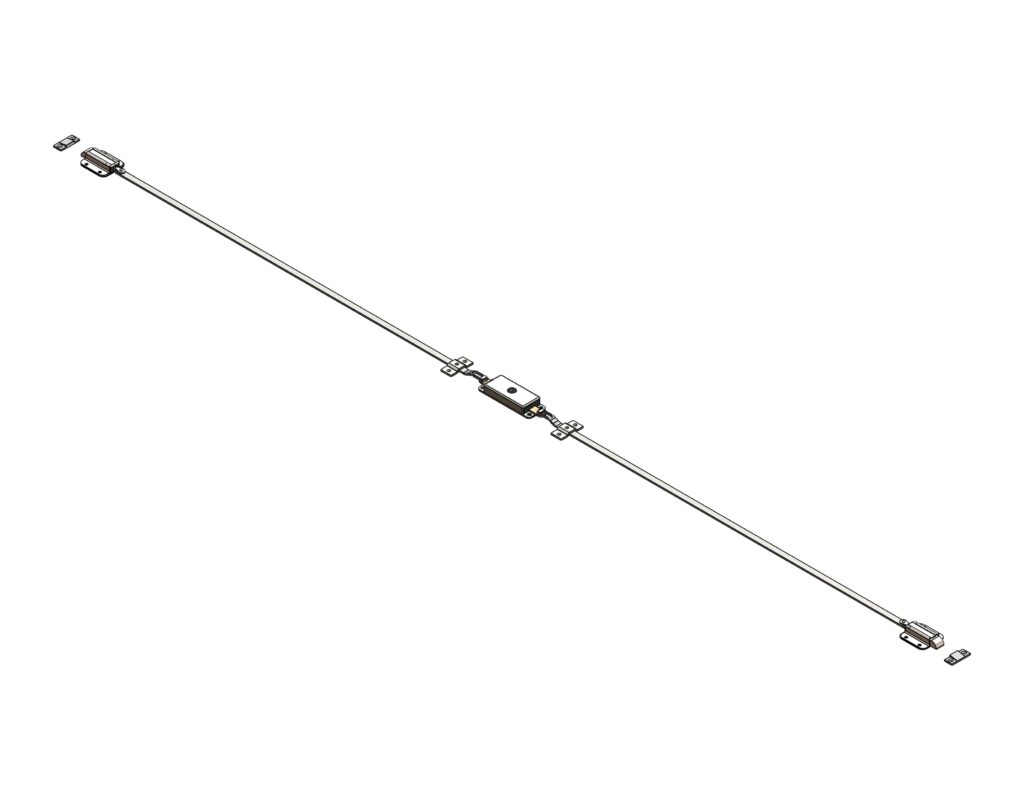

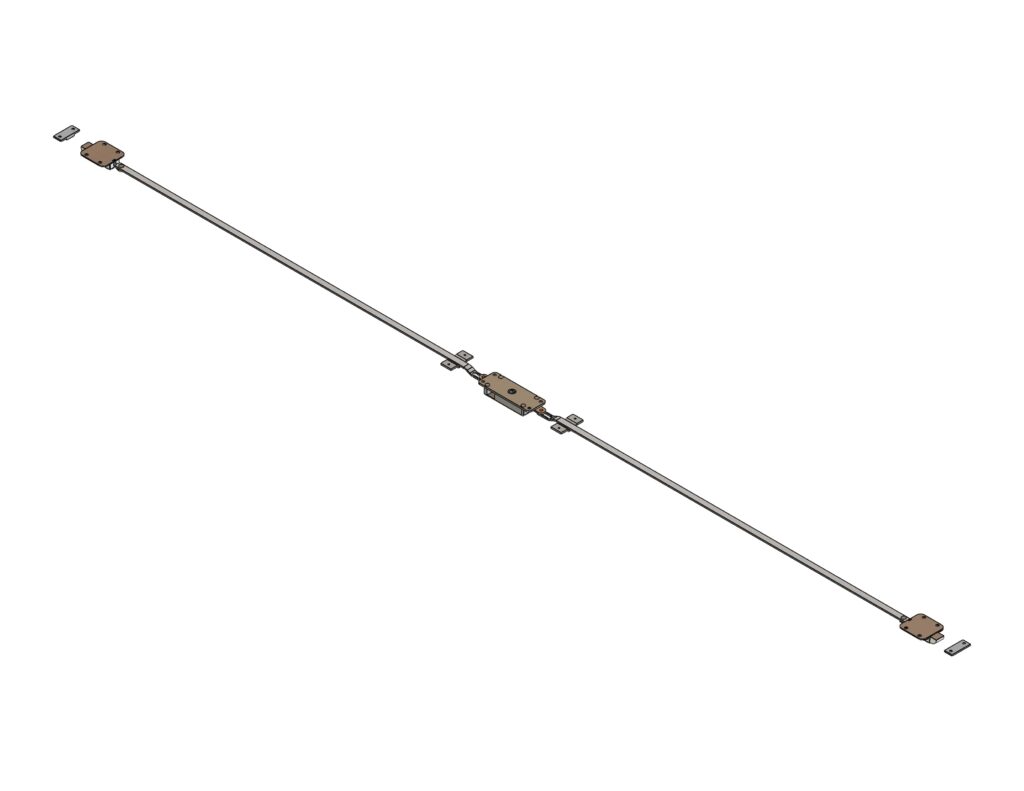

3/18343	2-way slam system, right-hand
3/18344	2-way slam system, left-hand

Normally supplied in boxed sets of 10 units. All components are provided, including guides (3/18617), strikers (3/12341), rivets (19-7) and wave washers (58-21).

C33-Diagram 02 — Right-hand unit illustrated, left-hand is identical but for position of central slam-bolt. Standard linkage bar 3/12497 used on 3-way slam system.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Max. Length of system	2057 mm
B	Guide plate width	25 mm
C	Guide hole centres	40 mm
D	Length of linkage bar	915 mm
E	Linkage bar section Cranked 5 mm (rolled edges)	12 x 3 mm
F	‘Free movement’ slot	22 mm

Centre bolt withdraws by 11 mm maximum.

System slams shut, is opened by inside/outside handle or T-key. It can be slammed even when handle is locked, due to ‘free movement’ allowed by link bars.
Rotation of centre follow-bush withdraws slam bolt fully into case, also withdraws links at each end, which operates slam latches. System is handed by position of centre-bolt and direction of operation of follow-bush.
Components are fully plant-on, with ‘quick fit’ attachment of link bars to centre case. Plain end should be cut and drilled as required: rivets and washers are supplied with kit.
Zinc-plated throughout.
